KE30R-KD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )CP,DV,HT,SED,WG

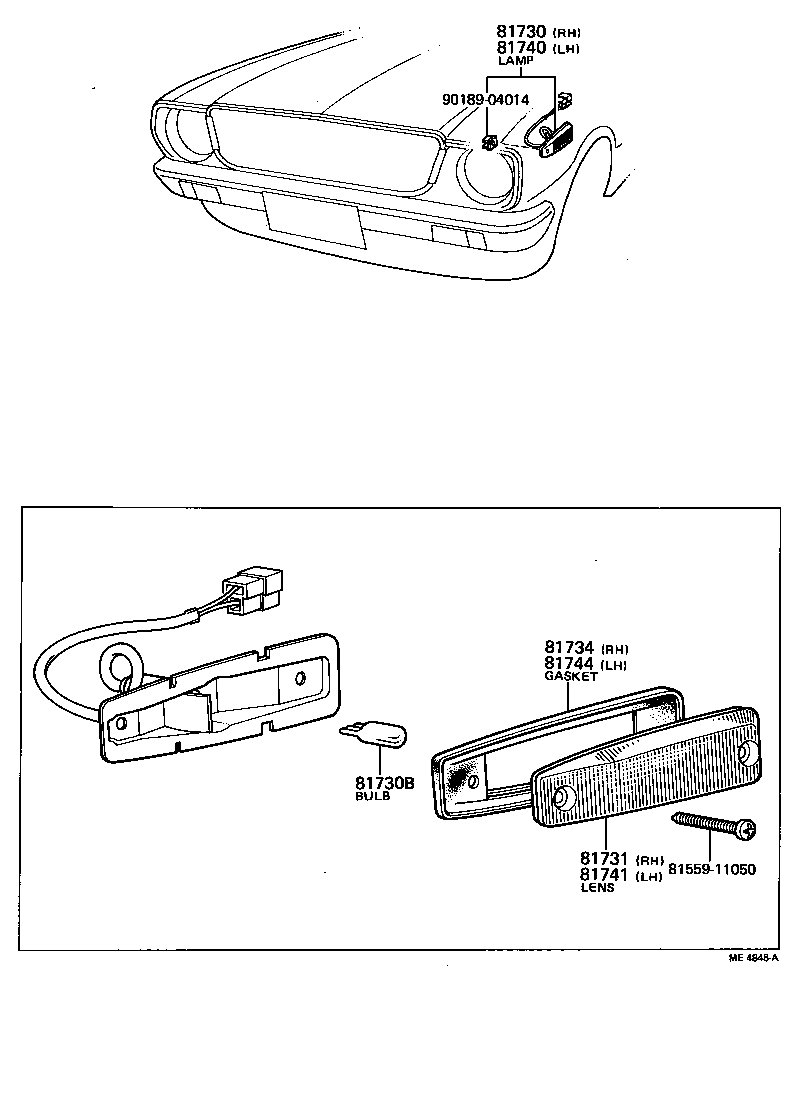

Click highlighted areas on diagram

diagram 8155911050 81730 81730B 81731 81734 81740 81741 81744 9018904014
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19215

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-12080

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81732-12080

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-19195

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-12080

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81742-12080

KE3#,55,TE3#,47..CP,DV,HT,SED,WG

 1
Common parts
81559-11050
90189-04014
