KE30R-CRFQ (1976)

Toyota Corolla/Trueno

Production Apr 1976 - May 1978
Engine 3KC
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7701- )RHD

Click highlighted areas on diagram

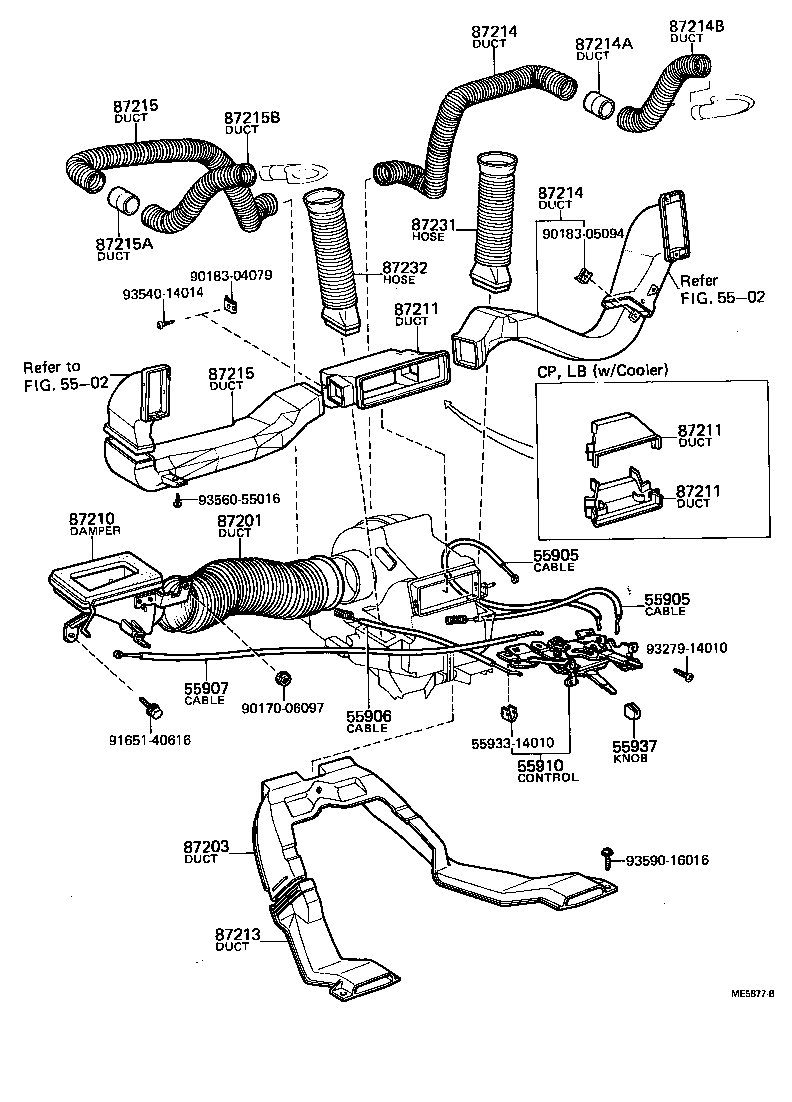

diagram 5502 5502 55905 55905 55906 55907 55910 5593314010 55937 87201 87203 87210 87211 87211 87211 87213 87214 87214 87214A 87214B 87215 87215 87215A 87215B 87231 87232 9017006097 9018304079 9018305094 9165140616 9327914010 9354014014 9356055016 9359016016
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55909-12040

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

BOOST VENTILATOR DUMPER

 1
55906-12040

TE3#;KE3#..ARL,EUR,GEN

DEFROSTER DUMPER

 1
55909-12040

KE3#,50,TE3#,47,51..RHD

BOOST VENTILATOR DUMPER

 1
55906-12040

KE3#,TE3#

DEFROSTER DUMPER

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55909-12040

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

BOOST VENTILATOR DUMPER

 1
55906-12040

TE3#;KE3#..ARL,EUR,GEN

DEFROSTER DUMPER

 1
55909-12040

KE3#,50,TE3#,47,51..RHD

BOOST VENTILATOR DUMPER

 1
55906-12040

KE3#,TE3#

DEFROSTER DUMPER

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-12010

KE3#,TE3#..RHD

 1
55907-12010

KE30,35,TE3#..RHD;KE36..RHD..(ARL,GEN)

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-12040

KE30,35,TE3#..RHD;KE36..RHD..(ARL,GEN)

 1
55908-12040

KE3#,TE3#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12922

KE30,35,TE3#..RHD;KE36..RHD..(ARL,GEN)

 1
55910-12922

KE3#,TE3#..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12040

TE3#;KE3#,50,TE47,51..ARL,EUR,GEN

 2
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-12010

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

 1
87210 - DAMPER ASSY, AIR
87210-12010

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-12050

KE3#,50,TE3#,47,51

 1
87231-12050

TE3#;KE3#,50,TE47,51..ARL,EUR,GEN

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-12050

TE3#;KE3#,50,TE47,51..ARL,EUR,GEN

 1
87231-12050

KE3#,50,TE3#,47,51

 1
Common parts
55933-14010
90170-06097
90183-04079
90183-05094
91651-40616
93279-14010
93540-14014
93560-55016
93590-16016
