Toyota Corolla/trueno KE30 HEATING & AIR CONDITIONING - COOLER UNIT

KE30R-CDFW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979

Engine 3KH

Transmission 2FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

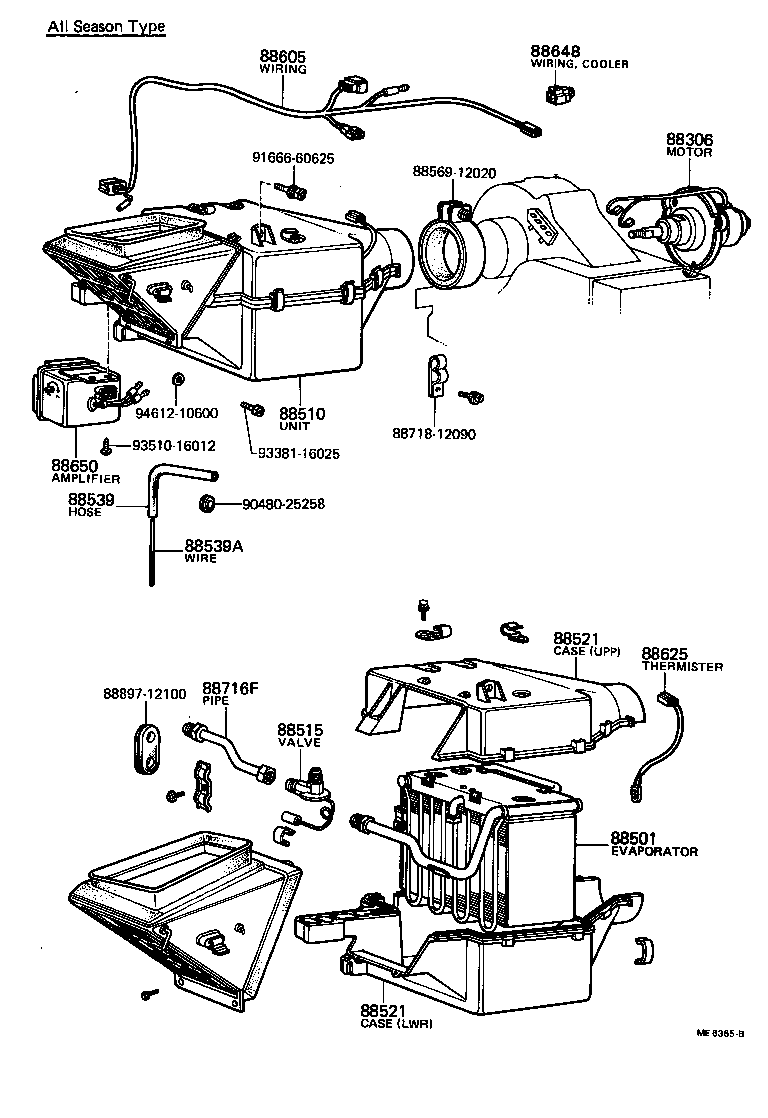

Click highlighted areas on diagram

Part #	Description	Period	Qty
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12070	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88550-12070	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12052	KE3#,50..RHD	01/1977 - 09/1977	1
88501-12081	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88510 - UNIT ASSY, COOLER
88510-12082	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88510-12055	KE3#,50..RHD	01/1977 - 09/1977	1
88515 - VALVE, COOLER EXPANSION
88515-12050	KE3#,50..RHD	01/1977 - 09/1977	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12020	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88539A - WIRE, DRAIN HOSE(FOR COOLER)
88895-12020	KE3#,50..RHD	01/1977 - 08/1977	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12130	KE3#,50,TE47..RHD (A)	09/1977 - 05/1978	1
88605-12052	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88625 - THERMISTOR, COOLER, NO.1
88625-12020	KE3#,50..RHD	01/1977 - 09/1977	1
88648 - WIRING, COOLER, NO.1
82550-20020	KE30,35,36..RHD	05/1978 - 08/1979	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22040	KE3#,50..RHD	01/1977 - 09/1977	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12360	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
Common parts
88569-12020
88718-12090
88897-12100
90480-25258
91666-60625
93381-16025
93510-16012
94612-10600

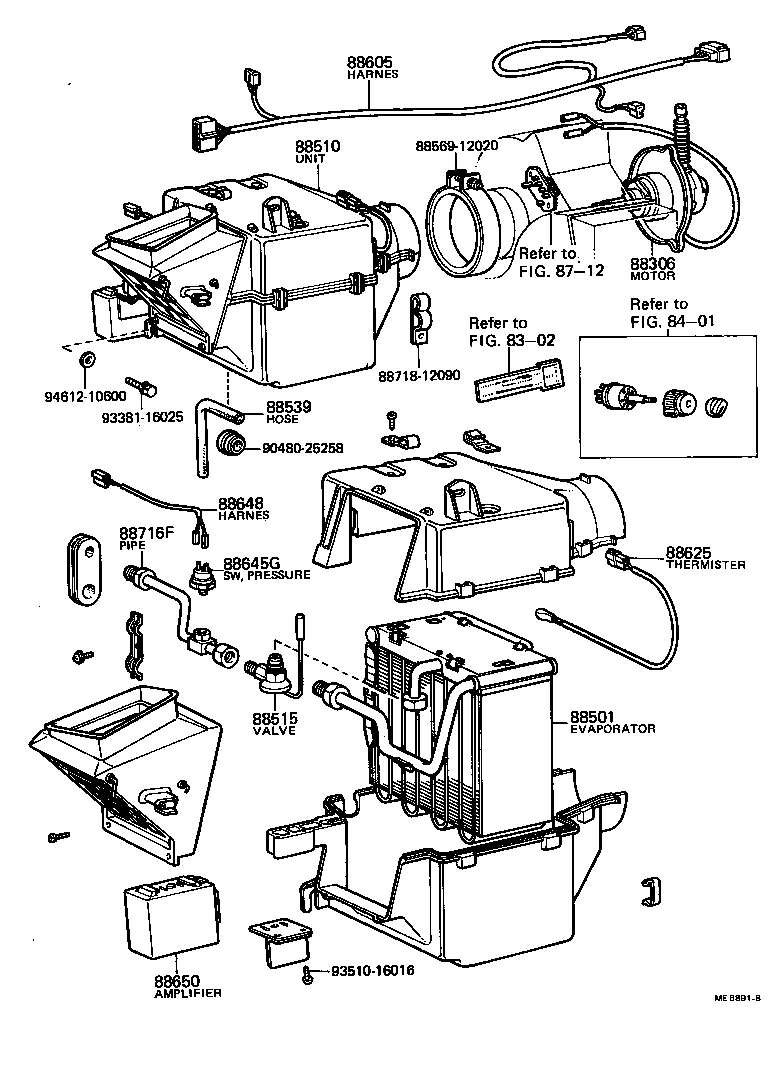

Click highlighted areas on diagram

Part #	Description	Period	Qty
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12070	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88550-12070	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12052	KE3#,50..RHD	01/1977 - 09/1977	1
88501-12081	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88510 - UNIT ASSY, COOLER
88510-12082	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88510-12055	KE3#,50..RHD	01/1977 - 09/1977	1
88515 - VALVE, COOLER EXPANSION
88515-12050	KE3#,50..RHD	01/1977 - 09/1977	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12020	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12130	KE3#,50,TE47..RHD (A)	09/1977 - 05/1978	1
88605-12052	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88625 - THERMISTOR, COOLER, NO.1
88625-12020	KE3#,50..RHD	01/1977 - 09/1977	1
88648 - WIRING, COOLER, NO.1
82550-20020	KE30,35,36..RHD	05/1978 - 08/1979	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22040	KE3#,50..RHD	01/1977 - 09/1977	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12360	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
Common parts
88569-12020
88718-12090
90480-25258
93381-16025
93510-16016
94612-10600
Linked diagrams
8302
8401
8712
