KE30R-CDFW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7811-7908)SED

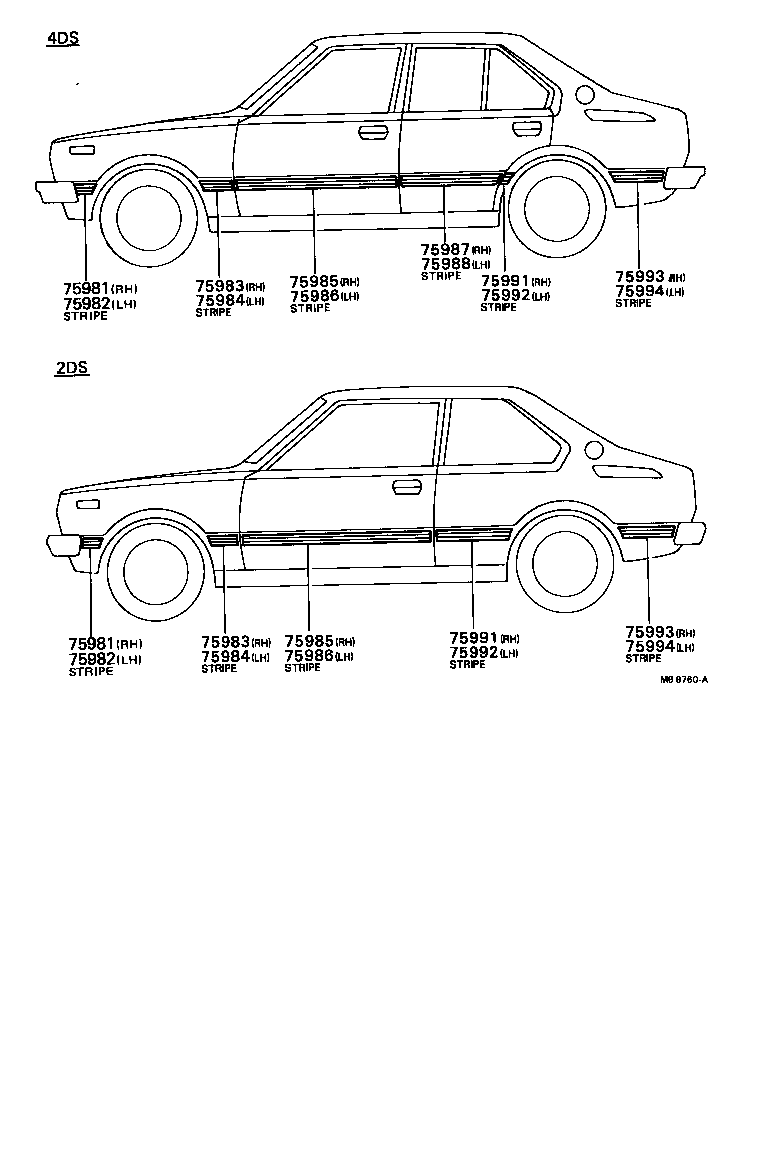

Click highlighted areas on diagram

diagram 75981 75981 75982 75982 75983 75983 75984 75984 75985 75985 75986 75986 75987 75988 75991 75991 75992 75992 75993 75993 75994 75994
Part # Description Qty Price
75981 - STRIPE, FRONT FENDER, RH NO.1
75981-12200

KE30..DLX..EUR

 1
75981 - STRIPE, FRONT FENDER, RH NO.1
75981-12200

KE30..DLX..EUR

 1
75982 - STRIPE, FRONT FENDER, LH NO.1
75982-12200

KE30..DLX..EUR

 1
75982 - STRIPE, FRONT FENDER, LH NO.1
75982-12200

KE30..DLX..EUR

 1
75983 - STRIPE, FRONT FENDER, RH NO.2
75983-12130

KE30..DLX..EUR

 1
75983 - STRIPE, FRONT FENDER, RH NO.2
75983-12130

KE30..DLX..EUR

 1
75984 - STRIPE, FRONT FENDER, LH NO.2
75984-12130

KE30..DLX..EUR

 1
75984 - STRIPE, FRONT FENDER, LH NO.2
75984-12130

KE30..DLX..EUR

 1
75985 - STRIPE, FRONT DOOR, RH
75985-12120

KE30..4D..DLX..EUR

 1
75985 - STRIPE, FRONT DOOR, RH
75985-12120

KE30..4D..DLX..EUR

 1
75986 - STRIPE, FRONT DOOR, LH
75986-12120

KE30..4D..DLX..EUR

 1
75986 - STRIPE, FRONT DOOR, LH
75986-12120

KE30..4D..DLX..EUR

 1
75987 - STRIPE, REAR DOOR, RH
75987-12060

KE30..4D..DLX..EUR

 1
75988 - STRIPE, REAR DOOR, LH
75988-12060

KE30..4D..DLX..EUR

 1
75991 - STRIPE, QUARTER, RH NO.1
75991-12140

KE30..4D..DLX..EUR

 1
75991 - STRIPE, QUARTER, RH NO.1
75991-12140

KE30..4D..DLX..EUR

 1
75992 - STRIPE, QUARTER, LH NO.1
75992-12130

KE30..4D..DLX..EUR

 1
75992 - STRIPE, QUARTER, LH NO.1
75992-12130

KE30..4D..DLX..EUR

 1
75993 - STRIPE, QUARTER, RH NO.2
75993-12070

KE30..DLX..EUR

 1
75993 - STRIPE, QUARTER, RH NO.2
75993-12070

KE30..DLX..EUR

 1
75994 - STRIPE, QUARTER, LH NO.2
75994-12070

KE30..DLX..EUR

 1
75994 - STRIPE, QUARTER, LH NO.2
75994-12070

KE30..DLX..EUR

 1
