KE30R-CDFW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7701-7908)EUR

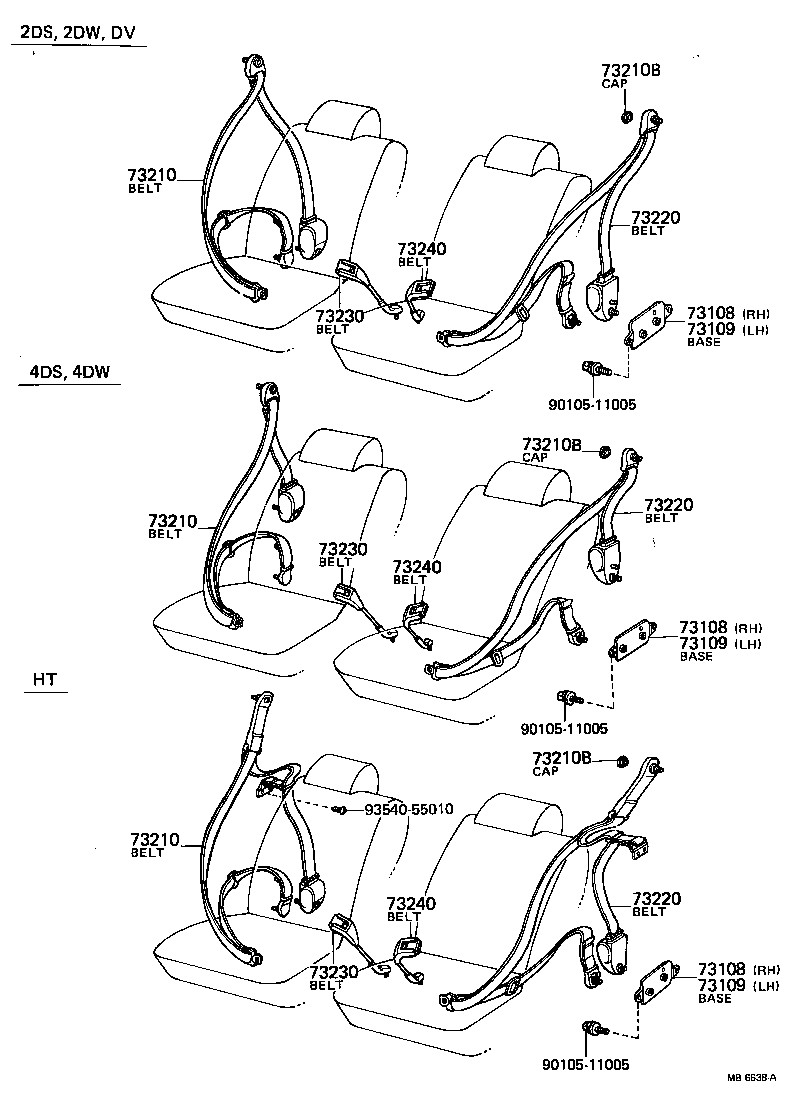

Click highlighted areas on diagram

diagram 73108 73108 73108 73109 73109 73109 73210 73210 73210 73210B 73210B 73210B 73220 73220 73220 73230 73230 73230 73240 73240 73240 9010511005 9010511005 9010511005 9354055010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1211006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1211001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73210-1213006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1213001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1211006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1211001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73210-1213006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1213001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1211006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1211001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73210-1213006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1213001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201015

KE3#,5#,TE47,51..ARL,EUR,GEN

BEIGE,BEIGE,TRIM4#

 2
73178-1201011

KE3#,5#,TE47,51..ARL,EUR,GEN

BLACK,BLACK,TRIM2#,8#

 2
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201015

KE3#,5#,TE47,51..ARL,EUR,GEN

BEIGE,BEIGE,TRIM4#

 2
73178-1201011

KE3#,5#,TE47,51..ARL,EUR,GEN

BLACK,BLACK,TRIM2#,8#

 2
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201015

KE3#,5#,TE47,51..ARL,EUR,GEN

BEIGE,BEIGE,TRIM4#

 2
73178-1201011

KE3#,5#,TE47,51..ARL,EUR,GEN

BLACK,BLACK,TRIM2#,8#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73220-1206006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1208001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73220-1208006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1206001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73220-1206006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1208001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73220-1208006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1206001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73220-1206006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1208001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73220-1208006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1206001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1207001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73230-1207006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1207001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73230-1207006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1207001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73230-1207006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1202006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240-1202001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1202006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240-1202001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1202006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240-1202001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
Common parts
90105-11005
93540-55010

(7701-7908)EUR

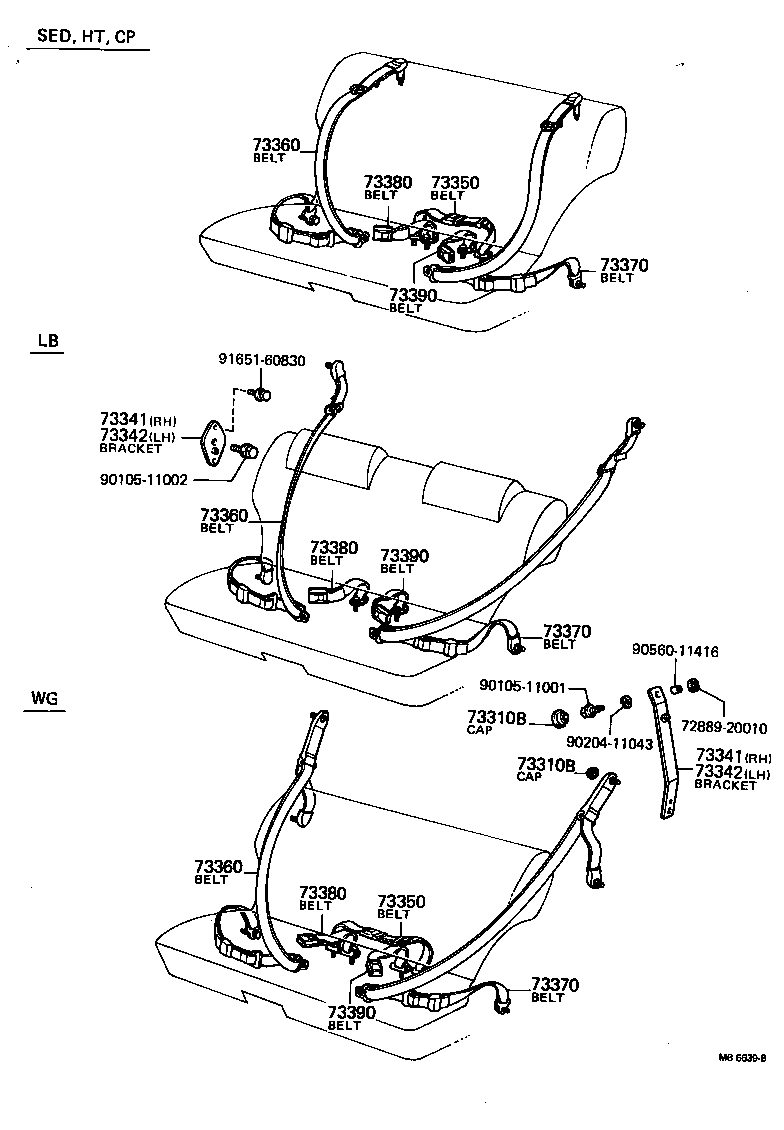

Click highlighted areas on diagram

diagram 7288920010 73310B 73310B 73341 73341 73342 73342 73350 73350 73360 73360 73360 73370 73370 73370 73380 73380 73380 73390 73390 73390 9010511001 9010511002 9020411043 9056011416 9165160830
Part # Description Qty Price
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-1204001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73360-1204006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1203006

KE30,35,50,TE47,51..EUG

LIGHT BROWN,BROWN,TRIM4#

 1
73380-1203001

KE30,35,50,TE47,51..EUG

BLACK,BLACK,TRIM2#,8#

 1
Common parts
72889-20010
90105-11001
90105-11002
90204-11043
90560-11416
91651-60830

(7903-7908)EUR

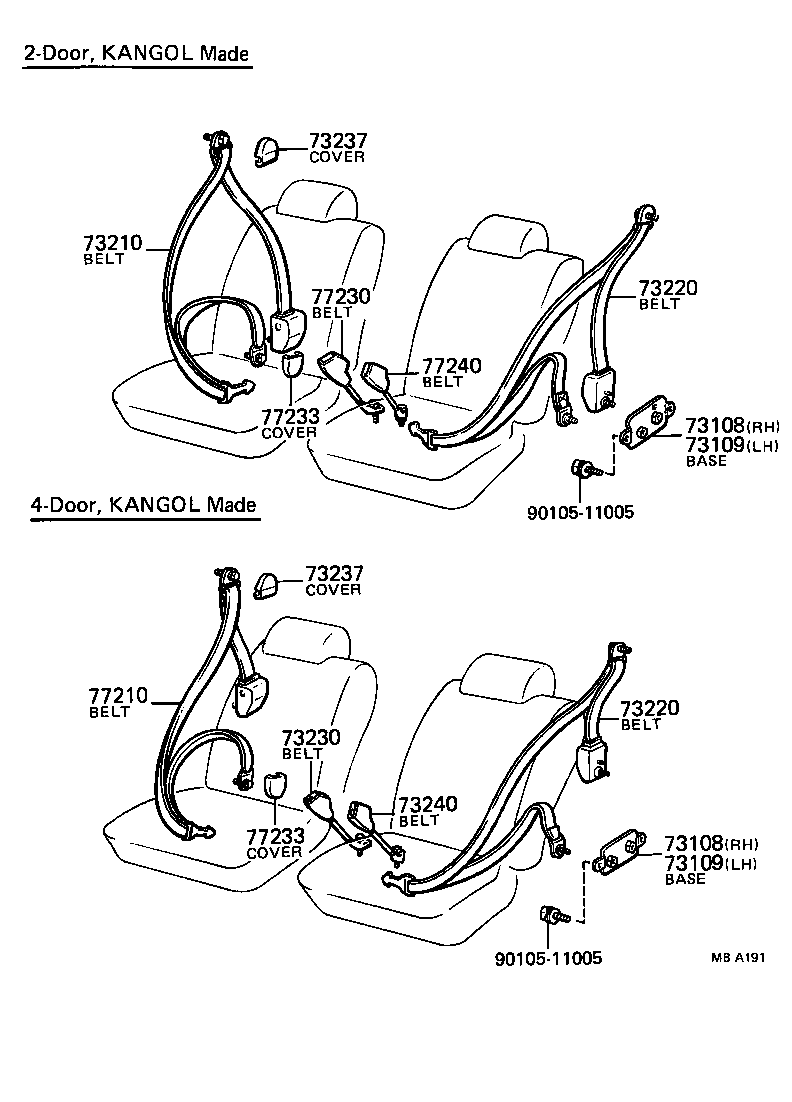

Click highlighted areas on diagram

diagram 73108 73108 73109 73109 73210 73220 73220 73230 73237 73237 73240 77210 77230 77233 77233 77240 9010511005 9010511005
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1211006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1211001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73210-1213006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1213001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73220-1206006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1208001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73220-1208006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1206001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1218001

KE30,36..4D..(EUR,GEN)

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73220-1206006

KE30,36..4D

TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1218006

KE30,36..4D..(EUR,GEN)

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1208001

KE30,36..4D

TOKAI RIKA,BLACK,BLACK,TRIM2#,8#

 1
73220-1208006

KE30,36..4D

TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1206001

KE30,36..4D

TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1207001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
73230-1207006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1202006

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,LIGHT BROWN,BROWN,TRIM4#

 1
73240-1202001

KE30,35,36,50,TE47,51..EUR,GEN

W/*ELR,BLACK,BLACK,TRIM2#,8#

 1
Common parts
90105-11005
