KE30R-CDFW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)A20

Click highlighted areas on diagram

diagram 3513 35508 35508A 35508A 35508C 35568F 35568G 35569F 35577 9020608016 9020608016 9020608016 9451201000 9461210800 9461210800 9461210800 9461210800 9461210800 9461210800 9461211000 9461211000 9538102020 9538102020 9538102020 9538102020
Part # Description Qty Price

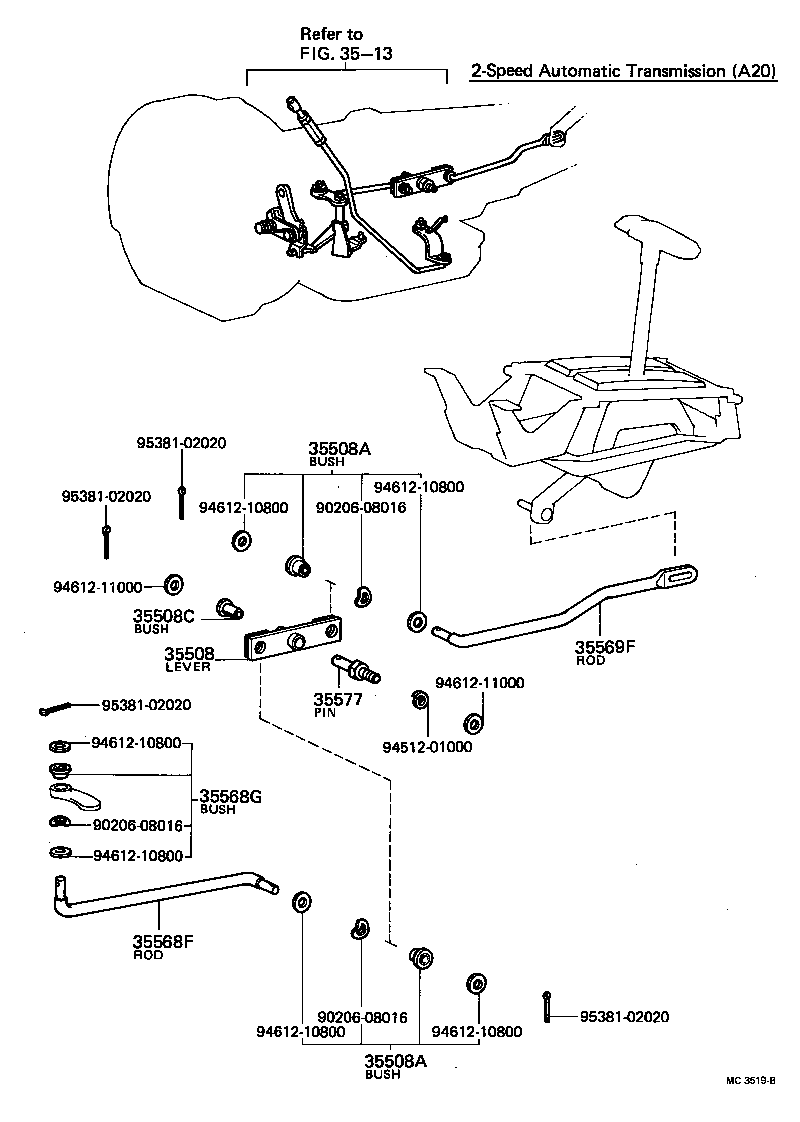

35508 - LEVER SUB-ASSY, CONTROL ROD JOINT
35508-12020

KE30,35..A20

 1
35508A - BUSH (FOR CONTROL ROD JOINT LEVER)
90999-99001

KE30,35..A20

 2
35508A - BUSH (FOR CONTROL ROD JOINT LEVER)
90999-99001

KE30,35..A20

 2
35508C - BUSH (FOR CONTROL ROD JOINT LEVER PIN)
90386-10011

KE30,35..A20

 1
35568F - ROD, SHIFTING, 2ND
35568-12010

KE30,35..A20

 1
35568G - BUSH (FOR SHIFTING ROD, 2ND)
90999-99001

KE30,35..A20

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
35569-12040

KE30,35..A20

 1
35569-12030

KE30,35..A20

 1
35577 - PIN, CONTROL ROD JOINT LEVER
35577-12010

KE30,35..A20

 1
Common parts
90206-08016
94512-01000
94612-10800
94612-11000
95381-02020
Linked diagrams
3513

(7701-7908)A20

Click highlighted areas on diagram

diagram 33501F 33501G 33501G 33504A 33504F 33522F 33530F 33550 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723J 35921 35971 35974 35975 8302 9017908146 9020105580 9161140614 9331915012 9412040800 9412040800 9451200800 9461210800
Part # Description Qty Price

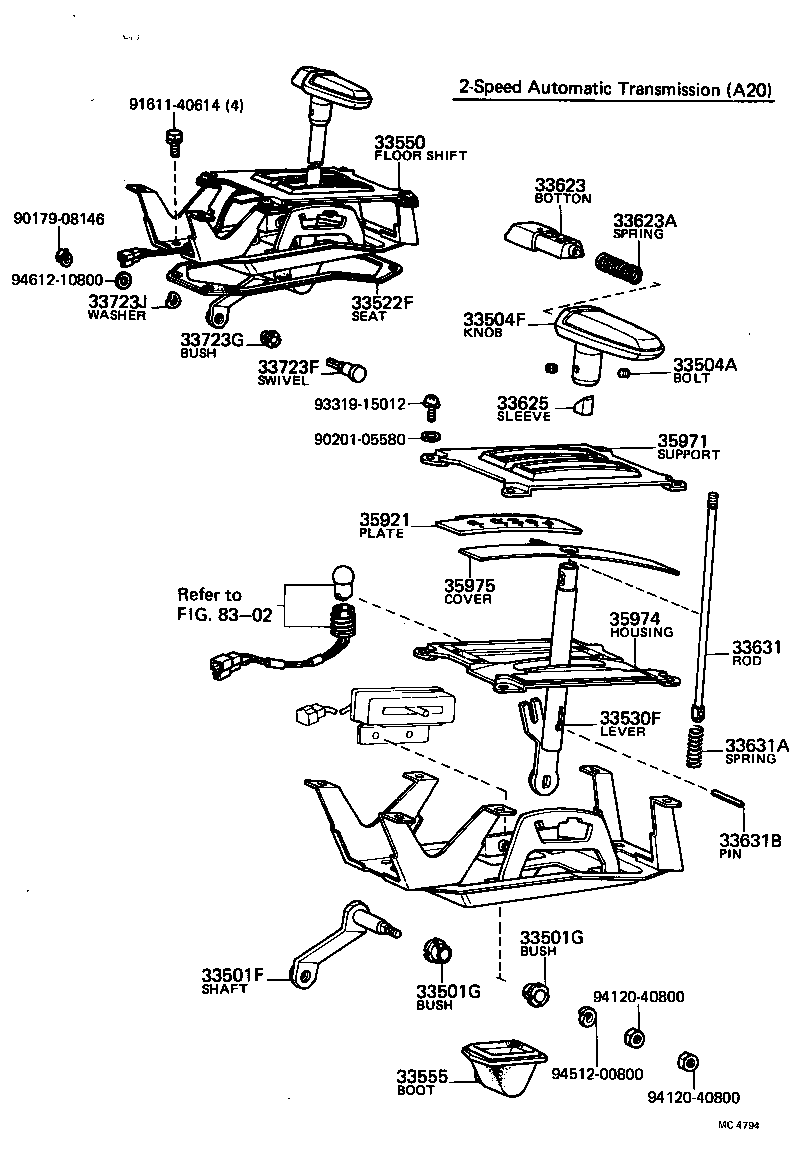

33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-12071

KE30,35..A20

 1
33501-12070

KE30,35..A20

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

KE30,35,TE31,51..ATM

T=2.3

 2
90385-12043

KE30,35,TE31,51..ATM

T=2.0

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

KE30,35,TE31,51..ATM

T=2.3

 2
90385-12043

KE30,35,TE31,51..ATM

T=2.0

 2
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

KE30,35,TE31,51..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12071

KE30,35,TE31,51..ATM

 1
33542-12070

KE30,35,TE31,51..ATM

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-12040

KE30,35,TE31,51..ATM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-12060

KE30,35..RHD..A20

 1
33503-12061

KE30,35..RHD..A20

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-12070

KE30,35..RHD..A20

 1
33550-12071

KE30,35..RHD..A20

 1
33555 - BOOT, SHIFT LEVER
33555-12060

KE30,35,TE31,51..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12030

KE30,35,TE31,51..ATM

 1
33631 - ROD, DETENT
33631-12040

KE30,35,TE31,51..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-10564

KE30,35,TE31,51..ATM

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90254-02030

KE30,35,TE31,51..ATM

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-30030

KE30,35..A20

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-12101

KE30,35..A20

 1
33723J - WASHER, WAVE (FOR FLOOR SHIFT CONTROL ROD SETTING)
90206-12013

KE30,35..A20

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12061

KE30,35..RHD..A20

 1
35921-12060

KE30,35..RHD..A20

 1
35971 - SUPPORT, POSITION INDICATOR
35971-12040

KE30,35,TE31,51..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12030

KE30,35,TE31,51..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12050

KE30,35,TE31,51..RHD..ATM

 1
Common parts
90179-08146
90201-05580
91611-40614
93319-15012
94120-40800
94512-00800
94612-10800
Linked diagrams
8302
