KE30R-CDF (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )4D

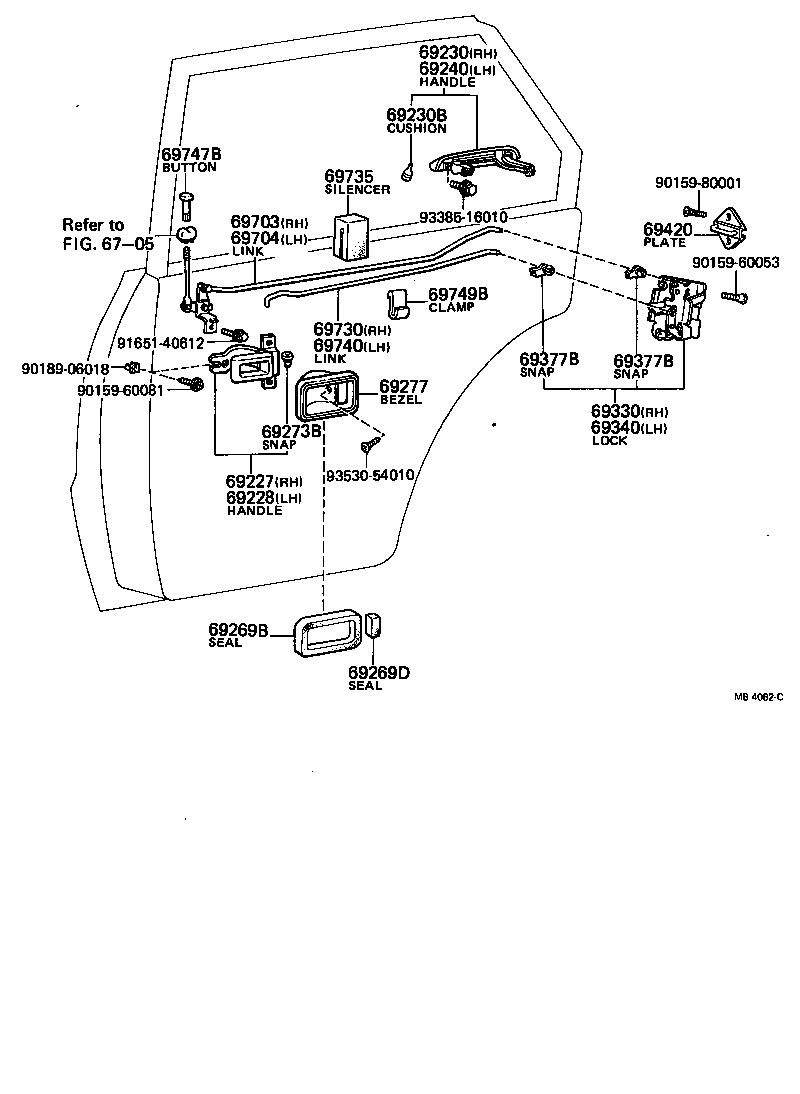

Click highlighted areas on diagram

diagram 6705 69227 69228 69230 69230B 69240 69269B 69269D 69273B 69277 69330 69340 69377B 69377B 69420 69703 69704 69730 69735 69740 69747B 69749B 9015960053 9015960081 9015980001 9018906018 9165140612 9338516010 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69207-10010

KE30,36,TE31..4D

 1
69205-1204006

KE30,36,TE31..4D

BROWN,BROWN,TRIM0#,4#

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69208-10010

KE30,36,TE31..4D

 1
69206-1204006

KE30,36,TE31..4D

BROWN,BROWN,TRIM0#,4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-12030

KE30,36,38,55,TE31..4D

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

KE30,36,38,55,TE31..4D

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-12030

KE30,36,38,55,TE31..4D

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69276-1001206

KE30,36,TE31..4D

BROWN,BROWN,TRIM0#,4#

 2
69276-10012

KE30,36,TE31..4D

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-20040

KE30,36,TE31..4D

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-20040

KE30,36,TE31..4D

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20050

KE30,36,38,55,TE31..4D

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69730-12030

KE30,36,38,55,TE31..4D

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69740-12030

KE30,36,38,55,TE31..4D

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-12010

KE30,36,38,55,TE31..4D

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-12011

KE30,36,38,55,TE31..4D

 2
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-12020

KE30,36,38,55,TE31..4D

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69747-30012

KE30,36,TE31..4D

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

KE30,36,38,55,TE31..4D

 2
Common parts
90159-60053
90159-60081
90159-80001
90189-06018
91651-40612
93385-16010
93530-54010
Linked diagrams
6705
