KE30R-CDF (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7807)KE30..RHD..GEN ; (7408-7807)KE36..RHD..GEN,SA ; (7807- )KE30,36..RHD.

Click highlighted areas on diagram

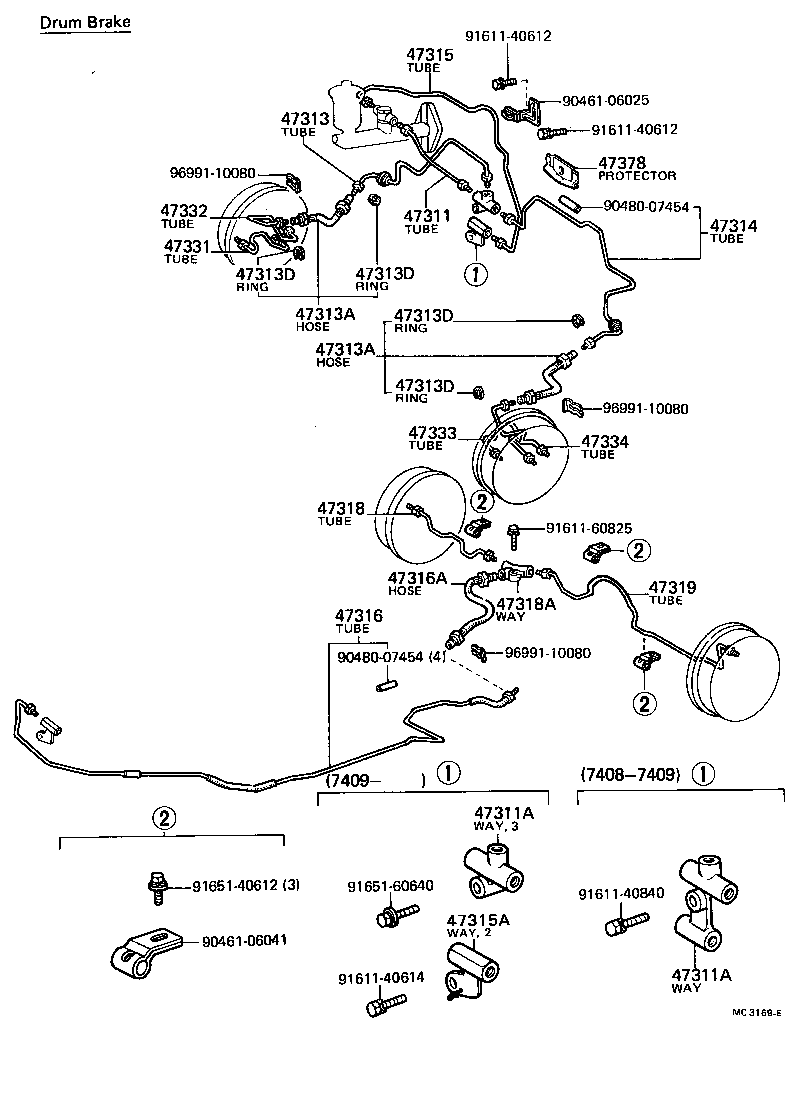

diagram 47311 47311A 47311A 47313 47313A 47313A 47313D 47313D 47313D 47313D 47314 47315 47315A 47316 47316A 47318 47318A 47319 47331 47332 47333 47334 47378 9046106025 9046106041 9048007454 9048007454 9161140612 9161140612 9161140614 9161140840 9161160825 9165140612 9165160640 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-12210

KE3#,50..RHD..(ARL,EUR,GEN)

FR DISC BRAKE

 1
47311-12270

KE30..RHD..GEN;KE36..RHD..(GEN,SA)

FR DRUM BRAKE

 1
47311-12210

KE3#,5#..RHD..(ARL,EUR,GEN)

FR DISC BRAKE

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90415-10012

KE30,36..RHD

FR DRUM BRAKE

 1
90413-10002

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

3 WAY

 1
90413-10138

KE3#,TE47..RHD..GEN

FR DISC BRAKE

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90415-10012

KE30,36..RHD

FR DRUM BRAKE

 1
90413-10002

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

3 WAY

 1
90413-10138

KE3#,TE47..RHD..GEN

FR DISC BRAKE

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12080

KE3#,50,TE3#,47,51

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

KE3#,5#,TE3#,47,51

 2
90947-02122

KE30..GEN

FR DRUM BRAKE

 2
90947-02233

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

KE3#,5#,TE3#,47,51

 2
90947-02122

KE30..GEN

FR DRUM BRAKE

 2
90947-02233

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12080

KE3#,5#,TE3#,47,51..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12160

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

FR DISC BRAKE

 1
47315-12161

KE36..RHD..(ARL,EUR,GEN);KE30,35,50,TE3#,47,51..RHD

FR DISC BRAKE

 1
47315-12190

KE30..RHD..GEN;KE36..RHD..(GEN,SA)

FR DRUM BRAKE

 1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-10001

KE30..GEN;KE36..GEN,SA

2 WAY

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-12140

KE30,35,50,TE3#,47,51..ARL,GEN,SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-31303

KE3#,5#,TE3#,47,51

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12090

KE3#,50..ARL,GEN,SA

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10139

KE3#,50,TE3#,47,51

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-12090

KE3#,50..ARL,GEN,SA

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-12020

KE30..GEN;KE36..GEN,SA

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-12040

KE30..GEN;KE36..GEN,SA

 1
47333 - TUBE, REAR BRAKE, NO.12
47331-12020

KE30..GEN;KE36..GEN,SA

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-12030

KE30..GEN;KE36..GEN,SA

 1
47378 - PROTECTOR, BRAKE TUBE
47378-12030

KE3#,5#,TE3#,47,51..RHD

 1
Common parts
90461-06025
90461-06041
90480-07454
91611-40612
91611-40614
91611-40840
91611-60825
91651-40612
91651-60640
96991-10080

(7408-7807)KE36..RHD..ARL,EUR,GEN ; (7408-7807)KE30,35,50,TE3#,47,51..RHD ; (7807-

Click highlighted areas on diagram

diagram 47150 47170 47181 47181A 47311 47311A 47313 47313A 47313A 47313D 47313D 47313J 47313J 47314 47315 47316 47316A 47318 47318A 47319 47378 8401 9046104003 9046106025 9046106041 9048007454 9161140612 9161140612 9161140840 9161160825 9161160840 9165140612 9165160640 9165160640 9165160640 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12040

KE3#,TE47

EUROPE SPEC

 1
47150-12041

KE30,35,50,TE3#,47,51..EUR,GEN,SA

REFRACTED POINT=20

 1
47150-12041

KE3#,50,TE3#,47,51..EUR,GEN,SA

 1
47150-12030

KE3#,TE47

 1
47150-12041

KE3#,TE47

EUROPE SPEC

 1
47150-12031

KE3#,TE3#,47

 1
47150-12041

KE3#,50,TE3#,47,51

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12210

KE3#,50..RHD..(ARL,EUR,GEN)

FR DISC BRAKE

 1
47311-12270

KE30..RHD..GEN;KE36..RHD..(GEN,SA)

FR DRUM BRAKE

 1
47311-12210

KE3#,5#..RHD..(ARL,EUR,GEN)

FR DISC BRAKE

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90415-10012

KE30,36..RHD

FR DRUM BRAKE

 1
90413-10002

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

3 WAY

 1
90413-10138

KE3#,TE47..RHD..GEN

FR DISC BRAKE

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12080

KE3#,50,TE3#,47,51

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

KE3#,5#,TE3#,47,51

 2
90947-02122

KE30..GEN

FR DRUM BRAKE

 2
90947-02233

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

KE3#,5#,TE3#,47,51

 2
90947-02122

KE30..GEN

FR DRUM BRAKE

 2
90947-02233

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

KE3#,5#,TE3#,47,51

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02224

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

FR DISC BRAKE

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-12080

KE3#,5#,TE3#,47,51..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12160

KE36..RHD..(ARL,GEN);KE30,35,50,TE3#,47,51..RHD

FR DISC BRAKE

 1
47315-12161

KE36..RHD..(ARL,EUR,GEN);KE30,35,50,TE3#,47,51..RHD

FR DISC BRAKE

 1
47315-12190

KE30..RHD..GEN;KE36..RHD..(GEN,SA)

FR DRUM BRAKE

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-12140

KE30,35,50,TE3#,47,51..ARL,GEN,SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-31303

KE3#,5#,TE3#,47,51

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12090

KE3#,50..ARL,GEN,SA

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10139

KE3#,50,TE3#,47,51

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-12090

KE3#,50..ARL,GEN,SA

 1
47378 - PROTECTOR, BRAKE TUBE
47378-12030

KE3#,5#,TE3#,47,51..RHD

 1
Common parts
90461-04003
90461-06025
90461-06041
90480-07454
91611-40612
91611-40840
91611-60825
91611-60840
91651-40612
91651-60640
96991-10080
Linked diagrams
8401
