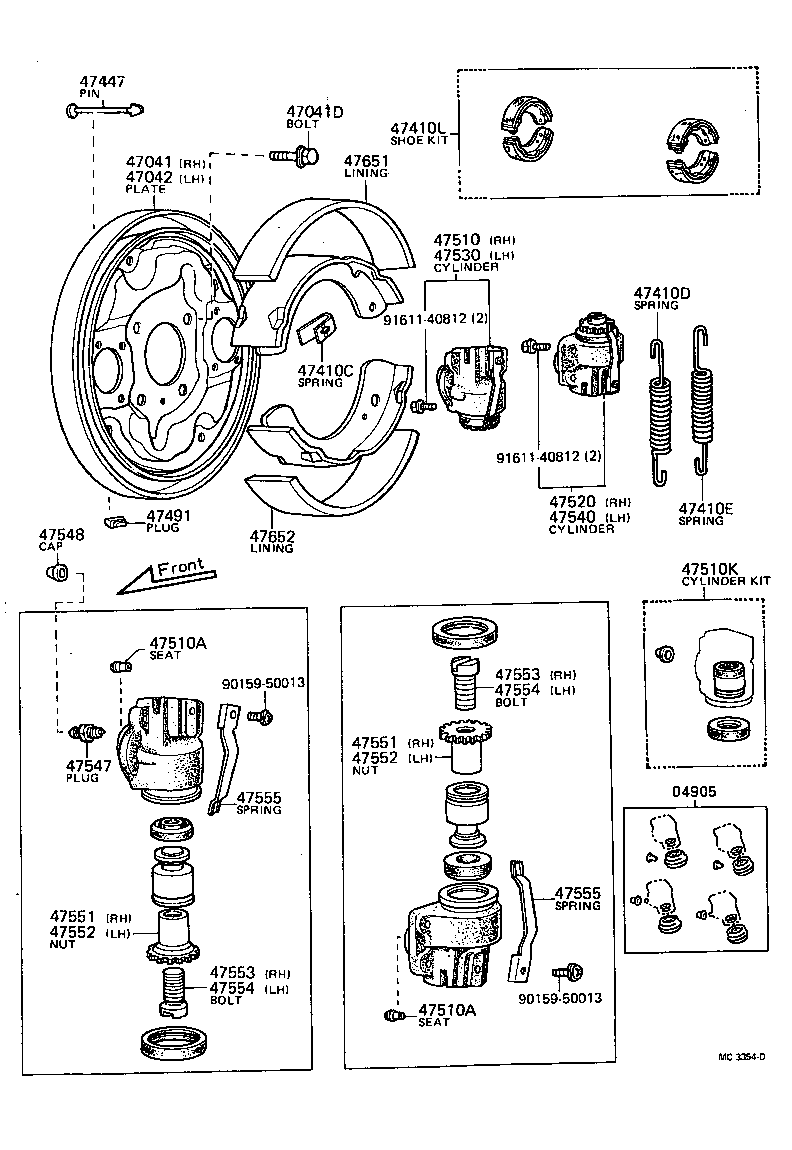

KE30R-CD (1974)
Toyota Corolla/Trueno
(7408-7807)KE30..GEN ; (7408-7807)KE36..GEN,SA ;(7807- )KE30,36..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-12020 |
KE30,36..GEN |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-12040 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90119-10082 |
KE30..GEN;KE36..GEN,SA *10-1.25PX16-16 |
4 | ||
| 90119-10009 |
KE30..GEN;KE36..GEN,SA *10-1.25PX30-30 |
4 | ||
| 90119-10188 |
KE30,36 *10-1.25PX30-30 |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-12040 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 47446-10010 |
KE30..GEN;KE36..GEN,SA |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-16464 |
KE30,36..GEN,SA CW=24,WD=1.6 |
2 | ||
| 90506-20013 |
KE30..GEN;KE36..GEN,SA CW=13,WD=2.0 |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-16464 |
KE30,36..GEN,SA CW=24,WD=1.6 |
2 | ||
| 90506-20013 |
KE30..GEN;KE36..GEN,SA CW=13,WD=2.0 |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-12040 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 04494-12050 |
KE30,36 |
1 | ||
| 04494-12040 |
KE30,36 |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-11010 |
KE30..GEN;KE36..GEN,SA |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-20020 |
KE30..GEN;KE36..GEN,SA |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-19075 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47510A - SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
KE30..GEN;KE36..GEN,SA |
6 | ||
| 47510A - SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
KE30..GEN;KE36..GEN,SA |
6 | ||
| 47510K - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-12021 |
KE30..GEN;KE36..GEN,SA |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-19065 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-19075 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-19065 |
KE30..GEN;KE36..GEN,SA |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-14010 |
KE30,36 |
2 | ||
| 47551-14011 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-14010 |
KE30,36 |
2 | ||
| 47551-14011 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-14010 |
KE30,36 |
2 | ||
| 47552-14011 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-14010 |
KE30,36 |
2 | ||
| 47552-14011 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-12011 |
KE30,36 |
2 | ||
| 47553-20020 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-12011 |
KE30,36 |
2 | ||
| 47553-20020 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-12011 |
KE30,36 |
2 | ||
| 47554-20020 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-12011 |
KE30,36 |
2 | ||
| 47554-20020 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-12050 |
KE30..GEN;KE36..GEN,SA RH |
2 | ||
| 47556-12030 |
KE30..GEN;KE36..GEN,SA LH |
2 | ||
| 47556-14011 |
KE30,36 LH |
2 | ||
| 47555-14011 |
KE30,36 RH |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-12050 |
KE30..GEN;KE36..GEN,SA RH |
2 | ||
| 47556-12030 |
KE30..GEN;KE36..GEN,SA LH |
2 | ||
| 47556-14011 |
KE30,36 LH |
2 | ||
| 47555-14011 |
KE30,36 RH |
2 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-12050 |
KE30,36 |
2 | ||
| 47651-12050 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| 47651-12070 |
KE30,36 |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-12050 |
KE30,36 |
2 | ||
| 47651-12070 |
KE30,36 |
2 | ||
| 47651-12050 |
KE30..GEN;KE36..GEN,SA |
2 | ||
| Common parts | ||||
| 90159-50013 | ||||
| 91611-40812 | ||||
