KE30L-KDFW (1977)
Toyota Corolla/Trueno
(7701- )

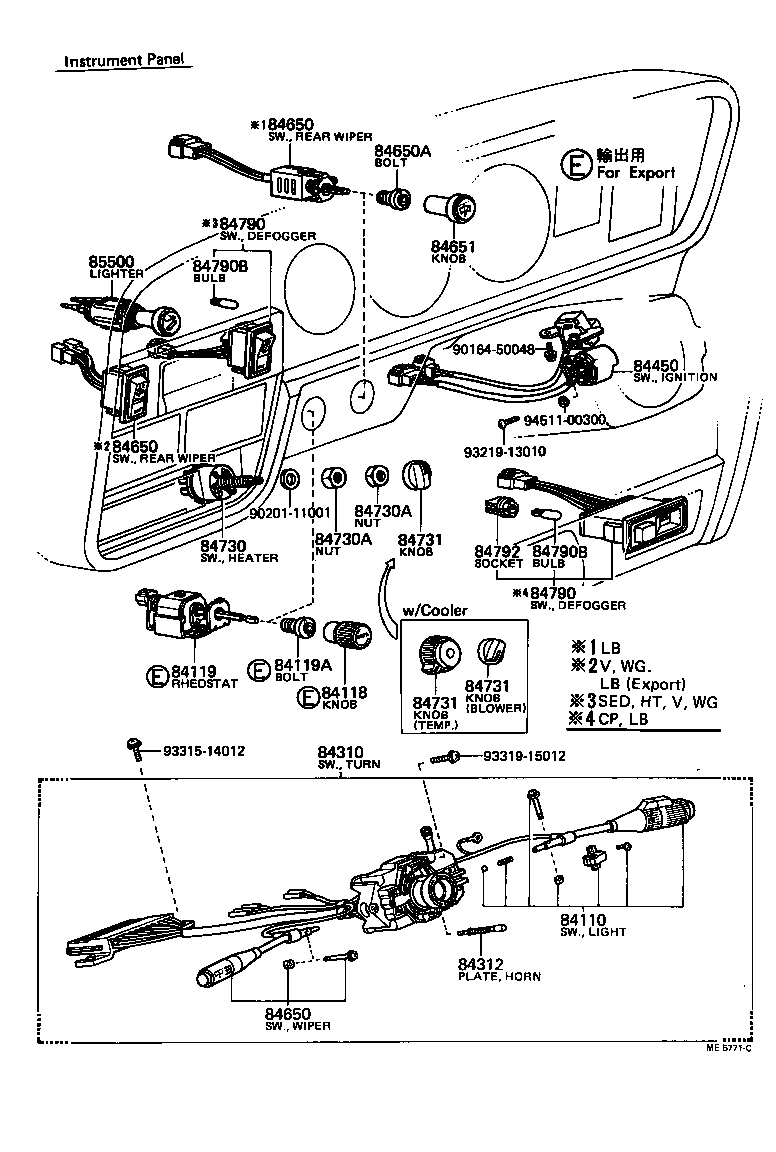

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19025 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84112-19045 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12161 |
KE3#,50,TE47,51..LHD |
1 | ||
| 84310-12260 |
KE30,35,36,50,TE47,51..LHD..EUR |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12040 |
KE3#,TE3#,47 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19085 |
KE3#,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19045 |
KE3#,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19046 |
KE30,35,36,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19125 |
KE30,35,36,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19085 |
KE3#,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19045 |
KE3#,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19046 |
KE30,35,36,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19125 |
KE30,35,36,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19085 |
KE3#,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19045 |
KE3#,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19046 |
KE30,35,36,50,TE47,51..LHD..EUR TOKAIRIKA |
1 | ||
| 84652-19125 |
KE30,35,36,50,TE47,51..LHD..EUR MATSUSHITA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12020 |
KE3#..ARL,EUR,GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12020 |
KE3#..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12040 |
KE3#,50,TE47,51..EUR |
1 | ||
| 85500-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85500-30160 |
KE3#,TE47 |
1 | ||
| 85500-12060 |
KE30,35,36,50,TE47,51..EUR |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90201-11001 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 94511-00300 | ||||
(7701- )

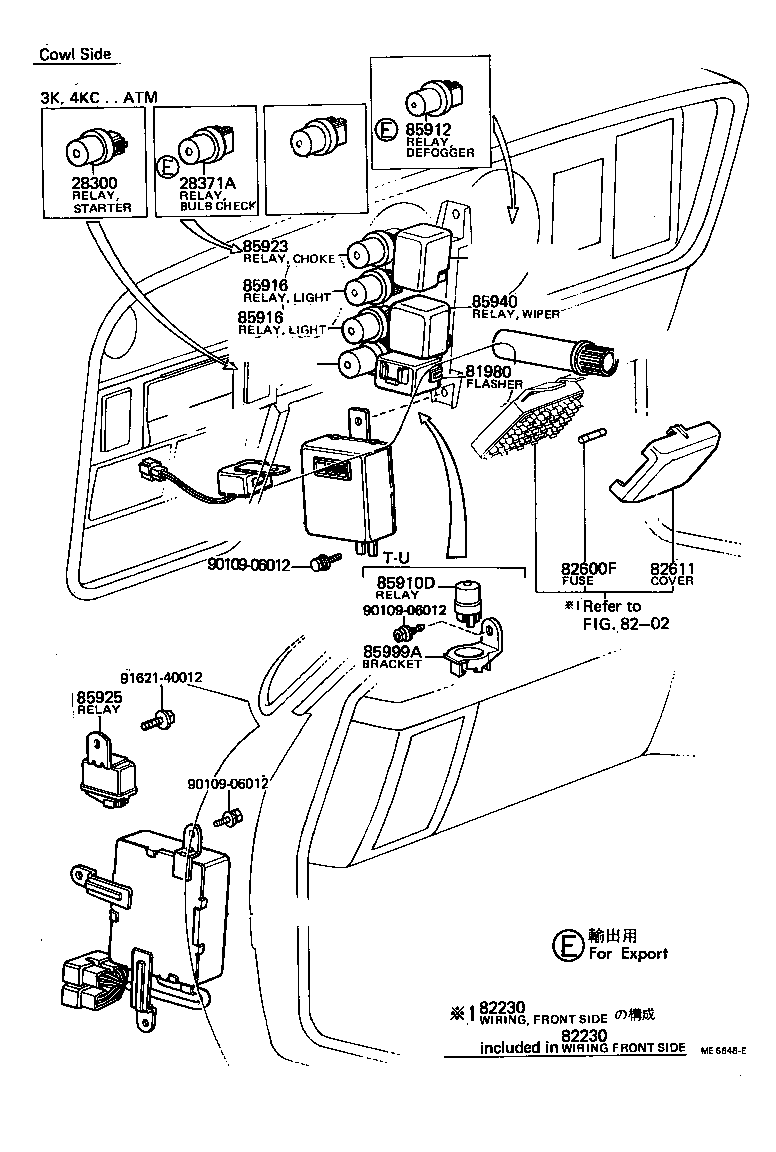

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12060 |
KE30,35,36,50,TE47,51..LHD..EUG W/RED INDICATOR |
1 | ||
| 81980-12030 |
KE3#,TE47..LHD |
1 | ||
| 81980-12040 |
KE3#,50,TE47,51..LHD W/RED INDICATOR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12060 |
KE3#,50,TE47,51..LHD..EUR WEST GERMANY SPEC |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82611-12062 |
KE30,35,36,TE51..LHD..EUR WEST GERMANY SPEC |
1 | ||
| 82611-12061 |
KE3#,TE51..LHD..EUR WEST GERMANY SPEC |
1 | ||
| 82611-12040 |
KE3#,50,TE47,51..LHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02001 |
KE30,35,36,50,TE47,51..LHD..EUR W/HEAVY DUTY DEFOGGER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-12010 |
KE30,35,36,50..(DLX,STD)..EUR |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
KE30,35,36,50,TE47,51..EUR |
1 | ||
| 85940-22050 |
KE3#,50,TE47,51..EUR |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 91621-40012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
