KE30L-KDFW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7701- )KE30,35,36..LHD

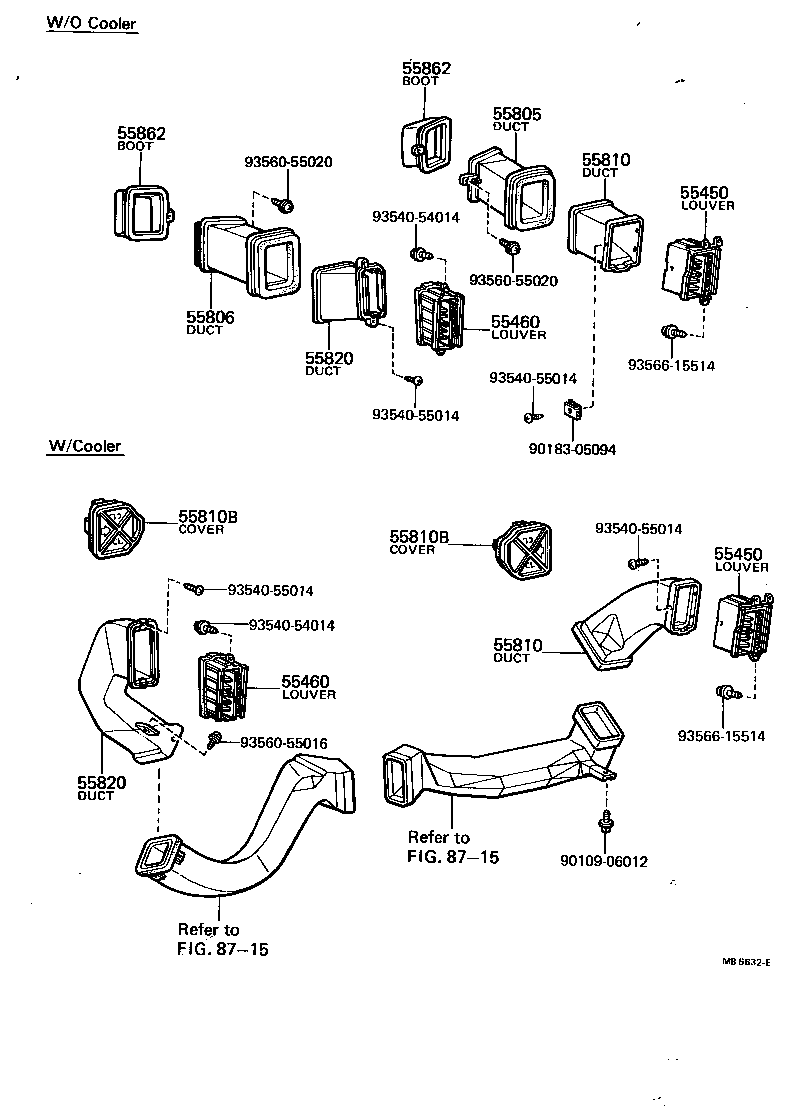

Click highlighted areas on diagram

diagram 55450 55450 55460 55460 55805 55806 55810 55810 55810B 55810B 55820 55820 55862 55862 8715 8715 9010906012 9018305094 9354054014 9354054014 9354055014 9354055014 9354055014 9354055014 9356055016 9356055020 9356055020 9356615514 9356615514
Part # Description Qty Price
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55660-1202006

KE3#,TE47..LHD

BROWN,BROWN

 1
55660-1202001

KE3#,50,TE47,51..LHD

BLACK,BLACK

 1
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55660-1202006

KE3#,TE47..LHD

BROWN,BROWN

 1
55660-1202001

KE3#,50,TE47,51..LHD

BLACK,BLACK

 1
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55842-12030

KE3#..LHD

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55841-12030

KE3#..LHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55840-12030

KE3#,50,TE47,51..LHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55840-12030

KE3#,50,TE47,51..LHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55830-12030

KE3#..LHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55830-12030

KE3#..LHD

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE30,35,36..LHD

RH

 1
55843-12030

KE30,35,36..LHD

LH

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE30,35,36..LHD

RH

 1
55843-12030

KE30,35,36..LHD

LH

 1
Common parts
90109-06012
90183-05094
93540-54014
93540-55014
93560-55016
93560-55020
93566-15514
