KE30L-KDF (1974)
Toyota Corolla/Trueno
(7408-7701)KE3#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12060 |
KE3#..LHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1203006 |
KE3#..LHD W/SIDE DEFROSTER,BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55301-1206001 |
KE3#..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1203001 |
KE3#..LHD W/SIDE DEFROSTER,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1206006 |
KE3#..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55311-1210006 |
KE3#..LHD..(DLX,SR) LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1210001 |
KE3#..LHD..(DLX,SR) BLACK,BLACK,TRIM2# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-12060 |
KE3#..LHD..(DLX,SR) |
1 | ||
| 55601-12030 |
KE30,35,36..LHD..(DLX,SR) |
1 | ||
| 55601-12062 |
KE3#..LHD..(DLX,SR) |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12060 |
KE3#..LHD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-12040 |
KE3#,TE3# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12050 |
KE3#..LHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55520-14011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1209001 |
KE3#..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1209006 |
KE3#..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1211001 |
KE3#..LHD WEST GERMANY SPEC,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1211006 |
KE3#..LHD WEST GERMANY SPEC,BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90159-40205 | ||||
| 90159-60193 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 91651-40818 | ||||
| 93386-16016 | ||||
| 93386-16020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7404 | ||||

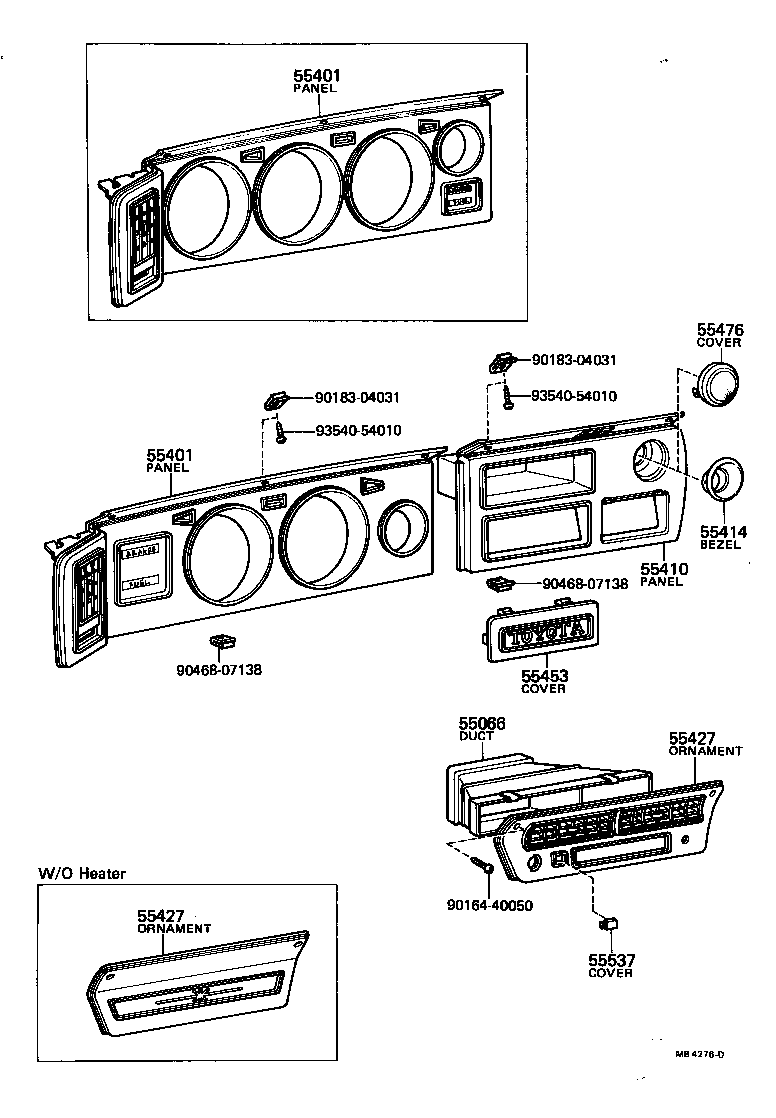

(7408-7701)KE3#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12010 |
KE3#,TE3# W/HEATER |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12200 |
KE3#..LHD..DLX |
1 | ||
| 55404-12270 |
KE35..LHD..DLX;KE30..LHD..2D..DLX..GEN;KE30,36..(2DW,4DS,4DW)..LHD..DLX WEST GERMANY SPEC |
1 | ||
| 55404-12270 |
KE35..LHD..DLX;KE30..LHD..2D..DLX..GEN;KE30,36..(2DW,4DS,4DW)..LHD..DLX FRANCE SPEC |
1 | ||
| 55410-12210 |
KE3#..LHD..DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12200 |
KE3#..LHD..DLX |
1 | ||
| 55404-12270 |
KE35..LHD..DLX;KE30..LHD..2D..DLX..GEN;KE30,36..(2DW,4DS,4DW)..LHD..DLX WEST GERMANY SPEC |
1 | ||
| 55404-12270 |
KE35..LHD..DLX;KE30..LHD..2D..DLX..GEN;KE30,36..(2DW,4DS,4DW)..LHD..DLX FRANCE SPEC |
1 | ||
| 55410-12210 |
KE3#..LHD..DLX |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55405-12230 |
KE3#..LHD..(DLX,STD) |
1 | ||
| 55405-12231 |
KE3#..LHD..(DLX,STD) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55413-12030 |
KE3#..DLX,STD W/O HEATER |
1 | ||
| 55406-12030 |
KE3#,TE31..DLX,STD W/HEATER |
1 | ||
| 55406-12130 |
KE3#..DLX,STD W/RR WINDOW DEFOGGER |
1 | ||
| 55413-12030 |
KE3#..(DLX,STD)..(ARL,EUR,GEN) W/O HEATER |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55413-12030 |
KE3#..DLX,STD W/O HEATER |
1 | ||
| 55406-12030 |
KE3#,TE31..DLX,STD W/HEATER |
1 | ||
| 55406-12130 |
KE3#..DLX,STD W/RR WINDOW DEFOGGER |
1 | ||
| 55413-12030 |
KE3#..(DLX,STD)..(ARL,EUR,GEN) W/O HEATER |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12010 |
KE3#,TE3# |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-12010 |
KE3#,TE37..DLX,SR |
1 | ||
| Common parts | ||||
| 90164-40050 | ||||
| 90183-04031 | ||||
| 90468-07138 | ||||
| 93540-54010 | ||||
