KE30L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

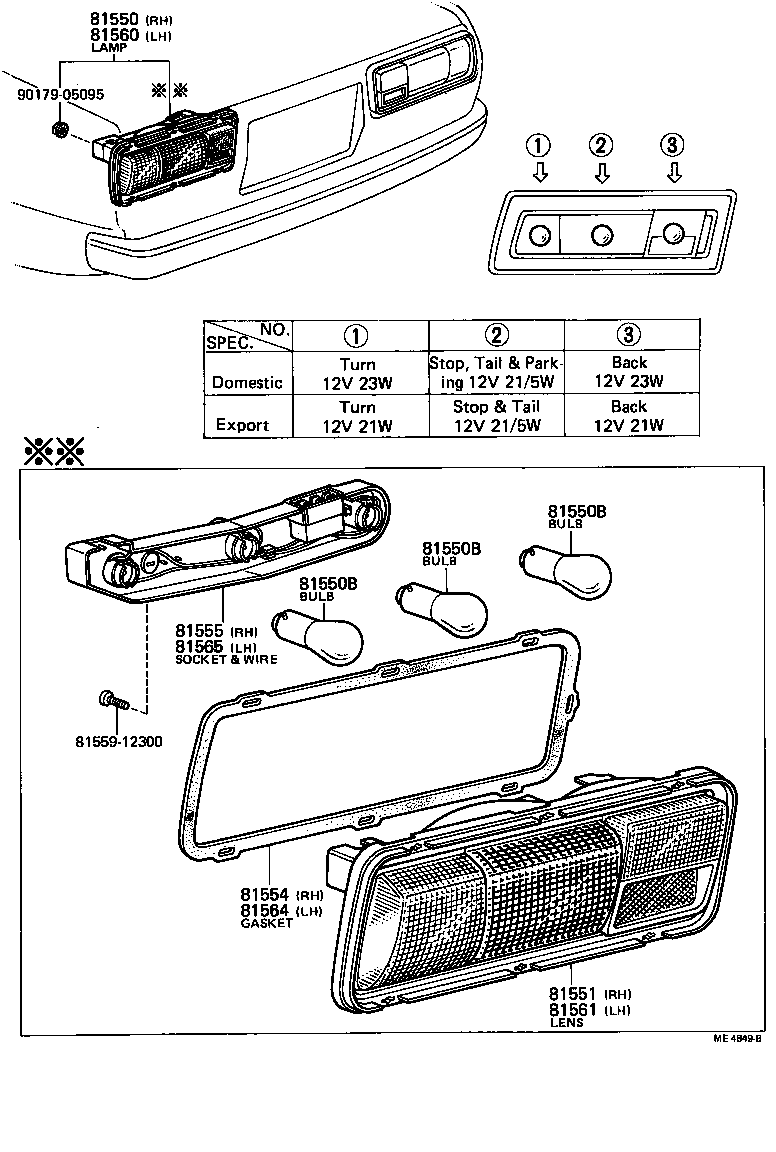

(7408-7701)KE30,TE31

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 8155912300 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19705

KE30,TE31

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12390

KE30,TE31

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12300

KE30,TE31

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12300

KE30,TE31

 1
81555-12391

KE30,TE31

 1
81555-12392

KE30,TE31

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19685

KE30,TE31

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12390

KE30,TE31

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12300

KE30,TE31

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12300

KE30,TE31

 1
Common parts
81559-12300
90179-05095

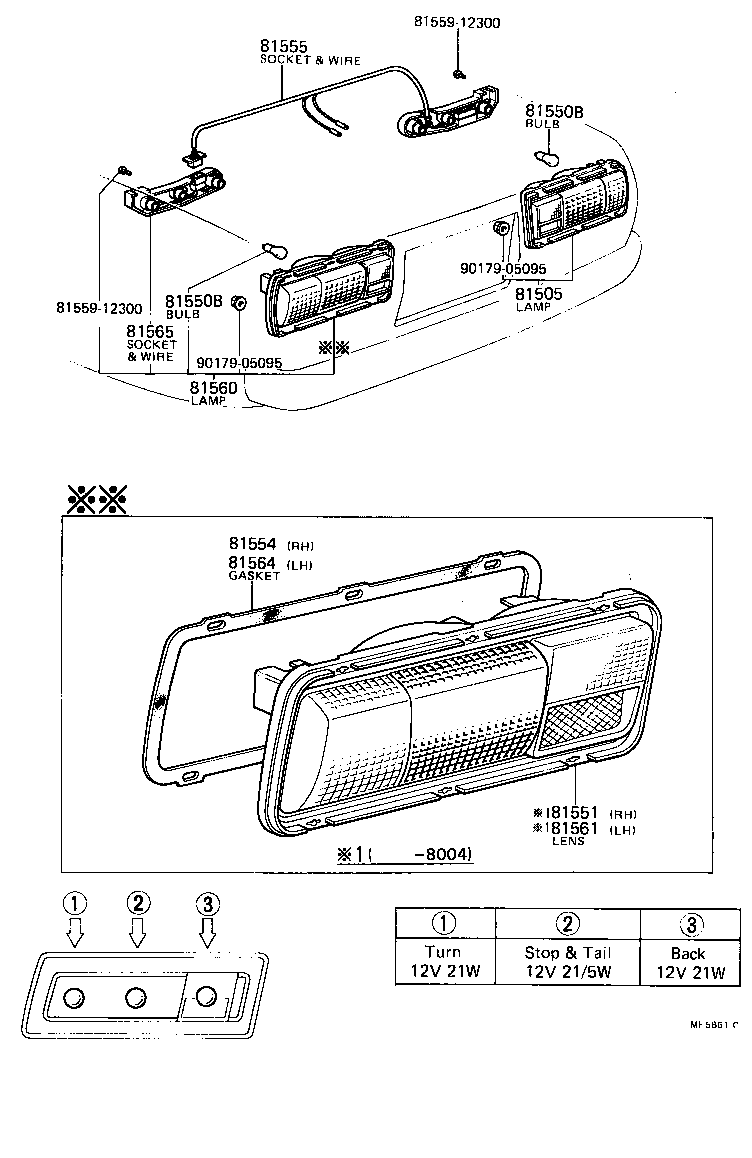

(7701-7805)KE30,TE31 ; (7805- )KE55..STD

Click highlighted areas on diagram

diagram 81505 81550B 81550B 81551 81554 81555 8155912300 8155912300 81560 81561 81564 81565 9017905095 9017905095
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19115

KE30,TE31

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12390

KE30,TE31

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12300

KE30,TE31

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12300

KE30,TE31

 1
81555-12391

KE30,TE31

 1
81555-12392

KE30,TE31

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19685

KE30,TE31

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12390

KE30,TE31

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12300

KE30,TE31

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12300

KE30,TE31

 1
Common parts
81559-12300
90179-05095

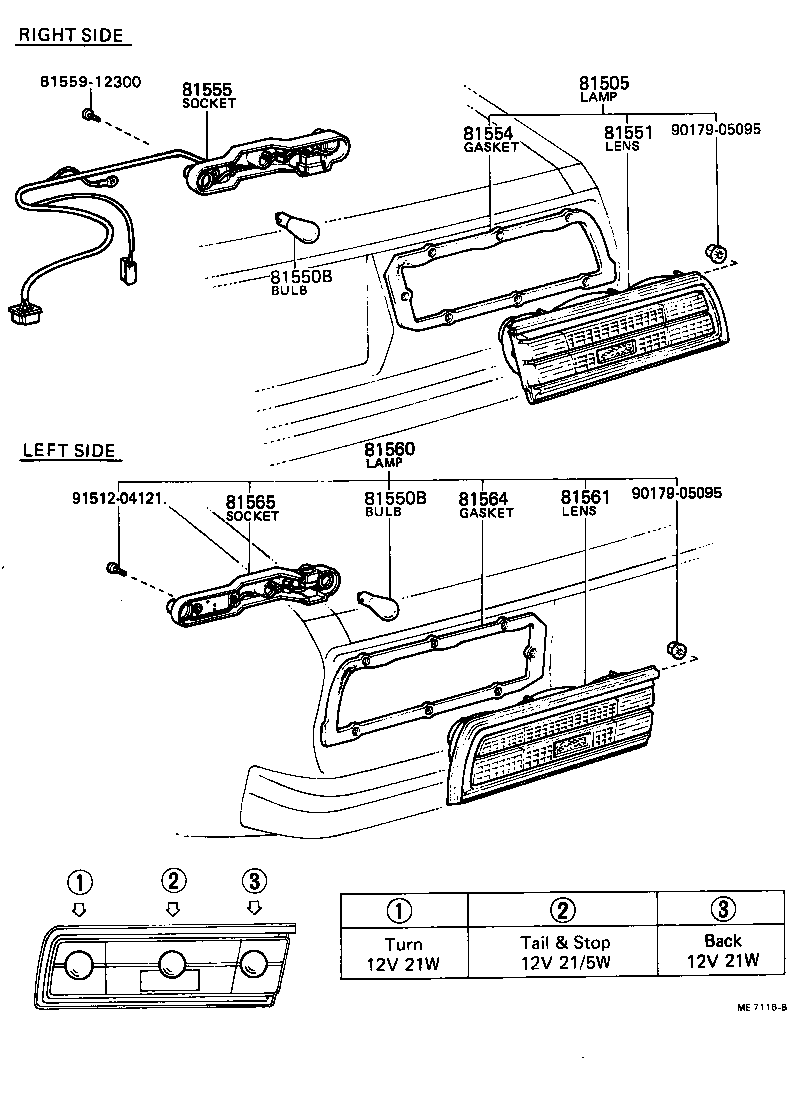

(7805- )KE30,TE31

Click highlighted areas on diagram

diagram 81505 81550B 81550B 81551 81554 81555 8155912300 81560 81561 81564 81565 9017905095 9017905095 9151204121
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19115

KE30,TE31

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12390

KE30,TE31

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12300

KE30,TE31

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12300

KE30,TE31

 1
81555-12391

KE30,TE31

 1
81555-12392

KE30,TE31

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19685

KE30,TE31

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12390

KE30,TE31

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12300

KE30,TE31

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12300

KE30,TE31

 1
Common parts
81559-12300
90179-05095
91512-04121
