KE30L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8002)KE30,35,36,50..LHD..MTM

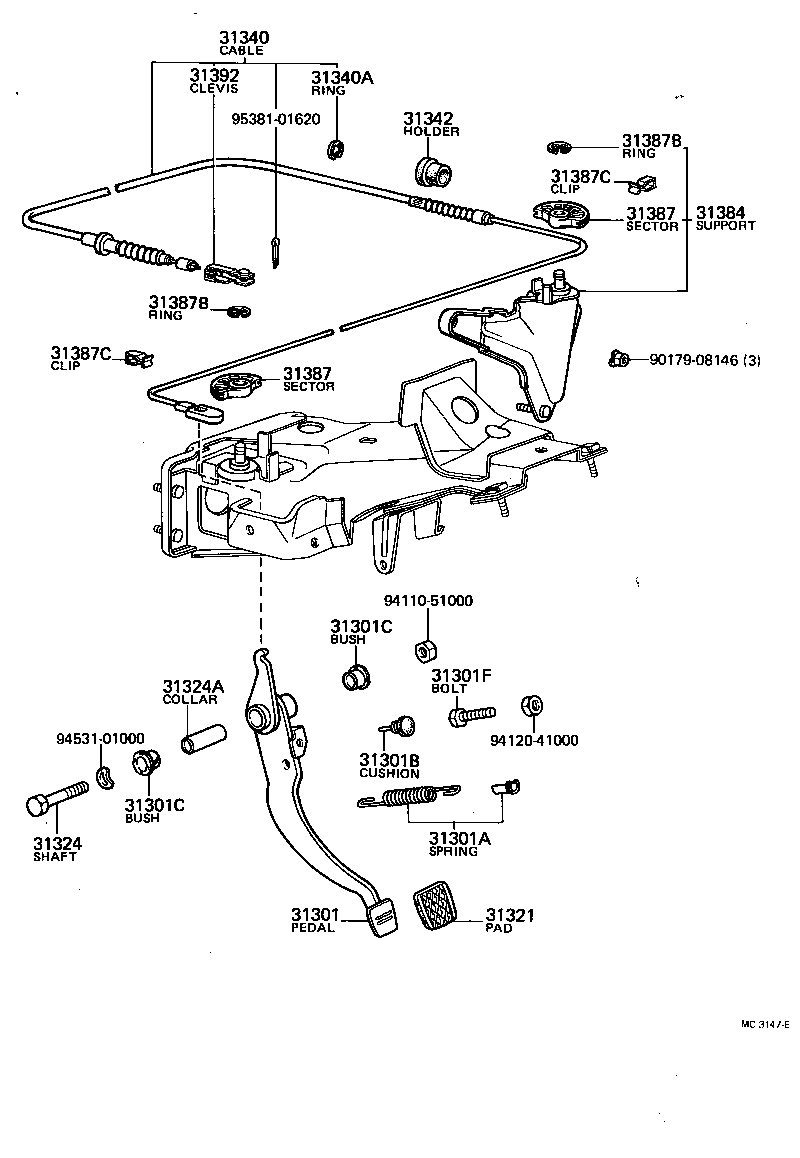

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340A 31342 31384 31387 31387 31387B 31387B 31387C 31387C 31392 9017908146 9411051000 9412041000 9453101000 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12100

KE30,35,36,50..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16477

KE3#,TE3#,47..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

KE3#,5#,TE3#,47,51..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KE3#,5#,TE3#,47,51..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KE3#,5#,TE3#,47,51..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10085

KE3#,5#,TE3#,47,51..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

KE3#,5#,TE3#,47,51..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

KE3#,TE3#,47..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KE3#,5#,TE3#,47,51..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19155

KE30,35,36,50..LHD..MTM

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

KE3#,5#..MTM

 2
31342 - HOLDER, CLUTCH CABLE, INNER
31342-12901

KE3#,5#..MTM

 1
31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR
31030-12030

KE30,35,36,50..LHD..MTM

 1
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KE30,35,36,50..LHD..MTM

 2
31387 - SECTOR, CLUTCH RELEASE
31387-10010

KE30,35,36,50..LHD..MTM

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KE30,35,36,50..LHD..MTM

 2
31387B - RING, E(FOR CLUTCH RELEASE SECTOR)
96160-00800

KE30,35,36,50..LHD..MTM

 2
31387C - CLIP(FOR CLUTCH RELEASE SECTOR)
90468-06008

KE30,35,36,50..LHD..MTM

 2
31387C - CLIP(FOR CLUTCH RELEASE SECTOR)
90468-06008

KE30,35,36,50..LHD..MTM

 2
31392 - CLEVIS, CLUTCH CABLE
31392-10010

KE3#,5#..MTM

 1
Common parts
90179-08146
94110-51000
94120-41000
94531-01000
95381-01620
