KE30L-CDFW (1977)
Toyota Corolla/Trueno

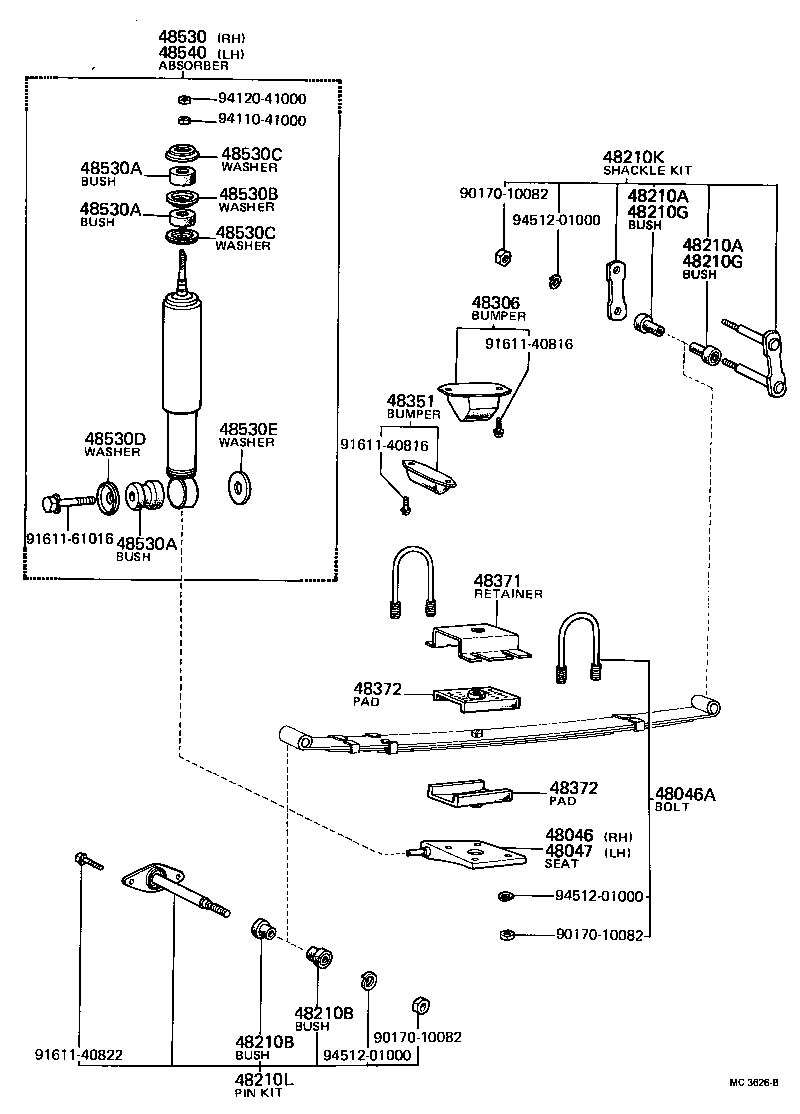

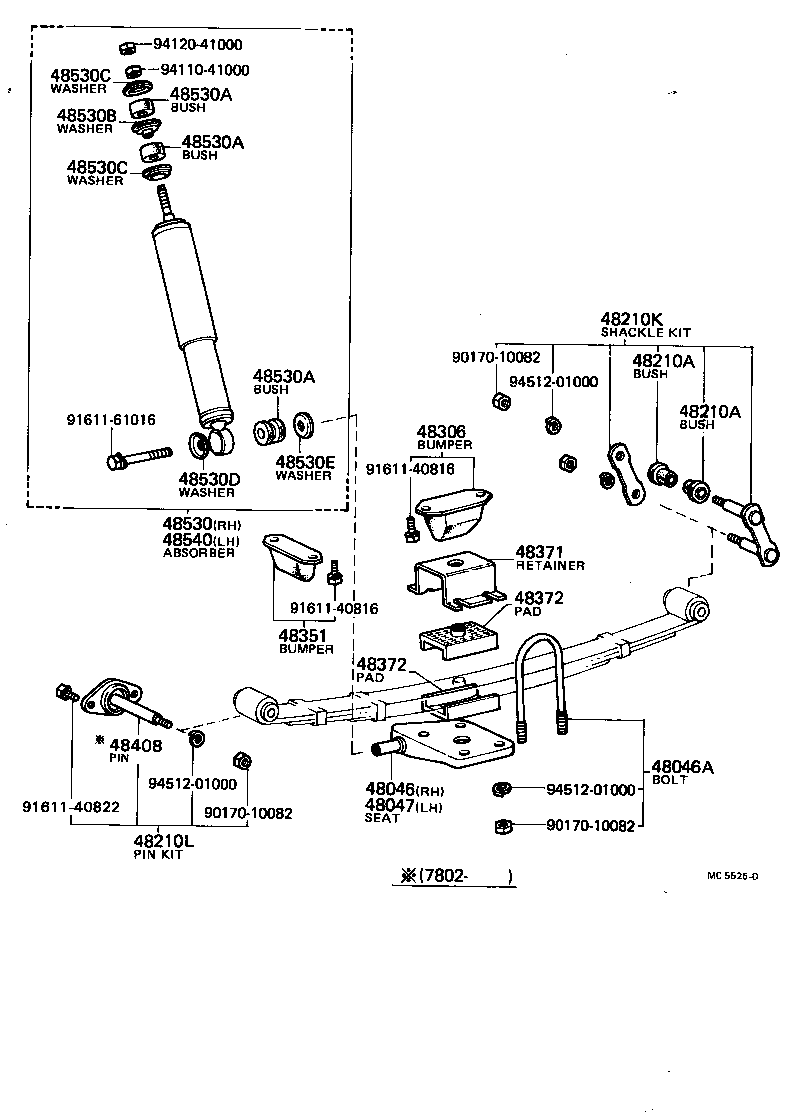

(7408-7801)KE30,35,50,TE3#,47,51 ; (7801- )KE30,35,5#,TE3#,47,51..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10128 |
KE30,35,TE3#,47..DLX,LT,SR,ST,STD |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13003 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13003 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12050 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 04483-12020 |
KE3#,50,TE3#,47,51 |
2 | ||
| 04483-12040 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 04484-12040 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-19025 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50..EUR,GEN,SA |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-12031 |
KE30,35 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19305 |
KE30,35 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19305 |
KE30,35 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

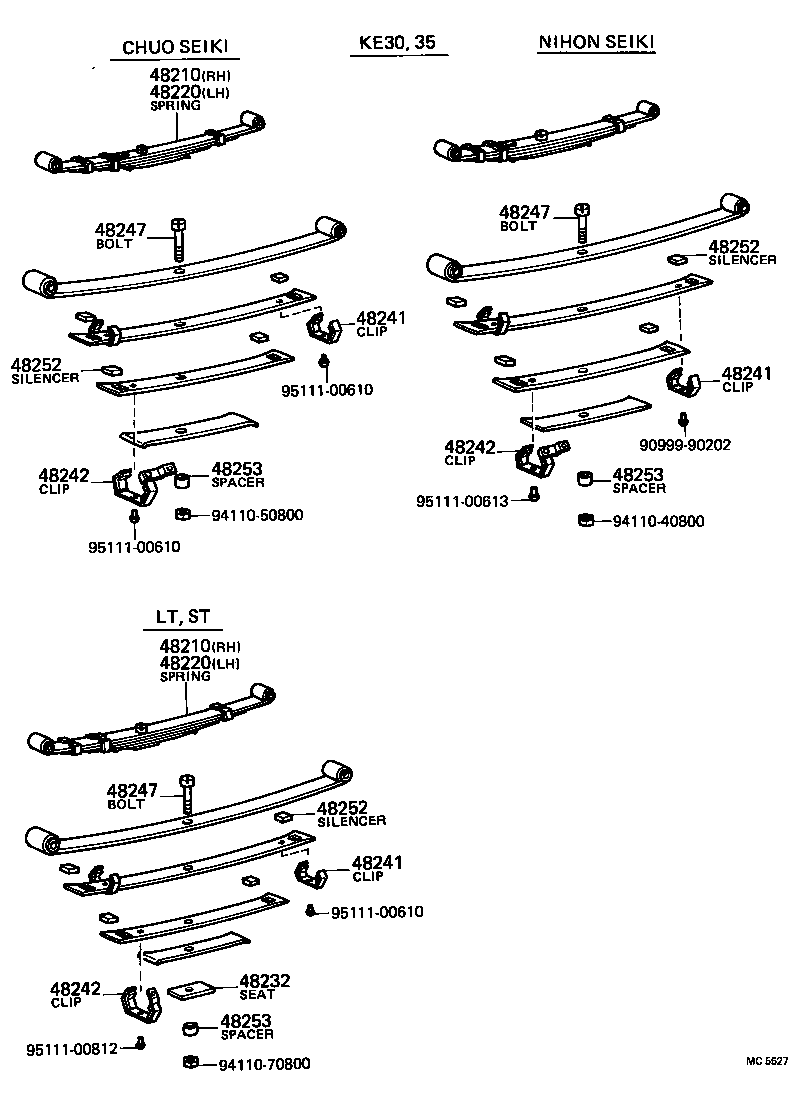

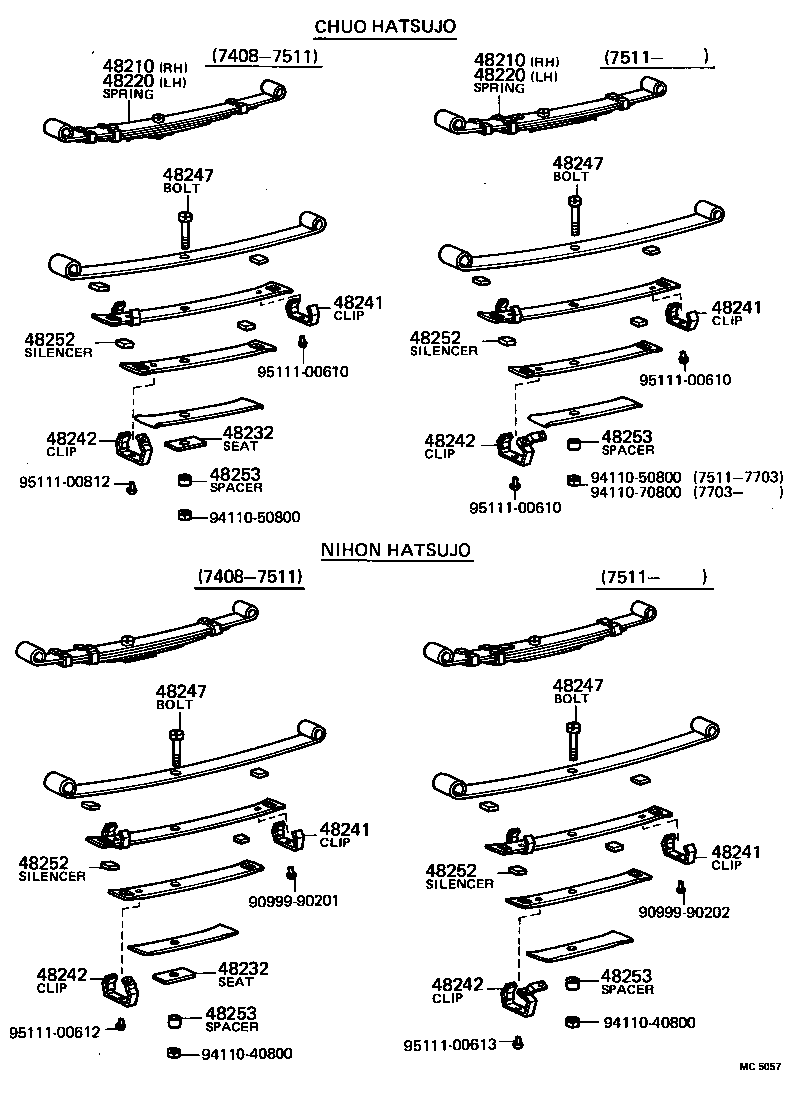

(7408-7801)KE30,35 ; (7711-8004)TE3#,47..DLX,LT,SR,ST,STD..GEN,SA ; (7801- )KE30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48232 - SEAT, COIL SPRING, REAR | ||||
| 48251-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48232 - SEAT, COIL SPRING, REAR | ||||
| 48251-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 90999-90201 | ||||
| 90999-90202 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94110-70800 | ||||
| 95111-00610 | ||||
| 95111-00612 | ||||
| 95111-00613 | ||||
| 95111-00812 | ||||
(7801-7908)KE30,35,50,TE47,51..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10128 |
KE30,35,TE3#,47..DLX,LT,SR,ST,STD |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12050 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 04483-12020 |
KE3#,50,TE3#,47,51 |
2 | ||
| 04483-12040 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 04484-12040 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-19025 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50..EUR,GEN,SA |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-12031 |
KE30,35 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48408 - PIN SUB-ASSY, SPRING BRACKET | ||||
| 48409-12031 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48409-12032 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19305 |
KE30,35 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19305 |
KE30,35 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
(7801-7908)KE30,35,TE47..DLX,LT,SR,ST,STD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12160 |
KE30,35 |
1 | ||
| 48210-12111 |
KE30,35..LHD..EUG WEST GERMANY SPEC |
1 | ||
| 48210-12320 |
KE30,35..LHD..EUR |
1 | ||
| 48210-12321 |
KE30,35..LHD..EUR W/BUSH |
1 | ||
| 48210-12350 |
KE30,35..LHD..EUG WEST GERMANY SPEC,W/BUSH |
1 | ||
| 48232 - SEAT, COIL SPRING, REAR | ||||
| 48251-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-12053 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241-12053 |
KE30,35..LHD..EUR NIHON HATSUJO |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12070 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48241-12120 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-12320 |
KE30,35 CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..ARL,EUR,GEN CHUO HATSUJO |
2 | ||
| 48247-12052 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48247-12320 |
KE30,35..LHD..EUR CHUO HATSUJO |
2 | ||
| 48247-22010 |
KE30,35..LHD..EUG WEST GERMANY SPEC. CHUO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE30,35..LHD..EUR NIHON HATSUJO |
8 | ||
| 48253-23030 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3#..ARL,EUR,GEN NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE30,35..LHD..EUR NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94110-70800 | ||||
| 95111-00610 | ||||
| 95111-00613 | ||||
| 95111-00812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
