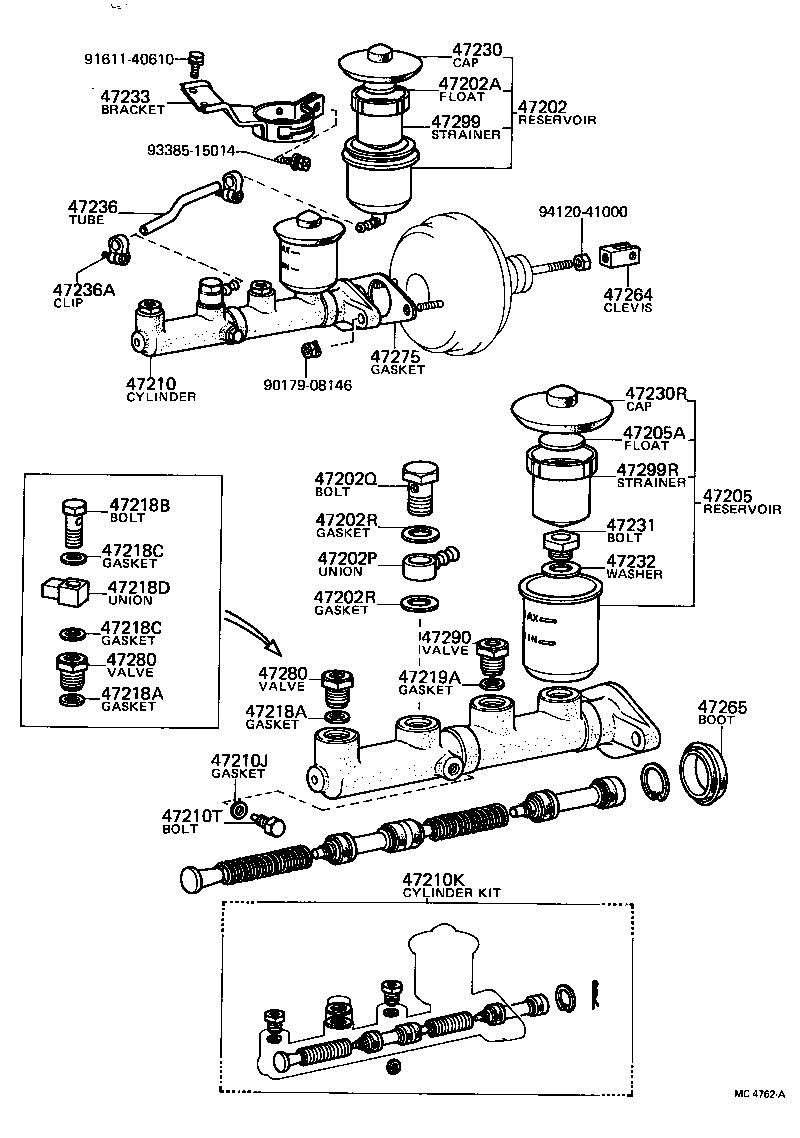

KE30L-CDFW (1977)
Toyota Corolla/Trueno
(7701-7707)KE36..RHD..ARL,EUR,GEN ; (7701-7707)KE30,35,50,TE3#,47,51..RHD ; (7707-7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 31426-20010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10173 |
KE30,35,36,50..LHD |
1 | ||
| 90405-10173 |
KE30,35,36,50..LHD |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 90401-16078 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 31426-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-06104 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12041 |
KE3#,50..ARL,EUR,GEN W/BOOSTER |
1 | ||
| 04493-12041 |
KE3#,50..ARL,EUR,GEN W/BOOSTER |
1 | ||
| 04493-12040 |
KE3#,50..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 04493-12040 |
KE3#,50..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 04471-12043 |
KE30,36..EUR,GEN,SA FR DRUM BRAKE |
1 | ||
| 04471-12043 |
KE30,36..EUR,GEN,SA FR DRUM BRAKE |
1 | ||
| 04493-12041 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA W/BOOSTER |
1 | ||
| 04493-12041 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA W/BOOSTER |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06011 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90109-06011 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-12030 |
KE3#,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47230-12030 |
KE3#,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12040 |
KE30,35,36,50..LHD..(DLX,STD) |
1 | ||
| 47233-12040 |
KE30,35,36,50..LHD..(DLX,STD) |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-12020 |
KE30,35,36,50..LHD |
1 | ||
| 47236-12020 |
KE30,35,36,50..LHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90460-16069 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 47264-12040 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47265-20050 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47275-14010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47280-30030 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47299-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
KE30,35,36,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47299-20020 |
KE30,35,36,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40610 | ||||
| 93385-15014 | ||||
| 94120-41000 | ||||
(7707-7807)KE30,35,50,TE3#,47,51..RHD..ARL,GEN,SA ; (7807-7908)RHD..ARL,GEN,SA ; (7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 31426-20010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10173 |
KE30,35,36,50..LHD |
1 | ||
| 90405-10173 |
KE30,35,36,50..LHD |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 90401-16078 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90430-16242 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 31426-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-06104 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12041 |
KE3#,50..ARL,EUR,GEN W/BOOSTER |
1 | ||
| 04493-12041 |
KE3#,50..ARL,EUR,GEN W/BOOSTER |
1 | ||
| 04493-12040 |
KE3#,50..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 04493-12040 |
KE3#,50..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 04471-12043 |
KE30,36..EUR,GEN,SA FR DRUM BRAKE |
1 | ||
| 04471-12043 |
KE30,36..EUR,GEN,SA FR DRUM BRAKE |
1 | ||
| 04493-12041 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA W/BOOSTER |
1 | ||
| 04493-12041 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA W/BOOSTER |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06011 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90109-06011 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-09253 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 90430-16242 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-12030 |
KE3#,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47230-12030 |
KE3#,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12040 |
KE30,35,36,50..LHD..(DLX,STD) |
1 | ||
| 47233-12040 |
KE30,35,36,50..LHD..(DLX,STD) |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-12020 |
KE30,35,36,50..LHD |
1 | ||
| 47236-12020 |
KE30,35,36,50..LHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 90460-16069 |
KE30,35,50;KE36..ARL,EUR,GEN |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 47264-12040 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47265-20050 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47275-14010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47280-30030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-20020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47280-30030 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47280-30030 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47299-20010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
KE30,35,36,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| 47299-20020 |
KE30,35,36,50,TE47,51..LHD..(DLX,GSL,GT,LT,ST,STD) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40610 | ||||
| 93385-15014 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
