ZRE212R-AWXNP (2019)

Toyota Corolla/Touring

Production Sep 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )

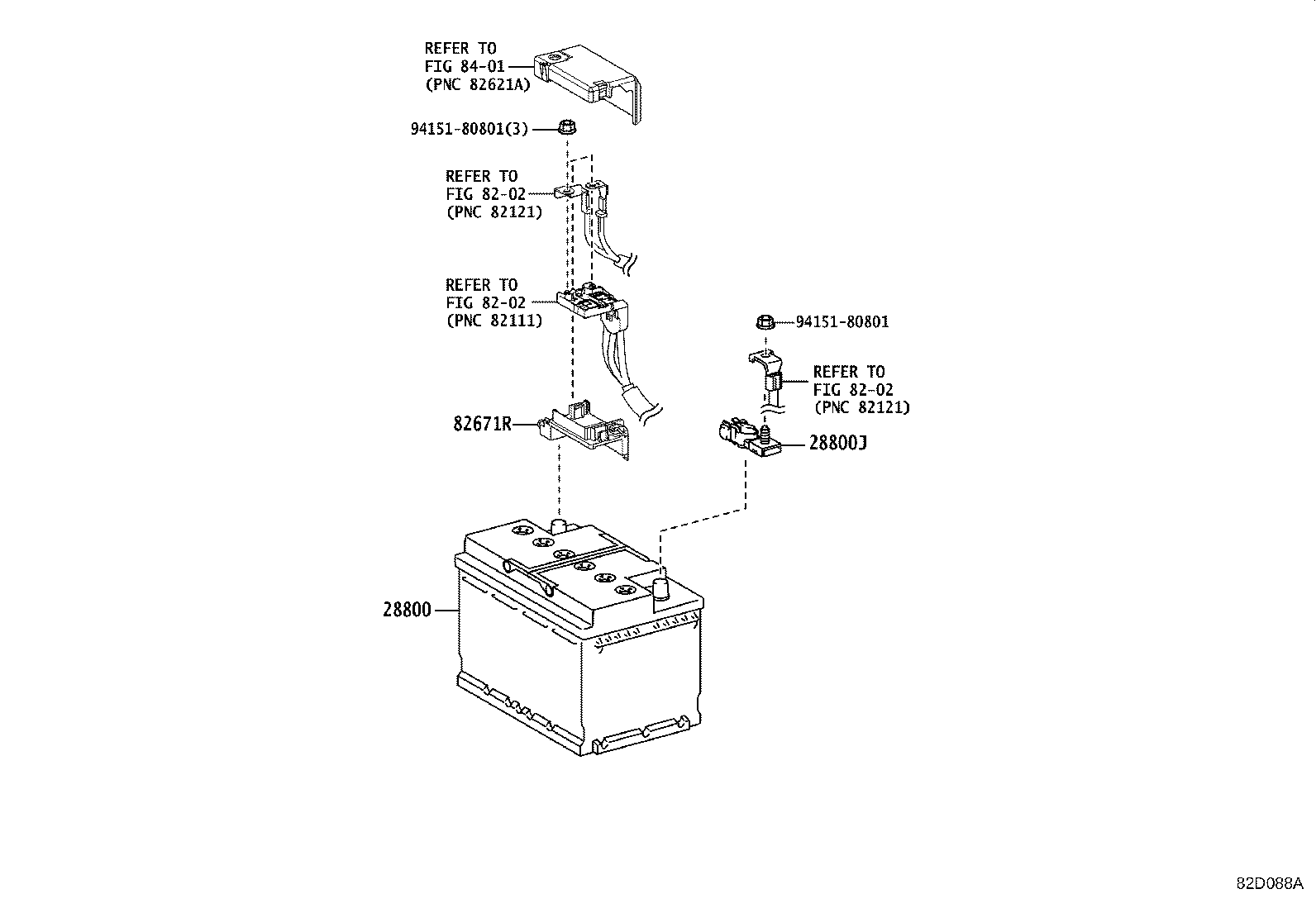

Click highlighted areas on diagram

diagram 28800 28800J 8202 8202 8202 82671R 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-37130

2ZRFAE..ZRE212

LN1

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2ZRFAE..ZRE212

 1
82671R - STOPPER, BATTERY TERMINAL
82651-10010

ZRE212

 1
Common parts
94151-80801
Linked diagrams
8202
8401
