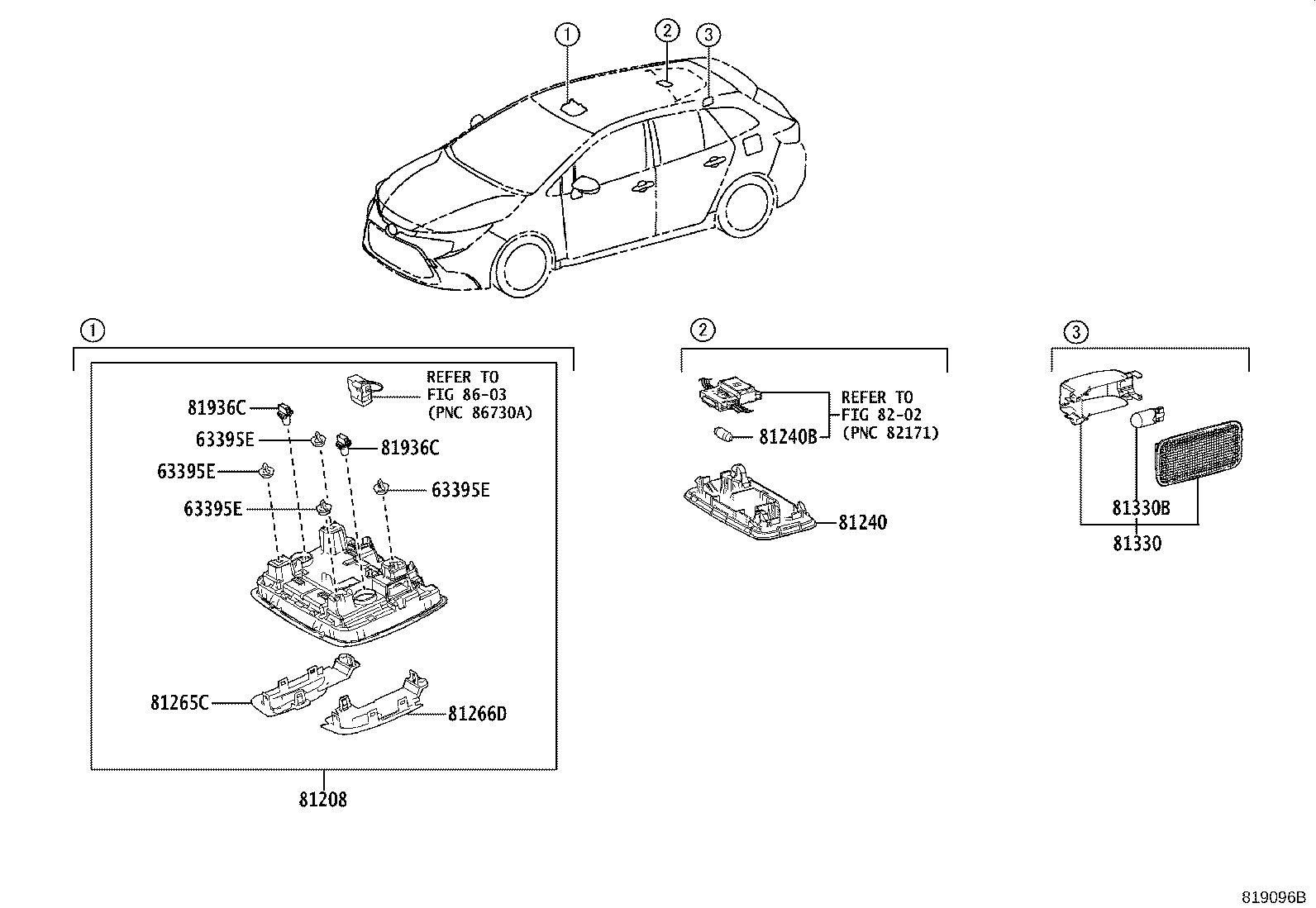

Toyota Corolla/touring ZRE212 INTERIOR LAMP

Part #	Description	Period	Qty
63395E - CLIP(FOR MAP LAMP)
90467-09240	ZRE212	09/2019 - 12/2999	4
63395E - CLIP(FOR MAP LAMP)
90467-09240	ZRE212	09/2019 - 12/2999	4
63395E - CLIP(FOR MAP LAMP)
90467-09240	ZRE212	09/2019 - 12/2999	4
63395E - CLIP(FOR MAP LAMP)
90467-09240	ZRE212	09/2019 - 12/2999	4
81208 - LAMP SUB-ASSY, MAP
81208-12190A0	ZRE212 FROMAGE,TRIM2#	09/2019 - 12/2999	1
81240 - LAMP ASSY, ROOM, NO.1
81240-12100A9	ZRE212 FROMAGE,TRIM2#	09/2019 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	ZRE212 12V 8W	09/2019 - 12/2999	1
81265C - LENS, MAP LAMP, NO.1
81265-12370	ZRE212	09/2019 - 12/2999	1
81266D - LENS, MAP LAMP, NO.2
81266-12370	ZRE212	09/2019 - 12/2999	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210	ZRE212	09/2019 - 12/2999	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050	ZRE212 12V 5W	09/2019 - 12/2999	1
81936C - BULB ASSY
81936-12160	ZRE212	09/2019 - 12/2999	2
81936C - BULB ASSY
81936-12160	ZRE212	09/2019 - 12/2999	2
Linked diagrams
8202
8603

ZRE212R-AWXNP (2019)
