ZRE212R-AWXNP (2019)

Toyota Corolla/Touring

Production Sep 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )

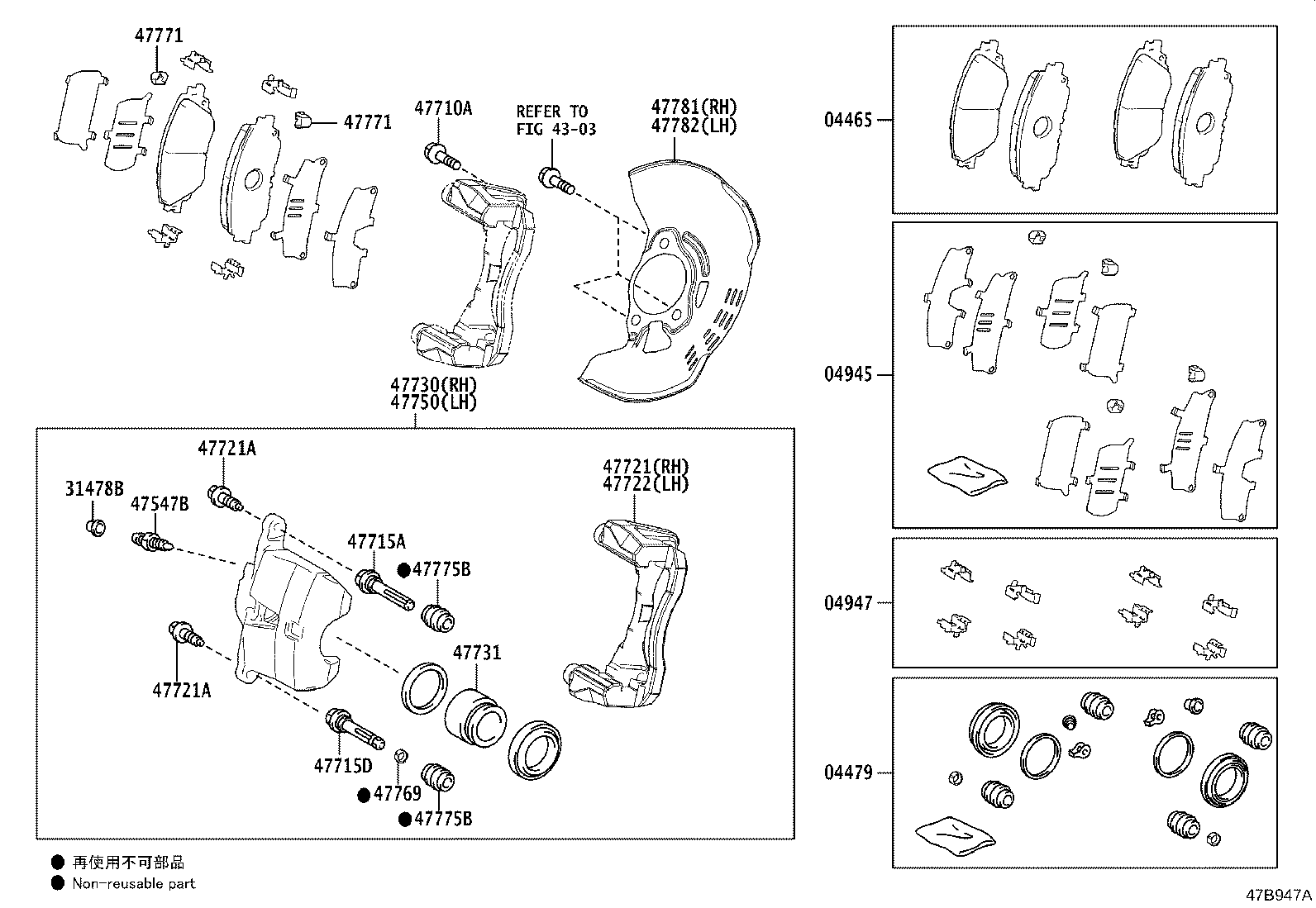

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47771 47771 47775B 47775B 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-12670

ZRE212

MARK ADVICS VC084H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-12130

ZRE212

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-12120

ZRE212

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-47030

ZRE212

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ZRE212

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ZRE212

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ZRE212

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52190

ZRE212

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-12A10

ZRE212

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-12B10

ZRE212

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ZRE212

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ZRE212

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-12B10

ZRE212

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-12B10

ZRE212

 1
47731 - PISTON, FRONT DISC BRAKE
47731-52210

ZRE212

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-12B10

ZRE212

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

ZRE212

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

ZRE212

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

ZRE212

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

ZRE212

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

ZRE212

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-10080

ZRE212

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-10080

ZRE212

 1
