NZE161R-AWXNK (2012)

Toyota Corolla/Axio

Production Jun 2012 - Mar 2015
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1206-1503)CVT ; (1503- )NRE161

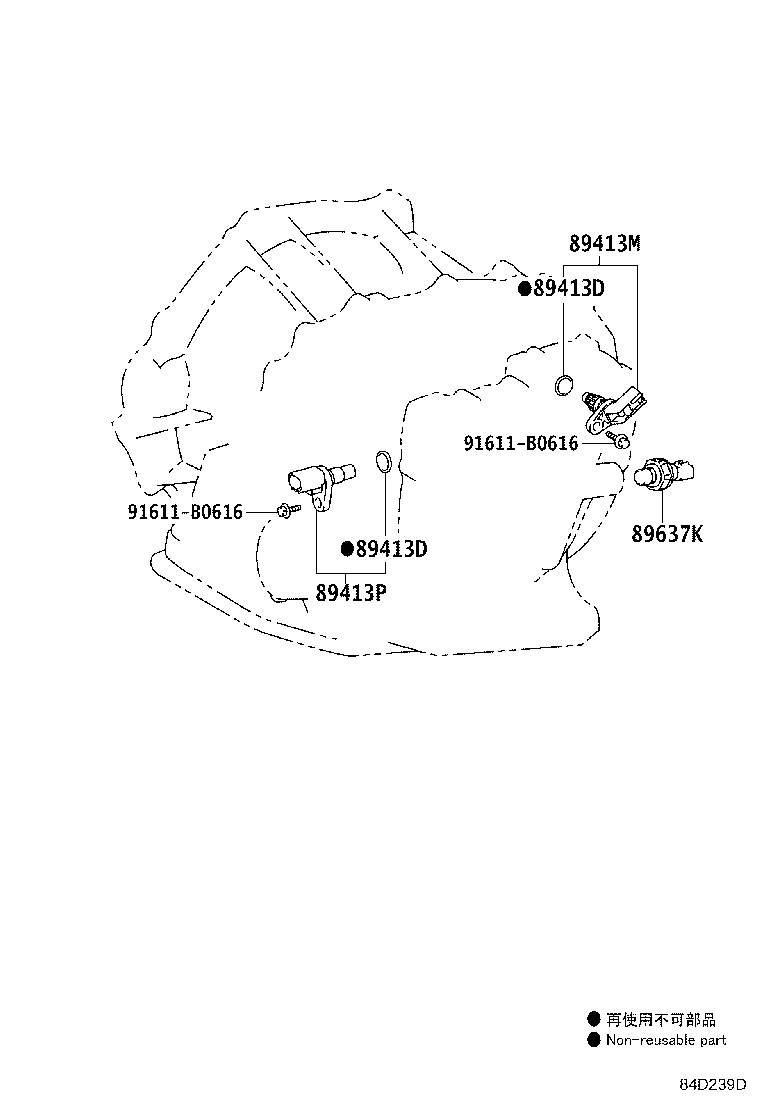

Click highlighted areas on diagram

K312

diagram 89413D 89413D 89413M 89413P 89637K 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZE161..CVT

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NZE161..CVT

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

NZE161..CVT

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

NZE161..CVT

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

NZE161..CVT

 1
Common parts
91611-B0616
