NZE161R-AWMNK (2012)
Toyota Corolla/Axio
Production
Apr 2012
-
Mar 2015
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1204-1503)5D

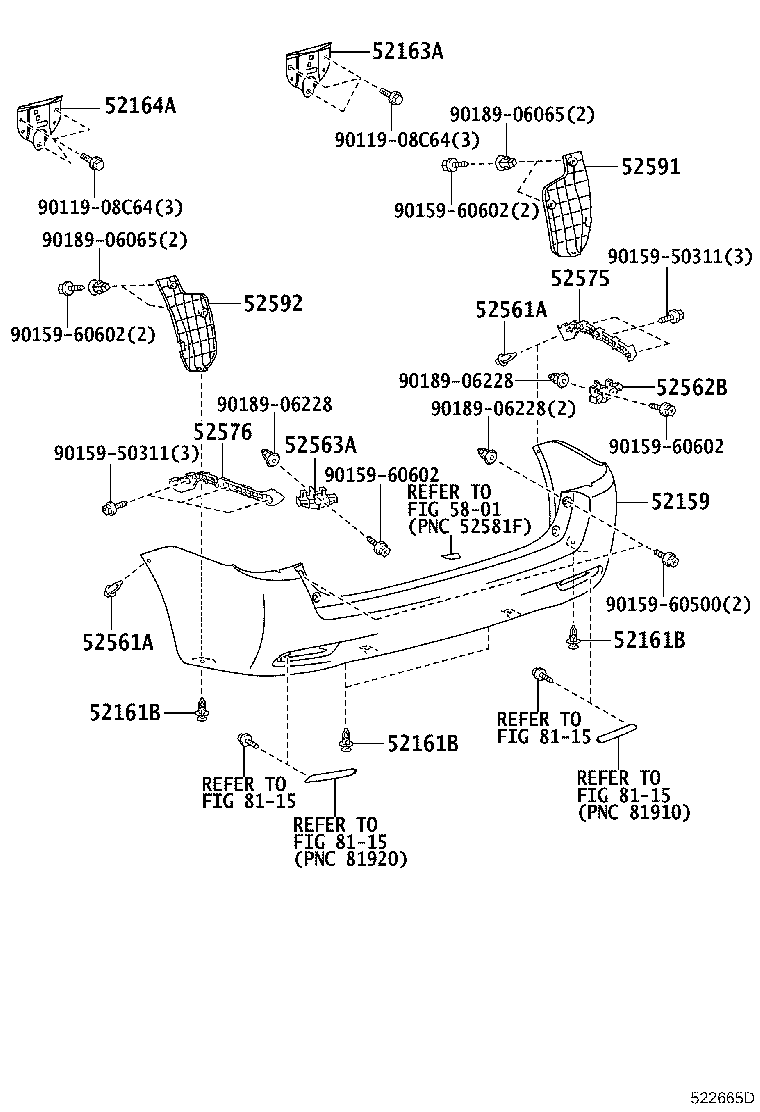

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-13923 |
NZE161..5D PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZE161 |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZE161 |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NZE161 |
4 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-52080 |
NZE161 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-52080 |
NZE161 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
NZE161 |
2 | ||
| 90467-05090B1 |
NZE161 DK.GRAY |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
NZE161 |
2 | ||
| 90467-05090B1 |
NZE161 DK.GRAY |
2 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-13070 |
NZE161..5D |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-13040 |
NZE161..5D |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-13070 |
NZE161..5D |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-13070 |
NZE161..5D |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12310 |
NZE161 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12230 |
NZE161 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-60500 | ||||
| 90159-60602 | ||||
| 90189-06065 | ||||
| 90189-06228 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
