NRE161R-AWXNB (2015)

Toyota Corolla/Axio

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )5D

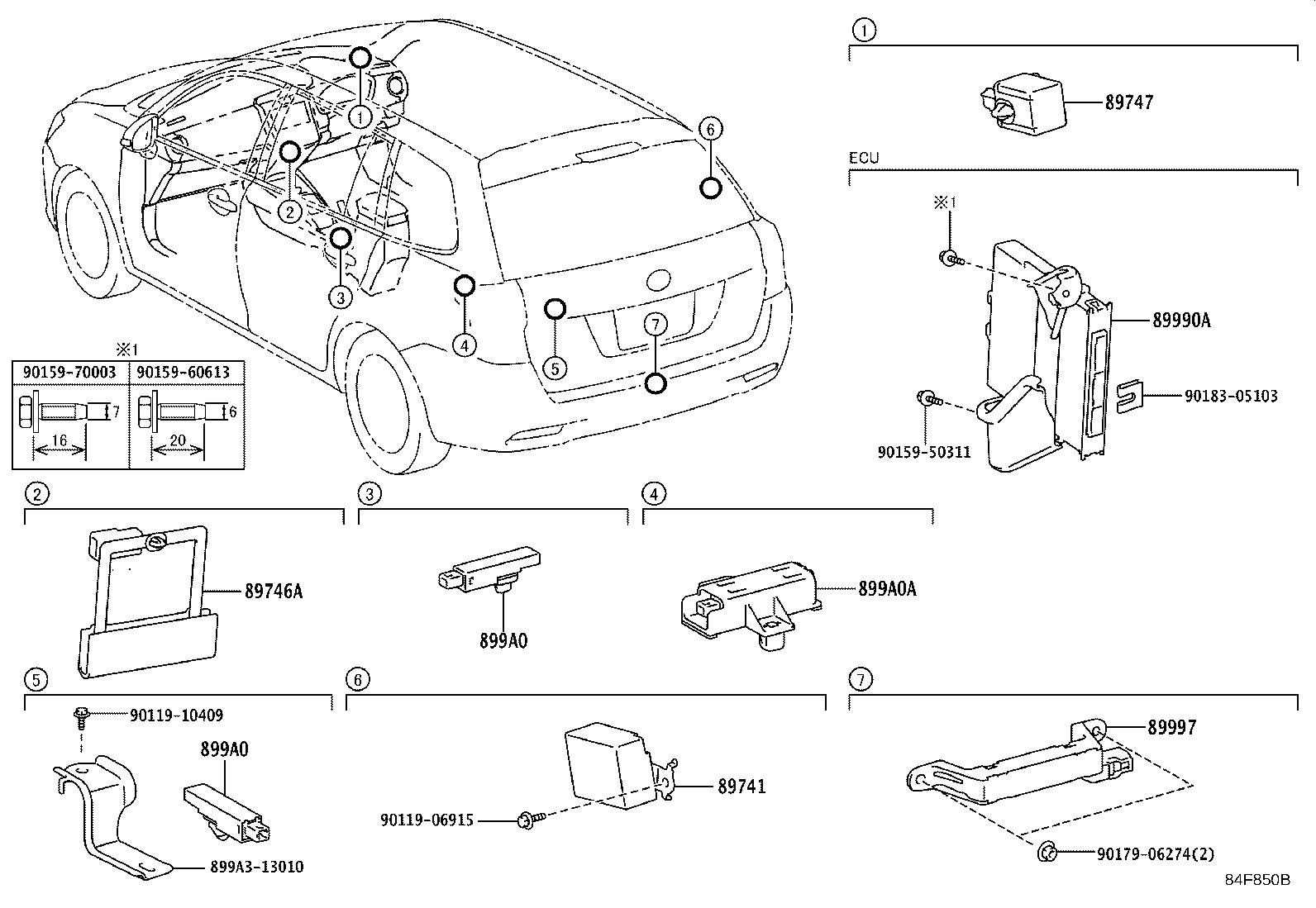

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 89741 89746A 89747 89990A 89997 899A0 899A0 899A0A 899A313010 9011906915 9011910409 9015950311 9015960613 9015970003 9017906274 9018305103
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-12400

NRE161..E

SMART ENTRY-WITH

 1
89740-13060

NRE161..5D

 1
89741-12650

NRE161..E

SMART ENTRY-WITH

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-12070

NRE161..5D

 1
89746-12070

NRE161..E

SMART ENTRY-WITH

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

NRE161..E

SMART ENTRY-WITH

 1
89747-30040

NRE161..5D

 1
89990A - COMPUTER ASSY, SMART KEY
89990-12161

NRE161..E

SMART ENTRY-WITH

 1
89990-13031

NRE161..5D

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

NRE161..5D

 1
89997-30070

NRE161..E

SMART ENTRY-WITH

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

NRE161..5D

 2
899A0-47010

NRE161..E

SMART ENTRY-WITH

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

NRE161..5D

 2
899A0-47010

NRE161..E

SMART ENTRY-WITH

 2
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-52020

NRE161..5D

 1
899A0-52020

NRE161..E

SMART ENTRY-WITH

 1
Common parts
899A3-13010
90119-06915
90119-10409
90159-50311
90159-60613
90159-70003
90179-06274
90183-05103
