NRE161R-AWXNB (2015)
Toyota Corolla/Axio
Production
Mar 2015
-
Oct 2017
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1503-1710)

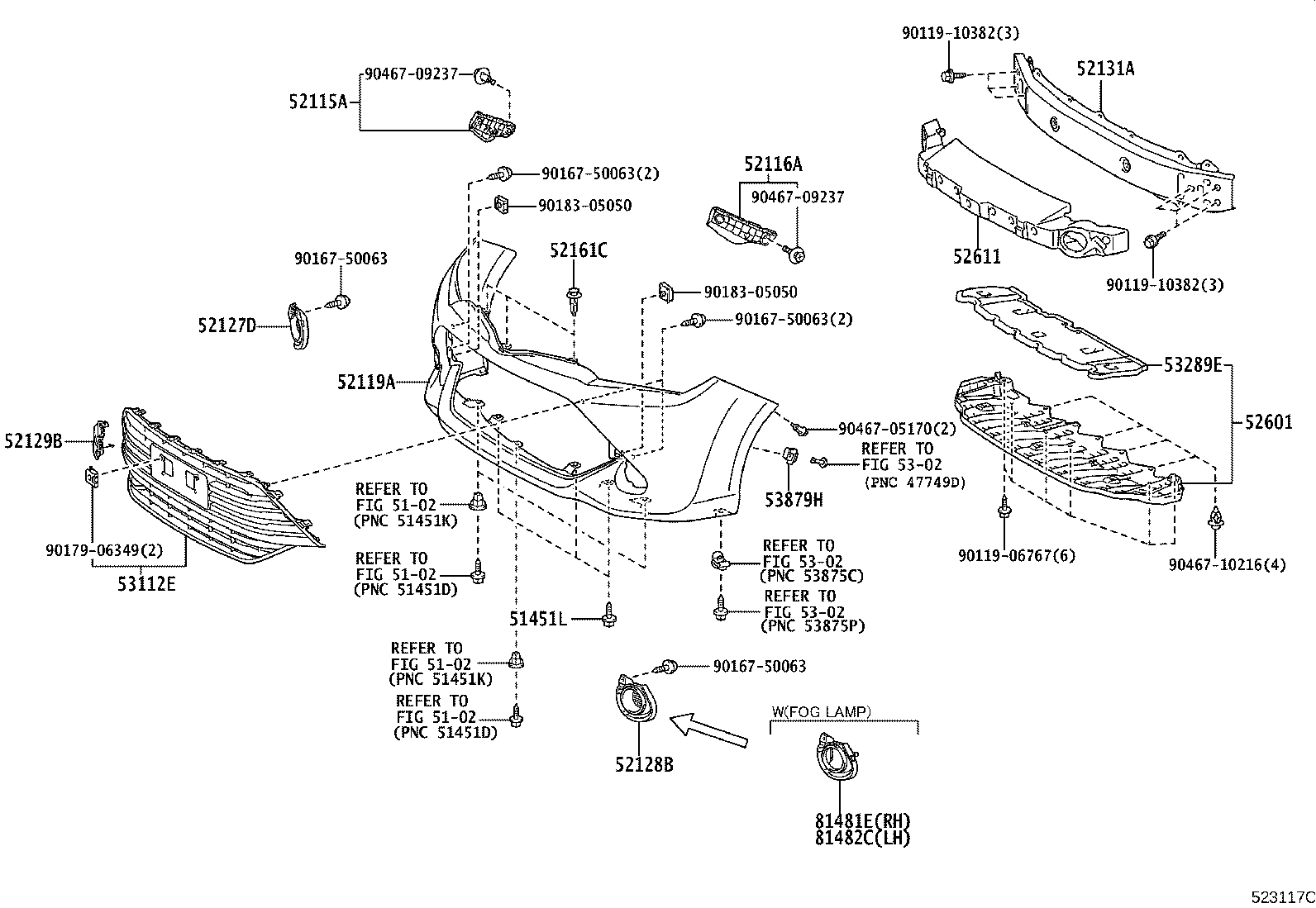

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
NRE161,NZE161 |
3 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12510 |
NRE161,NZE161 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12460 |
NRE161,NZE161 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12980 |
NRE161,NZE161 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-12360 |
NRE161,NZE161..N |
1 | ||
| 52127-12380 |
NRE161..E |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-12310 |
NRE161..E |
1 | ||
| 52128-12280 |
NRE161,NZE161..N |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-12140 |
NRE161..E |
1 | ||
| 52129-12120 |
NRE161,NZE161..N |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52250 |
NRE161,NZE161 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NRE161,NZE161 |
3 | ||
| 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY | ||||
| 52601-12320 |
NRE161,NZE161 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-12350 |
NRE161,NZE161 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-12300 |
NRE161,NZE161..N NO PAINT REQ. |
1 | ||
| 53112-12400 |
NRE161..E NO PAINT REQ. |
1 | ||
| 53289E - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-12070 |
NRE161,NZE161 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
NRE161,NZE161 |
2 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-10382 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-05050 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
