ZWE186R-AHXNBQ (2016)
Toyota Corolla/Auris (Jpp)
Production
Apr 2016
-
May 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )ZWE186

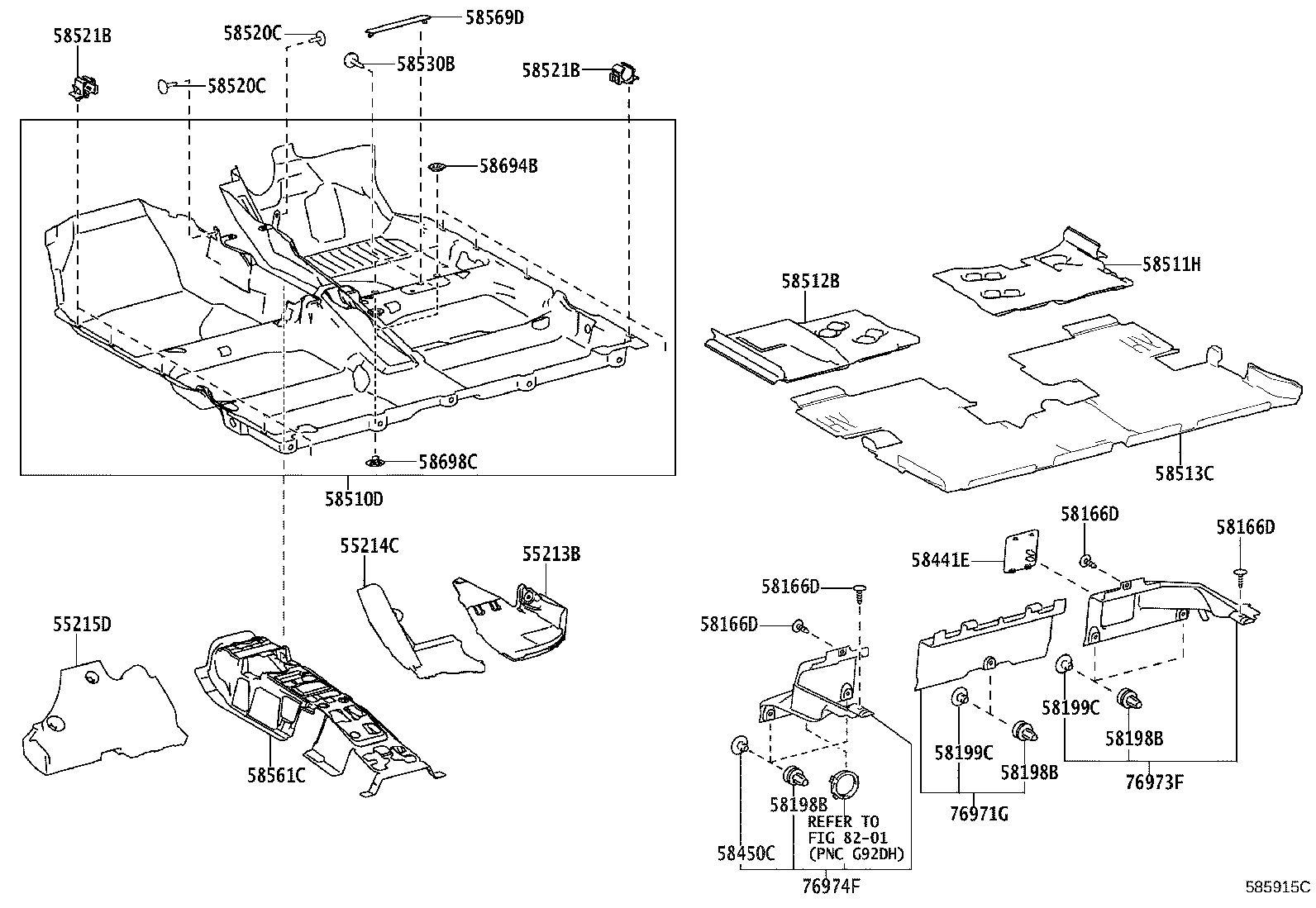

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58166D - CLIP, FLOOR COVER | ||||
| 90467-06020C0 |
ZWE186 BLACK |
4 | ||
| 58166D - CLIP, FLOOR COVER | ||||
| 90467-06020C0 |
ZWE186 BLACK |
4 | ||
| 58166D - CLIP, FLOOR COVER | ||||
| 90467-06020C0 |
ZWE186 BLACK |
4 | ||
| 58166D - CLIP, FLOOR COVER | ||||
| 90467-06020C0 |
ZWE186 BLACK |
4 | ||
| 58198B - CLIP, FOOTREST, NO.1 | ||||
| 58198-02020 |
ZWE186 |
5 | ||
| 58198B - CLIP, FOOTREST, NO.1 | ||||
| 58198-02020 |
ZWE186 |
5 | ||
| 58198B - CLIP, FOOTREST, NO.1 | ||||
| 58198-02020 |
ZWE186 |
5 | ||
| 58199C - CLIP, FOOTREST, NO.2 | ||||
| 58199-02020C0 |
ZWE186 BLACK,TRIM20 |
3 | ||
| 58199-02020C0 |
ZWE186 BLACK,TRIM2# |
3 | ||
| 58199C - CLIP, FOOTREST, NO.2 | ||||
| 58199-02020C0 |
ZWE186 BLACK,TRIM20 |
3 | ||
| 58199-02020C0 |
ZWE186 BLACK,TRIM2# |
3 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-12060C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 58450C - CLIP | ||||
| 58199-02020C0 |
ZWE186 BLACK,TRIM2# |
2 | ||
| 58199-02020C1 |
ZWE186 EU BLACK,TRIM20 |
2 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-12Q00C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 58513C - MAT, FLOOR, FRONT CENTER | ||||
| 58513-12310 |
ZWE186 |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164C7 |
NRE180,ZRE18#,ZWE186 BLACK,TRIM2# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164C7 |
NRE180,ZRE18#,ZWE186 BLACK,TRIM2# |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 90467-0704923 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
ZWE186 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
ZWE186 |
2 | ||
| 76971G - COVER, REAR UNDER | ||||
| 76971-12010C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 76973F - COVER, REAR UNDER SIDE, RH | ||||
| 76973-12010C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| 76974F - COVER, REAR UNDER SIDE, LH | ||||
| 76974-12010C0 |
ZWE186 BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 8201 | ||||
