ZWE186R-AHXNBQ (2016)

Toyota Corolla/Auris (Jpp)

Production Apr 2016 - May 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )2ZRFXE

Click highlighted areas on diagram

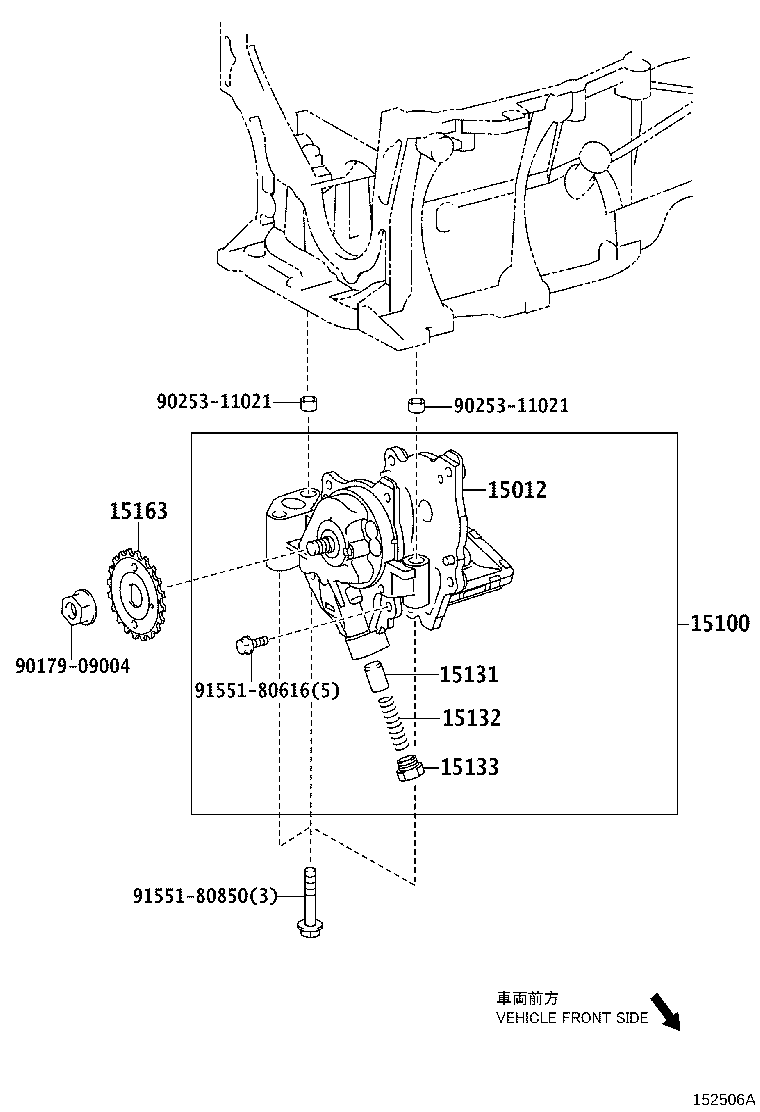

diagram 15012 15100 15131 15132 15133 15163 9017909004 9025311021 9025311021 9155180616 9155180850
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-37040

2ZRFXE..ZWE186

 1
Common parts
90179-09004
90253-11021
91551-80616
91551-80850
