ZRE182R-AHXNKQ (2015)
Toyota Corolla/Auris (Jpp)

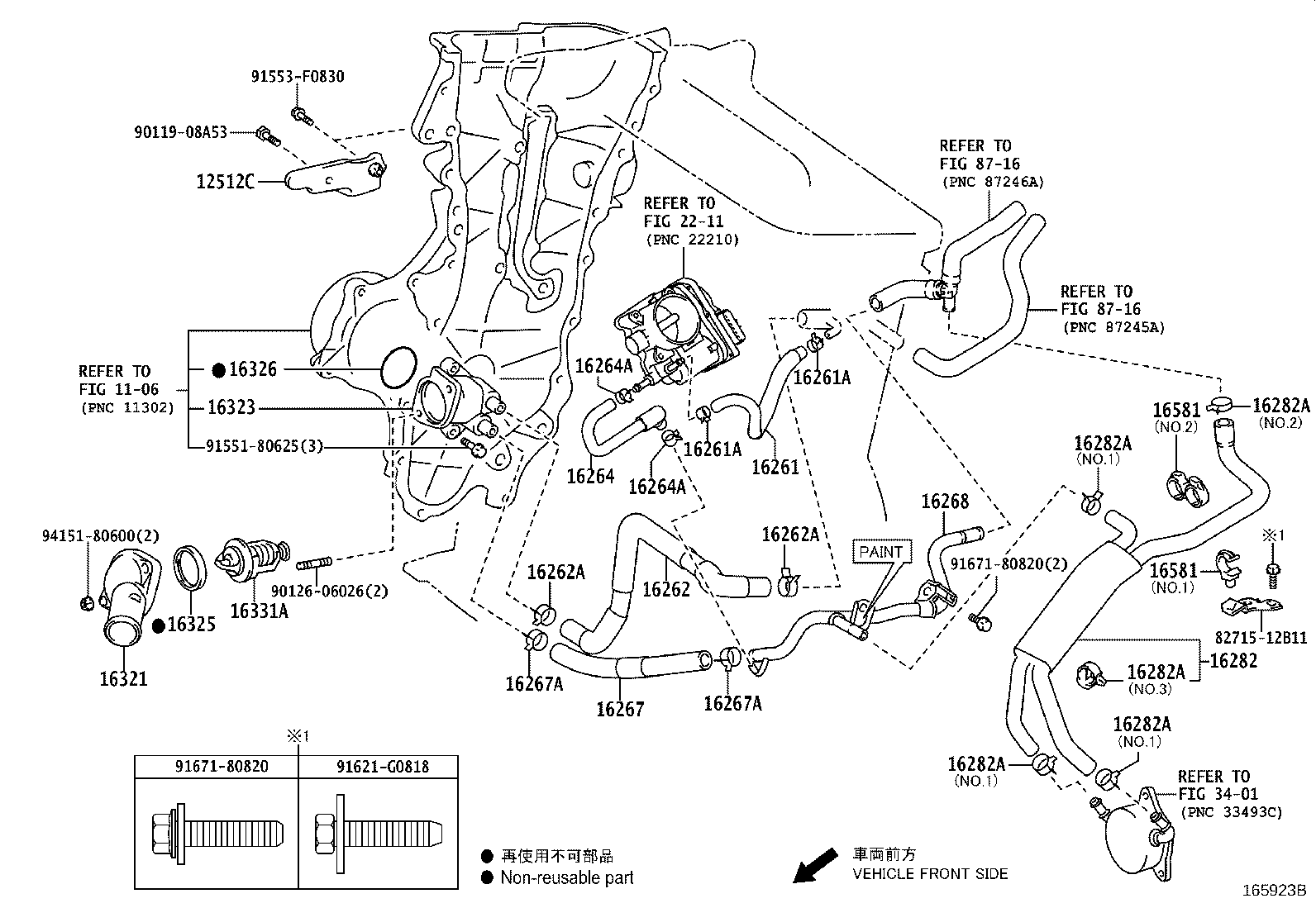

ILLUST NO. 2 OF 2(1503- )2ZRFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
2ZRFE..ZRE182 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37052 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16261-37052 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 96137-41501 |
1ZRFAE,2ZR#..ZRE18#,ZWE186 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 96137-41501 |
1ZRFAE,2ZR#..ZRE18#,ZWE186 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16262-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37042 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16264-37042 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFAE,2ZR#..ZRE18#,ZWE186 |
2 | ||
| 96137-41501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFAE,2ZR#..ZRE18#,ZWE186 |
2 | ||
| 96137-41501 |
1ZRFAE,2ZRFE..ZRE18# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16267-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# NO.1,NO.2 |
2 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# NO.1,NO.2 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# NO.1,NO.2 |
2 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18# NO.1,NO.2 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37021 |
1ZRFAE,2ZRFE..ZRE18#..CVT PAINTED=BLACK |
1 | ||
| 16268-37021 |
1ZRFAE,2ZRFE..ZRE18#..CVT |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37080 |
1ZRFAE,2ZRFE..ZRE18#..CVT |
1 | ||
| 16260-37080 |
1ZRFAE,2ZRFE..ZRE18#..CVT |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 16581-37090 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.3 |
1 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 96136-42501 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96134-41900 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(L) |
3 | ||
| 96136-52201 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1,(J) |
3 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16321-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37040 |
2ZRFE..ZRE182 |
1 | ||
| 16323-37021 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16325-28010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFAE,2ZRFE..ZRE18# |
1 | ||
| 16326-37030 |
2ZRFE..ZRE182 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03144 |
1ZRFAE,2ZRFE..ZRE18# *WAX 82-95,KUZEH |
1 | ||
| 90916-03151 |
2ZRFE..ZRE182 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 16581-21030 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| 16581-21060 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 16581-21030 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21060 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 16581-21030 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| 16581-21060 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.2 |
1 | ||
| 16581-21030 |
1ZRFAE,2ZRFE..ZRE18#..CVT NO.1 |
1 | ||
| Common parts | ||||
| 82715-12B11 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91621-G0818 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3401 | ||||
| 8716 | ||||
