ZRE182R-AHXDKQ (2015)

Toyota Corolla/Auris (Jpp)

Production Mar 2015 - May 2018
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )2ZRFE..CVT

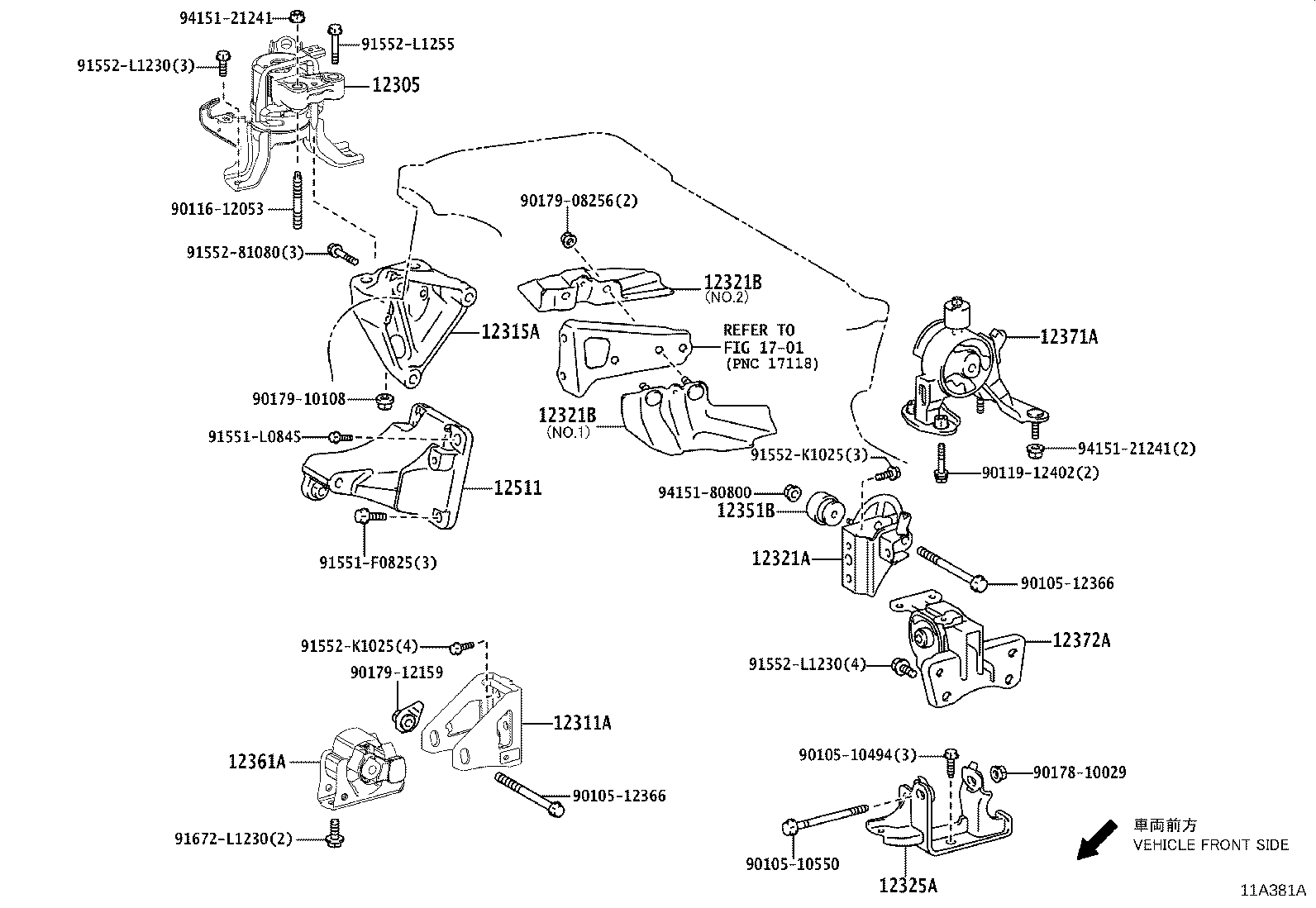

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351B 12361A 12371A 12372A 12511 1701 9010510494 9010510550 9010512366 9010512366 9011612053 9011912402 9017810029 9017908256 9017910108 9017912159 91551F0825 91551L0845 9155281080 91552K1025 91552K1025 91552L1230 91552L1230 91552L1255 91672L1230 9415121241 9415121241 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37150

1ZRFAE,2ZRFE..ZRE18#

 1
12305-37150

1ZRFAE,2ZRFE..ZRE18#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37170

1ZRFAE,2ZRFE..ZRE18#

 1
12311-37170

1ZRFAE,2ZRFE..ZRE18#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

1ZRFAE,2ZRFE..ZRE18#

 1
12315-37030

1ZRFAE,2ZRFE..ZRE18#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37140

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12321-37140

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

1ZRFAE,2ZRFE..ZRE18#

NO.2

 1
43409-12060

1ZRFAE,2ZRFE..ZRE18#

NO.1

 1
43498-12051

1ZRFAE,2ZRFE..ZRE18#

NO.2

 1
43409-12060

1ZRFAE,2ZRFE..ZRE18#

NO.1

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-12051

1ZRFAE,2ZRFE..ZRE18#

NO.2

 1
43409-12060

1ZRFAE,2ZRFE..ZRE18#

NO.1

 1
43498-12051

1ZRFAE,2ZRFE..ZRE18#

NO.2

 1
43409-12060

1ZRFAE,2ZRFE..ZRE18#

NO.1

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22300

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12325-22300

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12351B - DAMPER, ENGINE MOUNTING
12351-23010

1ZRFAE,2ZR#..ZRE18#,ZWE186..CVT

 1
12351-37120

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37170

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12361-37171

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37140

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12371-37411

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12371-37410

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37210

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12372-37210

1ZRFAE,2ZRFE..ZRE18#..CVT

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

1ZRFAE,2ZRFE..ZRE18#

 1
12501-37020

2ZRFE..ZRE182

 1
Common parts
90105-10494
90105-10550
90105-12366
90116-12053
90119-12402
90178-10029
90179-08256
90179-10108
90179-12159
91551-F0825
91551-L0845
91552-81080
91552-K1025
91552-L1230
91552-L1255
91672-L1230
94151-21241
94151-80800
Linked diagrams
1701
