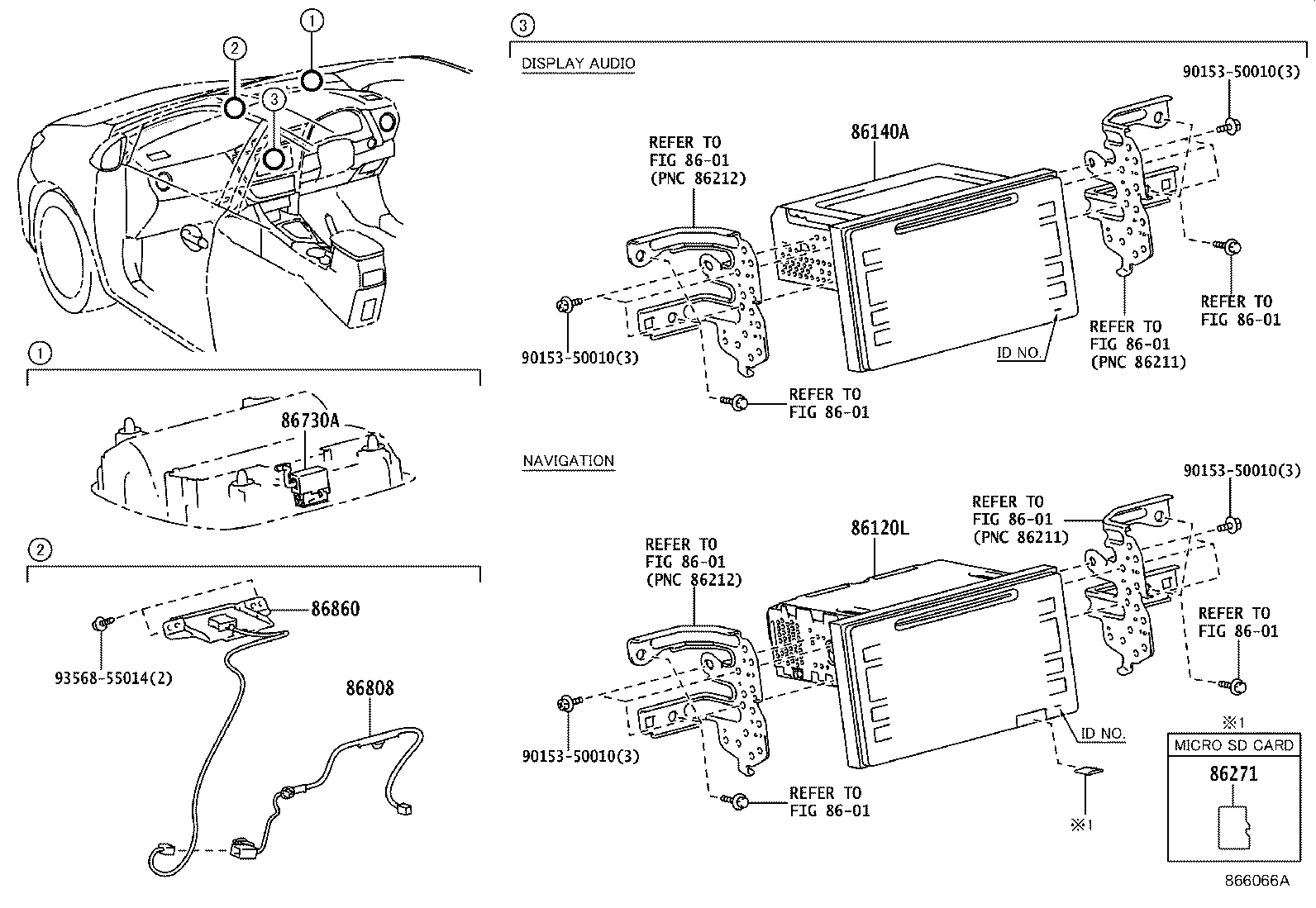

Toyota Corolla/auris (jpp) ZRE182 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86804-12010	ZRE182 FUJITSU TEN,ID100521,AUDIO-AVN & 6SPEAKER	03/2015 - 08/2015	1
86804-12011	ZRE182,ZWE186 FUJITSU TEN,ID100521,AUDIO-AVN & 6SPEAKER	09/2015 - 12/2999	1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-12080	ZRE182 FUJITSU TEN,ID100522,AUDIO-*DA(7INCH DISPLAY) & 6SPEAKER	03/2015 - 08/2015	1
86140-12071	ZRE182,ZWE186 FUJITSU TEN,ID100523	09/2015 - 12/2999	1
86140-12081	ZRE182,ZWE186 FUJITSU TEN,ID100522,AUDIO-*DA(7INCH DISPLAY) & 6SPEAKER	09/2015 - 12/2999	1
86140-12070	ZRE182 FUJITSU TEN,ID100523	03/2015 - 08/2015	1
86271 - DISC, DISC PLAYER
86271-0E173	ZRE182,ZWE186 AUDIO-AVN & 6SPEAKER	09/2016 - 10/2017	1
86271-0E171	ZRE182 AUDIO-AVN & 6SPEAKER	03/2015 - 10/2015	1
86271-0E174	ZRE182,ZWE186 AUDIO-AVN & 6SPEAKER	10/2017 - 05/2018	1
86271-0E172	ZRE182,ZWE186 AUDIO-AVN & 6SPEAKER	10/2015 - 08/2016	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-20060	ZRE182;ZRE181..N	08/2012 - 03/2015	1
86730-20060	ZRE182..N STEERING SWITCH-WITHOUT	08/2012 - 03/2015	1
86730-20060	NRE180,ZRE18#,ZWE186	03/2015 - 05/2018	1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-12110	ZRE182,ZWE186 AUDIO-*DA(7INCH DISPLAY) & 6SPEAKER	03/2015 - 12/2999	1
86808-12110	ZRE182,ZWE186 AUDIO-AVN & 6SPEAKER	03/2015 - 12/2999	1
86860 - ANTENNA ASSY, NAVIGATION
86860-12150	ZRE182,ZWE186 AUDIO-AVN & 6SPEAKER	03/2015 - 12/2999	1
86860-12150	ZRE182,ZWE186 AUDIO-*DA(7INCH DISPLAY) & 6SPEAKER	03/2015 - 12/2999	1
Common parts
90153-50010
93568-55014
Linked diagrams
8601

ZRE182R-AHFNKQ (2015)
