ZRE182R-AHFDKQ (2015)

Toyota Corolla/Auris (Jpp)

Production Mar 2015 - May 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1503- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

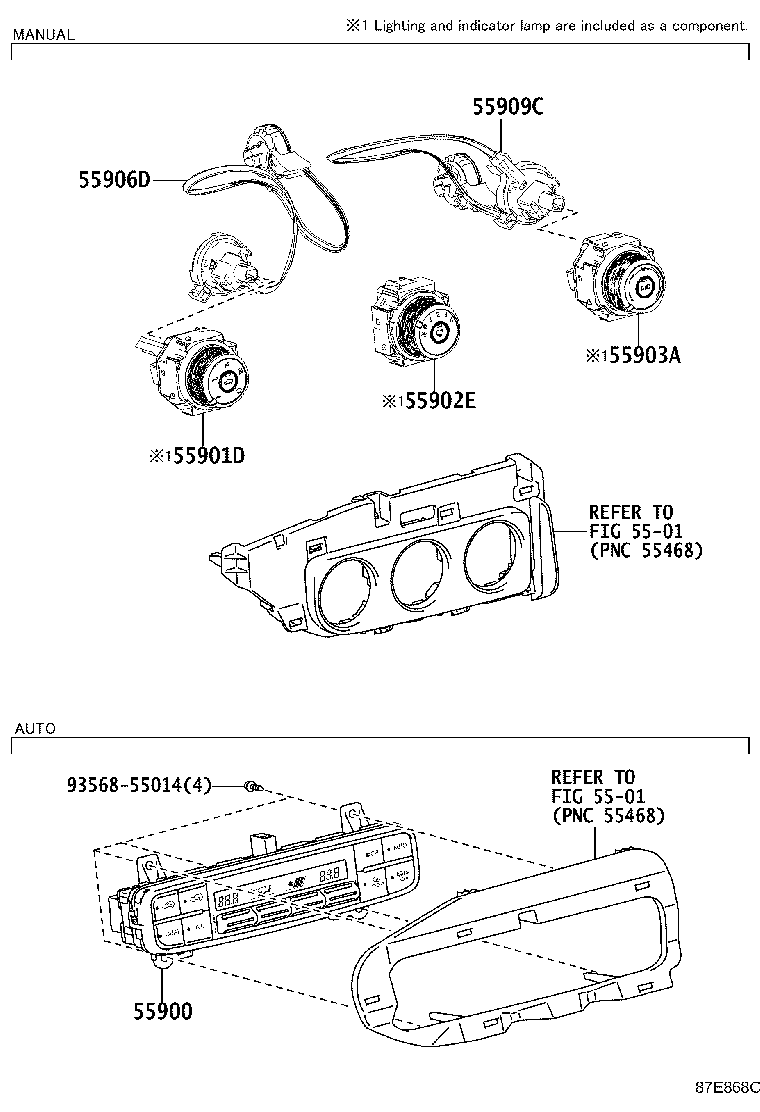

diagram 5501 5501 55900 55901D 55902E 55903A 55906D 55909C 9356855014
Part # Description Qty Price
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-12230

ZRE182;NRE180,ZRE181..6F

 1
55901-12240

ZRE182;NRE180,ZRE181..6F

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-12160

ZRE182;NRE180,ZRE181..6F

 1
55902-12300

ZRE182;NRE180,ZRE181..6F

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-12190

ZRE182;NRE180,ZRE181..6F

 1
55903-12240

ZRE182;NRE180,ZRE181..6F

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-26060

ZRE182;NRE180,ZRE181..6F

 1
55906-26060

ZRE182;NRE180,ZRE181..6F

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26080

ZRE182;NRE180,ZRE181..6F

 1
55909-26080

ZRE182;NRE180,ZRE181..6F

 1
Common parts
93568-55014
Linked diagrams
5501
