ZRE181R-AHXNPN (2015)
Toyota Corolla/Auris (Jpp)

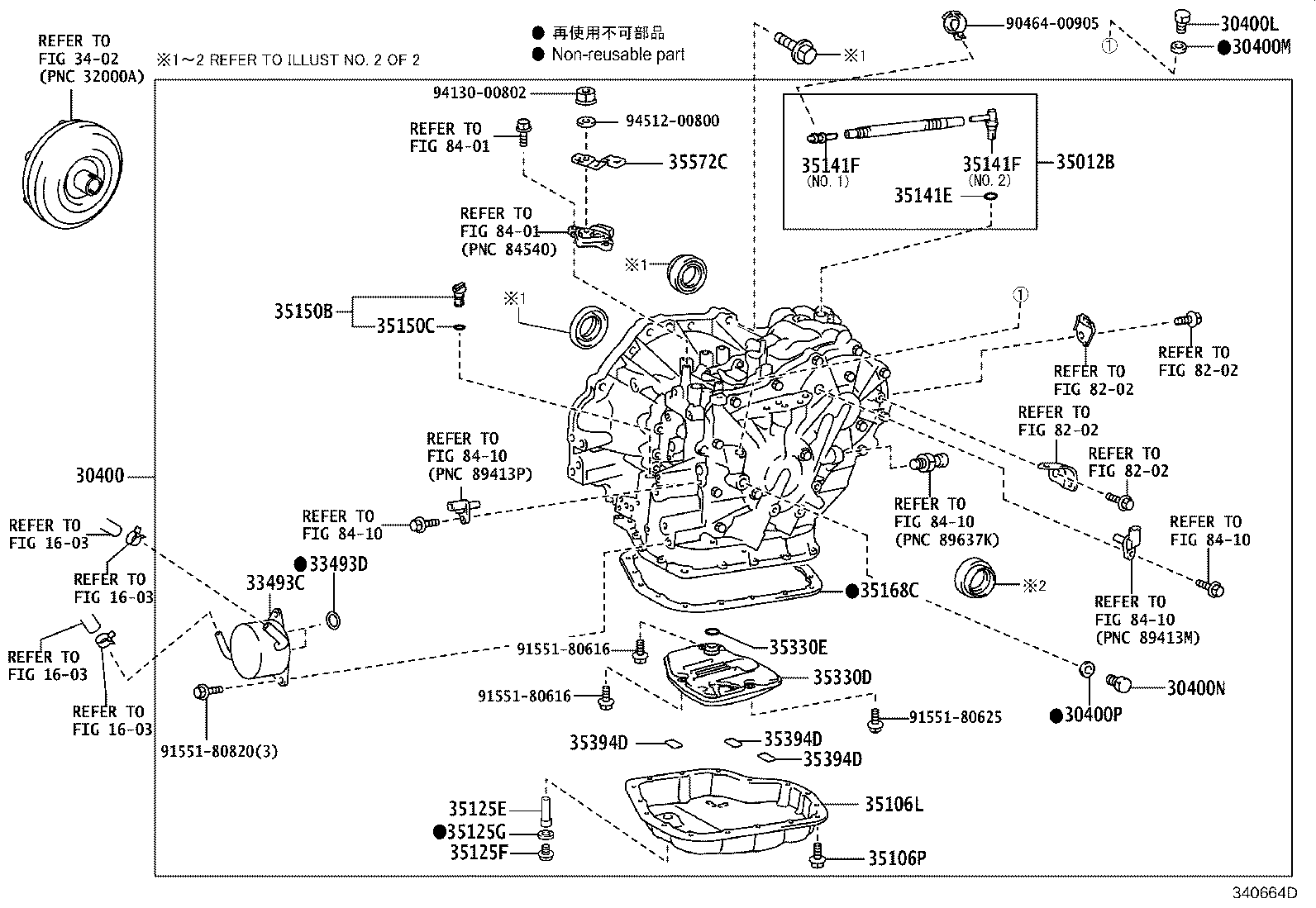

ILLUST NO. 1 OF 2(1503- )ZRE18#..CVT
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-20020 |
ZRE18#..CVT K311 |
1 | ||
| 30400-20110 |
ZRE18#..CVT K313 |
1 | ||
| 30400L - PLUG , FILLER(CVT) | ||||
| 90341-12025 |
ZRE18#..CVT |
1 | ||
| 90341-12025 |
ZRE18#..CVT |
1 | ||
| 30400M - GASKET , FILLER PLUG(CVT) | ||||
| 90430-12221 |
ZRE18#..CVT |
1 | ||
| 90430-12221 |
ZRE18#..CVT |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
ZRE18#..CVT |
1 | ||
| 90341-18077 |
ZRE18#..CVT |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZRE18#..CVT |
1 | ||
| 90430-18008 |
ZRE18#..CVT |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-20100 |
ZRE18#..CVT |
1 | ||
| 33493-52030 |
ZRE18#..CVT |
1 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
ZRE18#..CVT |
2 | ||
| 90301-20012 |
ZRE18#..CVT |
2 | ||
| 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 35012-12100 |
ZRE18#..CVT |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12210 |
ZRE18#..CVT |
1 | ||
| 35106-20040 |
ZRE18#..CVT |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZRE18#..CVT |
16 | ||
| 90119-06173 |
ZRE18#..CVT |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-20490 |
ZRE18#..CVT |
1 | ||
| 35125-12480 |
ZRE18#..CVT |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZRE18#..CVT |
1 | ||
| 90341-12034 |
ZRE18#..CVT |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZRE18#..CVT |
1 | ||
| 90430-12008 |
ZRE18#..CVT |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE18#..CVT |
1 | ||
| 90301-06005 |
ZRE18#..CVT |
1 | ||
| 90301-06021 |
ZRE18#..CVT |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03216 |
ZRE18#..CVT NO.1 |
1 | ||
| 90930-03191 |
ZRE18#..CVT NO.2 |
1 | ||
| 90930-03216 |
ZRE18#..CVT NO.1 |
1 | ||
| 90930-03191 |
ZRE18#..CVT NO.2 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03216 |
ZRE18#..CVT NO.1 |
1 | ||
| 90930-03191 |
ZRE18#..CVT NO.2 |
1 | ||
| 90930-03216 |
ZRE18#..CVT NO.1 |
1 | ||
| 90930-03191 |
ZRE18#..CVT NO.2 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
ZRE18#..CVT |
1 | ||
| 35150-48010 |
ZRE18#..CVT |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZRE18#..CVT |
1 | ||
| 90301-09173 |
ZRE18#..CVT |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12091 |
ZRE18#..CVT |
1 | ||
| 35168-12090 |
ZRE18#..CVT |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W080 |
ZRE18#..CVT |
1 | ||
| 35330-12050 |
ZRE18#..CVT |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22019 |
ZRE18#..CVT |
1 | ||
| 90301-22014 |
ZRE18#..CVT |
1 | ||
| 90301-22014 |
ZRE18#..CVT |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35394-30011 |
ZRE18#..CVT |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12170 |
ZRE18#..CVT |
1 | ||
| 35572-12160 |
ZRE18#..CVT |
1 | ||
| Common parts | ||||
| 90464-00905 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
