ZRE181R-AHFNPN (2015)

Toyota Corolla/Auris (Jpp)

Production Mar 2015 - May 2018
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(1503- )

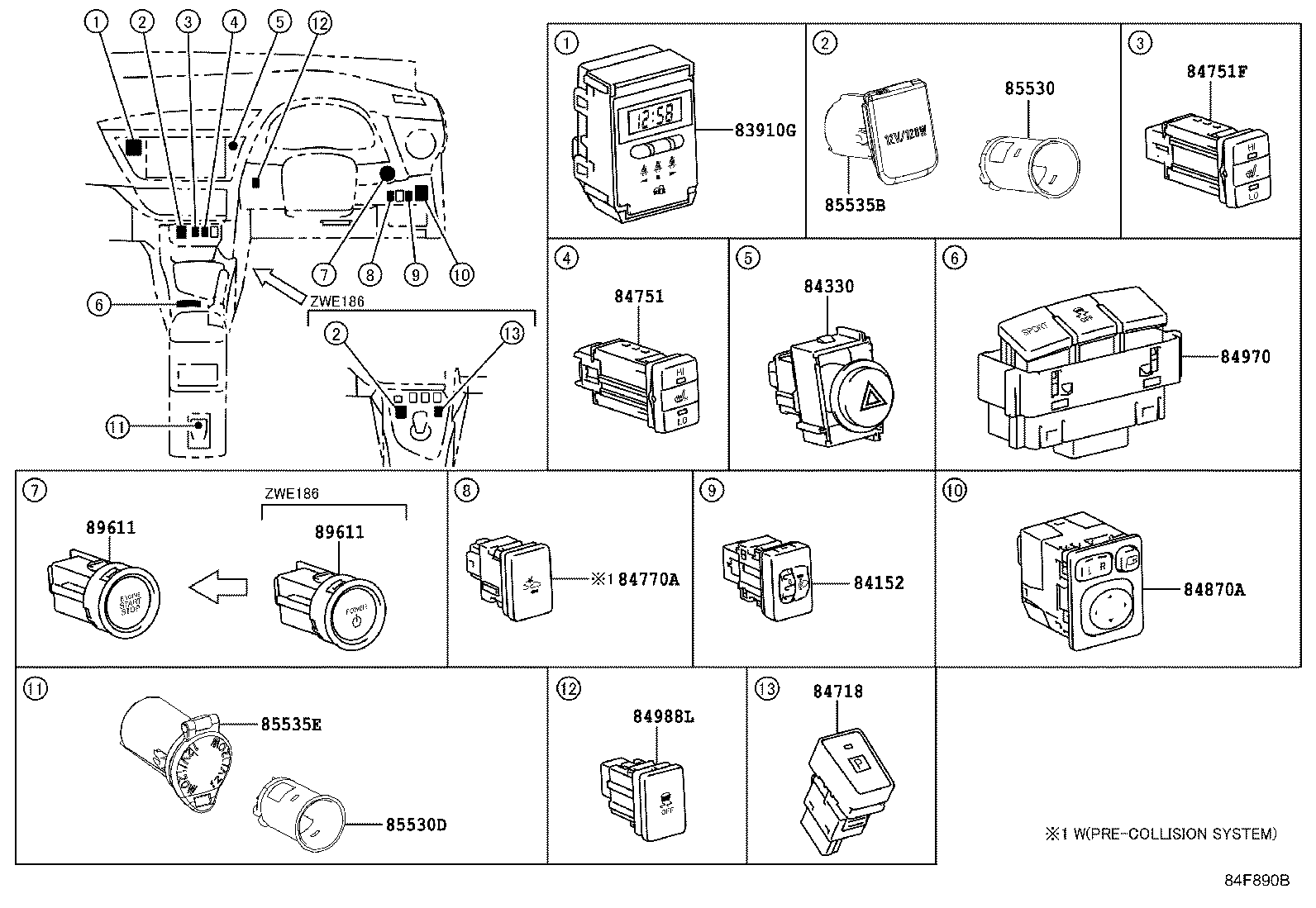

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 83910G 84152 84330 84718 84751 84751F 84770A 84870A 84970 84988L 85530 85530D 85535B 85535E 89611 89611
Part # Description Qty Price
83910G - CLOCK ASSY
83910-12600

NRE180,ZRE18#

 1
83910-12660

NRE180,ZRE18#,ZWE186

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-52130

NRE180,ZRE18#

 1
84152-12111

NRE180,ZRE18#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12550

NRE180,ZRE18#

 1
84332-12580

NRE180,ZRE18#,ZWE186

 1
84751 - SWITCH, SEAT HEATER
84751-47040

ZRE182..N;ZRE181..6F..N

SEAT COVER MATERIAL-LEATHER

 1
84751-42072

ZRE182..N;ZRE181..6F..N

SEAT COVER MATERIAL-LEATHER

 1
84751F - SWITCH, SEAT HEATER
84751-47050

ZRE182..N;ZRE181..6F..N

SEAT COVER MATERIAL-LEATHER

 1
84751-42082

ZRE182..N;ZRE181..6F..N

SEAT COVER MATERIAL-LEATHER

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-12240

NRE180,ZRE18#,ZWE186

 1
84870-28030

NRE180,ZRE18#

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D021

NRE180,ZRE18#,ZWE186

 1
85530-0D020

NRE180,ZRE18#,ZWE186

 1
85530-0D020

NRE180,ZRE18#

 1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-0D021

NRE180,ZRE18#,ZWE186

 1
85530-0D020

NRE180,ZRE18#

 1
85530-0D020

NRE180,ZRE18#,ZWE186

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-12060

NRE180,ZRE18#

 1
85535-12060

NRE180,ZRE18#,ZWE186

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-12050C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
85535-12050C0

NRE180,ZRE18#,ZWE186

BLACK,TRIM2#

 1
89611 - SWITCH, PUSH START
89611-42011

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-33031

ZRE181..6F..N

"S PACKAGE"&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-42010

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-42012

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611 - SWITCH, PUSH START
89611-42011

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-33031

ZRE181..6F..N

"S PACKAGE"&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-42010

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
89611-42012

ZRE181..6F..N

WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(ANSWER BACK BUZZER)

 1
