ZRE181R-AHFNPN (2012)
Toyota Corolla/Auris (Jpp)
(1208- )

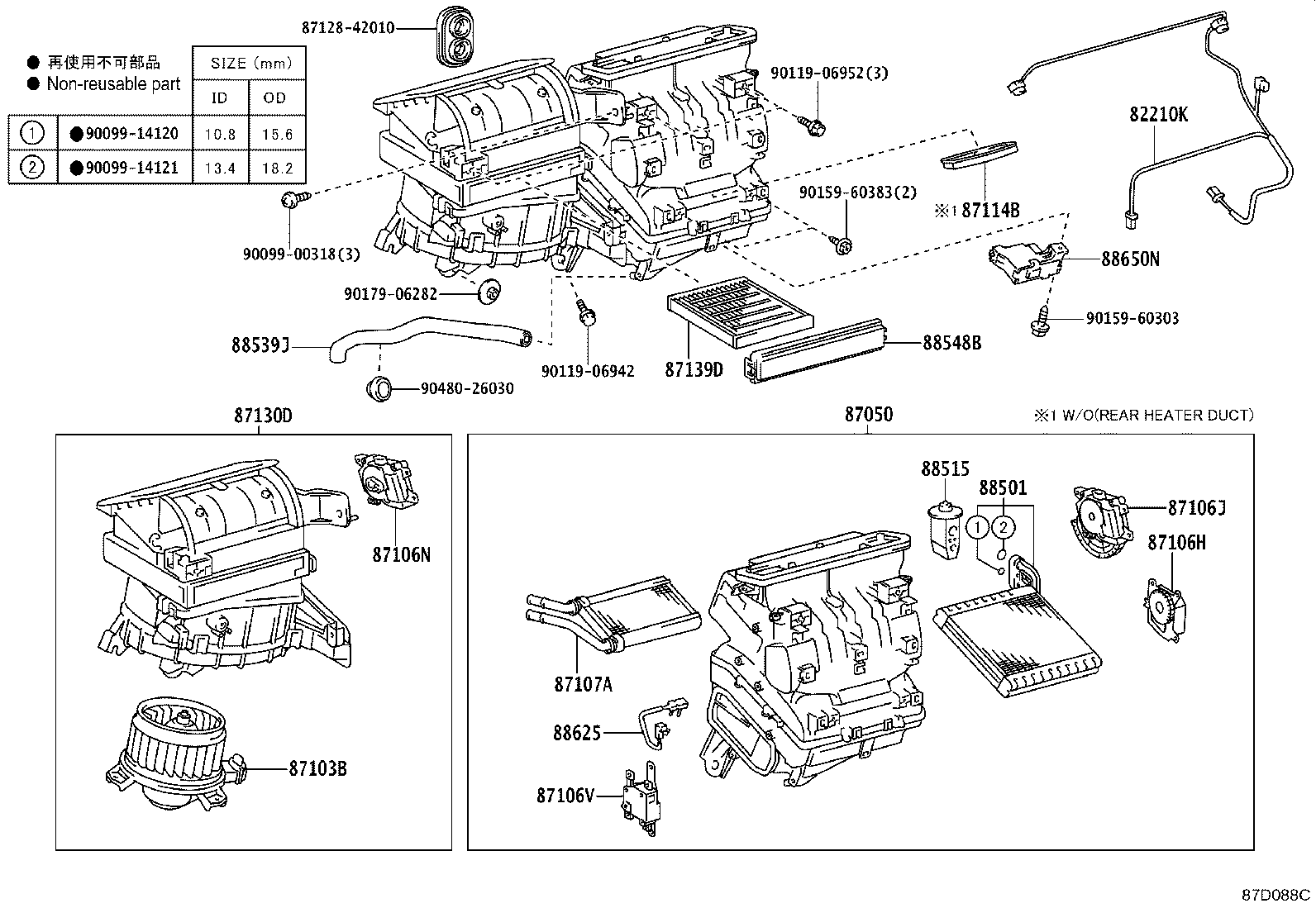

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12311 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87050-12330 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87103-42081 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42120 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106-42110 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
NRE180,ZRE18# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
NRE180,ZRE18# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12431 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87130-12511 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26150 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-52040 |
NRE180,ZRE18# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
NRE180,ZRE18# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
NRE180,ZRE18# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12210 |
NRE180,ZRE18# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
NRE180,ZRE18# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NRE180,ZRE18# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12G40 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88650-12G60 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1208- )
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12040 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12311 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87050-12330 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42070 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87103-42081 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-47170 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106-12170 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-42100 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42120 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106-42110 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-42090 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87106-75010 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
NRE180,ZRE18# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
NRE180,ZRE18# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12431 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| 87130-12511 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-52040 |
NRE180,ZRE18# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
NRE180,ZRE18# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12100 |
NRE180,ZRE18# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12210 |
NRE180,ZRE18# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
NRE180,ZRE18# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NRE180,ZRE18# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12G40 |
ZRE182..N;ZRE181..6F..N "S PACKAGE"&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88650-12G60 |
ZRE182;NRE180,ZRE181..6F |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
