ZRE181R-AHFNPN (2012)

Toyota Corolla/Auris (Jpp)

Production Aug 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208-1503)

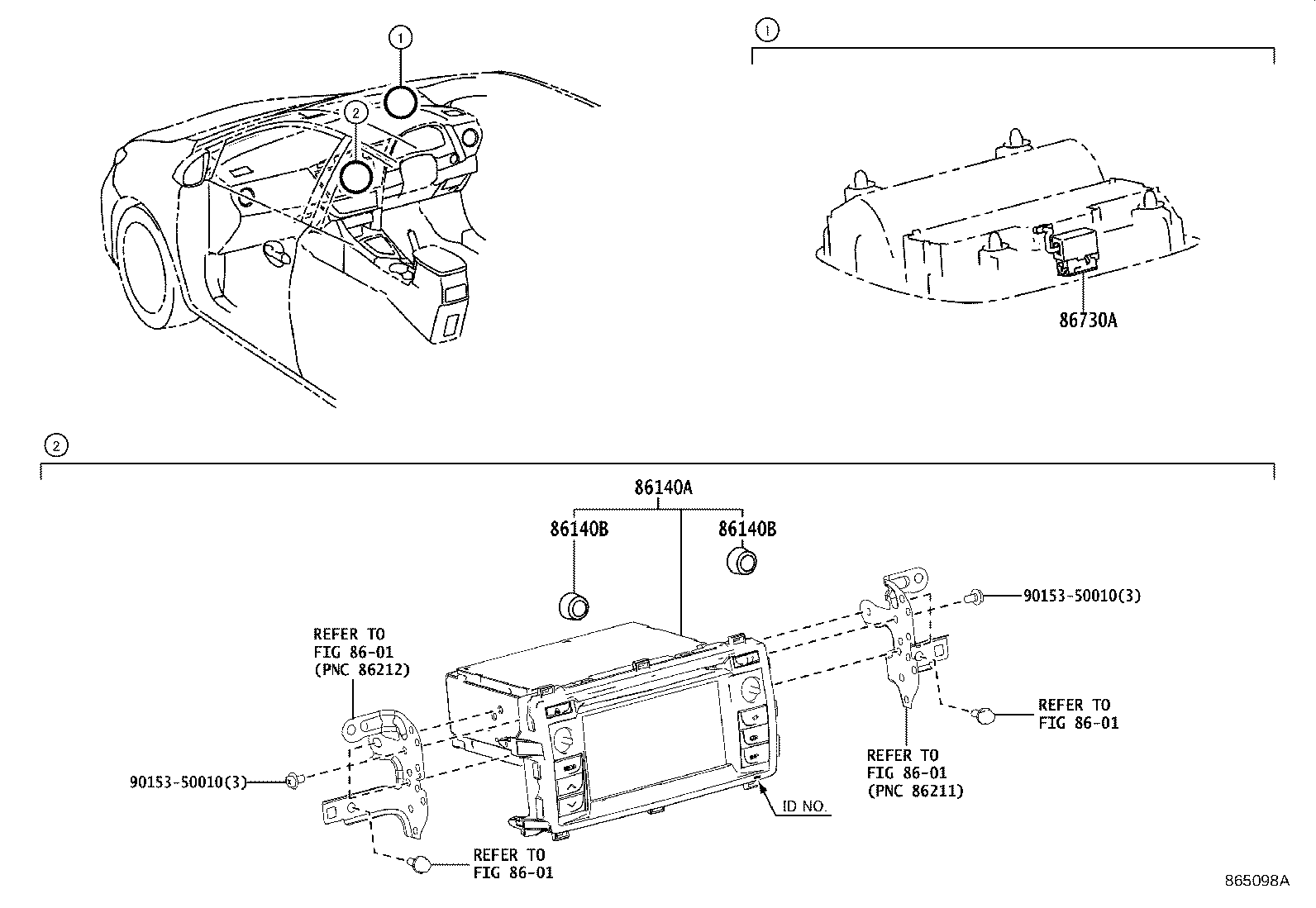

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86140B 86140B 86730A 9015350010 9015350010
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-12040

ZRE181..N

PANASONIC,ID=59023

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-24163

ZRE181..N

 2
90010-24163

ZRE181..N

AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-24163

ZRE181..N

 2
90010-24163

ZRE181..N

AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))

 2
86730A - MICROPHONE ASSY, TELEPHONE
86730-20060

ZRE182;ZRE181..N

 1
86730-20060

ZRE181..N

AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))

 1
Common parts
90153-50010
Linked diagrams
8601
