Toyota Corolla/auris (jpp) ZRE181 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty

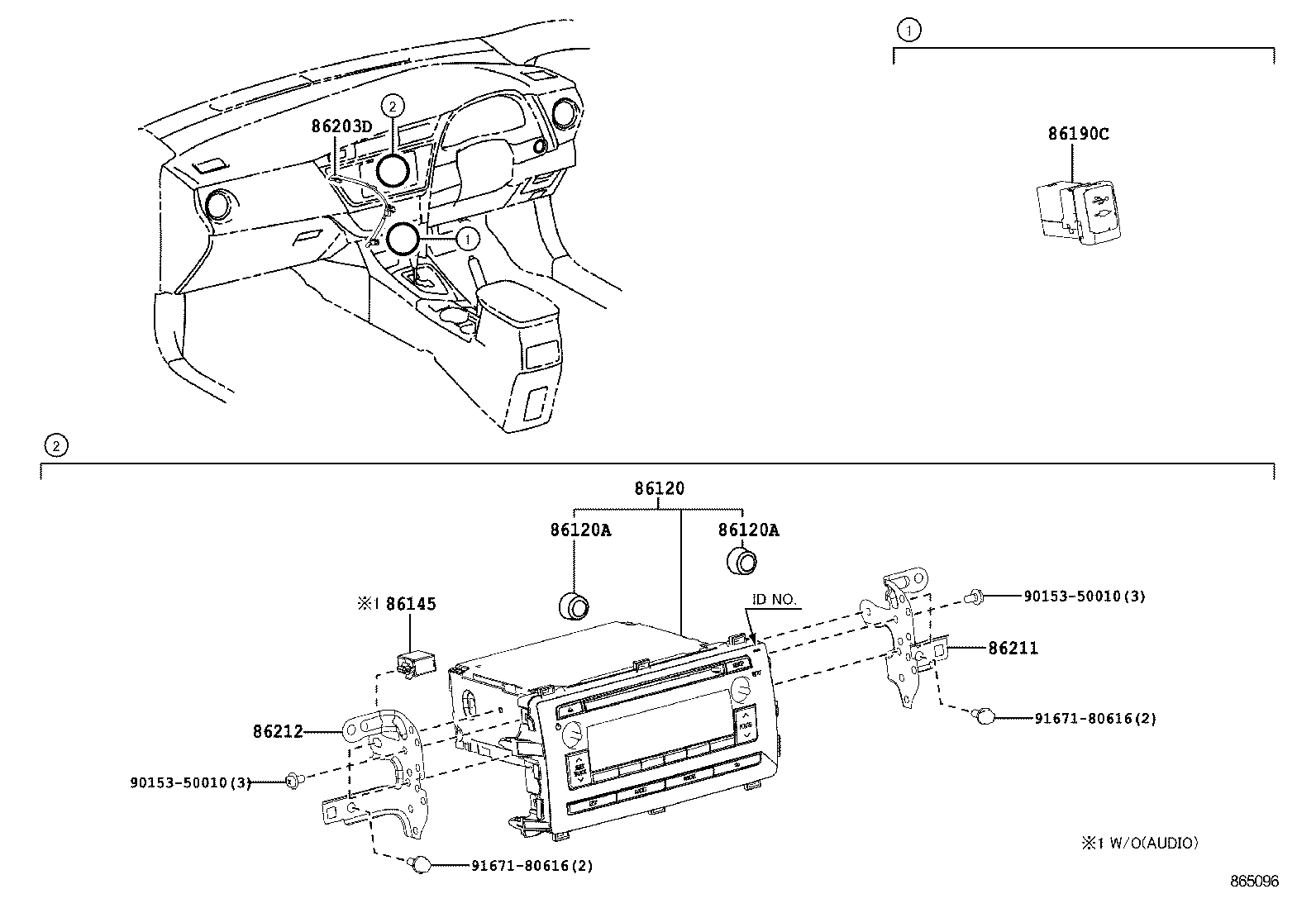

86120 - RECEIVER ASSY, RADIO
86120-12F40	NRE180,ZRE181..D PANASONIC,ID=53877	08/2012 - 03/2015	1
86120-12F40	NRE180,ZRE181..D PANASONIC,ID=53877,AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24159	NRE180,ZRE181..D AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	2
90010-24159	NRE180,ZRE181..D	08/2012 - 03/2015	2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24159	NRE180,ZRE181..D AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	2
90010-24159	NRE180,ZRE181..D	08/2012 - 03/2015	2
86145 - CONNECTOR, ANTENNA MALE
86145-52010	ZRE181..6F..N AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86145-52010	NRE180,ZRE181..D AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-52060	NRE180,ZRE181..D AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86190-52060	NRE180,ZRE181	08/2012 - 03/2015	1
86190-52060	ZRE181..N AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86190-52060	NRE180,ZRE181..6F AUDIO JACK-WITHOUT	08/2012 - 03/2015	1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-12440	ZRE181..N AUDIO-RADIO LESS(W(4SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86203-12440	NRE180,ZRE181..D AUDIO-RADIO LESS(W(2SPEAKER+2TWEETER))	08/2012 - 03/2015	1
86203-12440	NRE180,ZRE181	08/2012 - 03/2015	1
86203-12440	NRE180,ZRE181..6F AUDIO JACK-WITHOUT	08/2012 - 03/2015	1
86211 - BRACKET, RADIO, NO.1
86211-12430	NRE180,ZRE18#	08/2012 - 03/2015	1
86212 - BRACKET, RADIO, NO.2
86212-12420	NRE180,ZRE18#	08/2012 - 03/2015	1
Common parts
90153-50010
91671-80616

ZRE181R-AHFNPN (2012)

ILLUST NO. 1 OF 2(1208-1503)

ILLUST NO. 2 OF 2(1208- )

Part Price Details

Part #	Description	Period	Qty

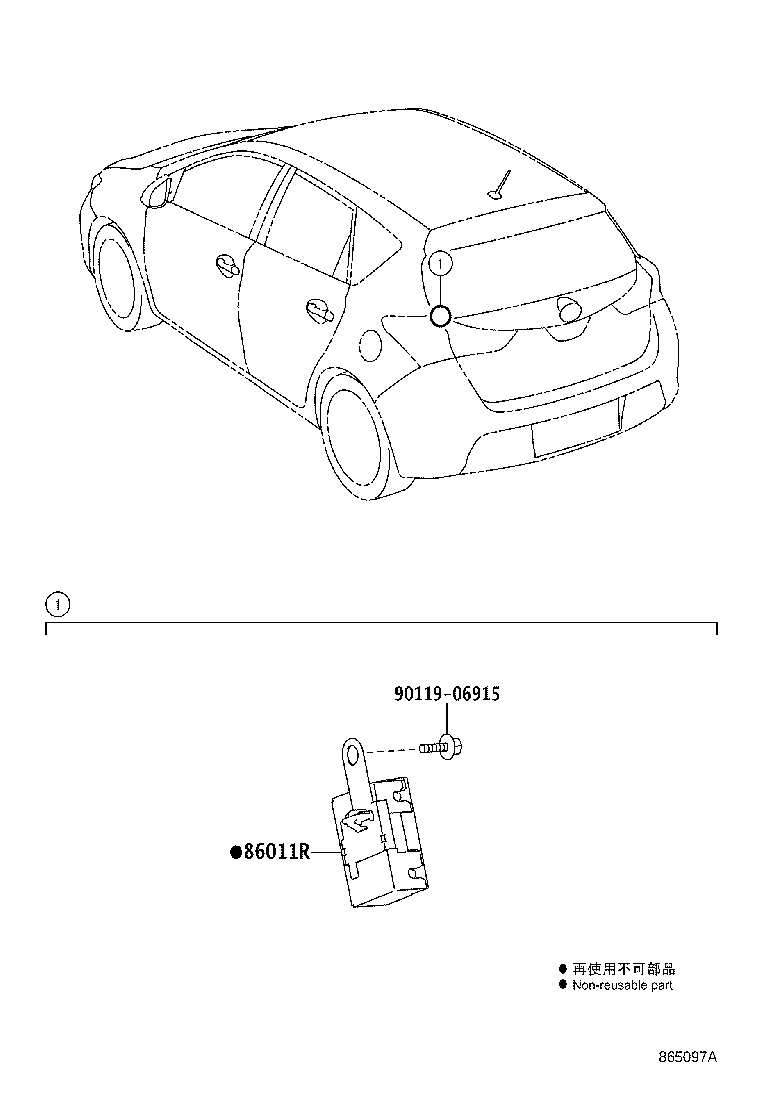

86011R - CONDENSER, RADIO SETTING
90980-04204	NRE180,ZRE18#	08/2012 - 03/2015	1
Common parts
90119-06915
