ZRE181R-AHFNPN (2012)

Toyota Corolla/Auris (Jpp)

Production Aug 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )

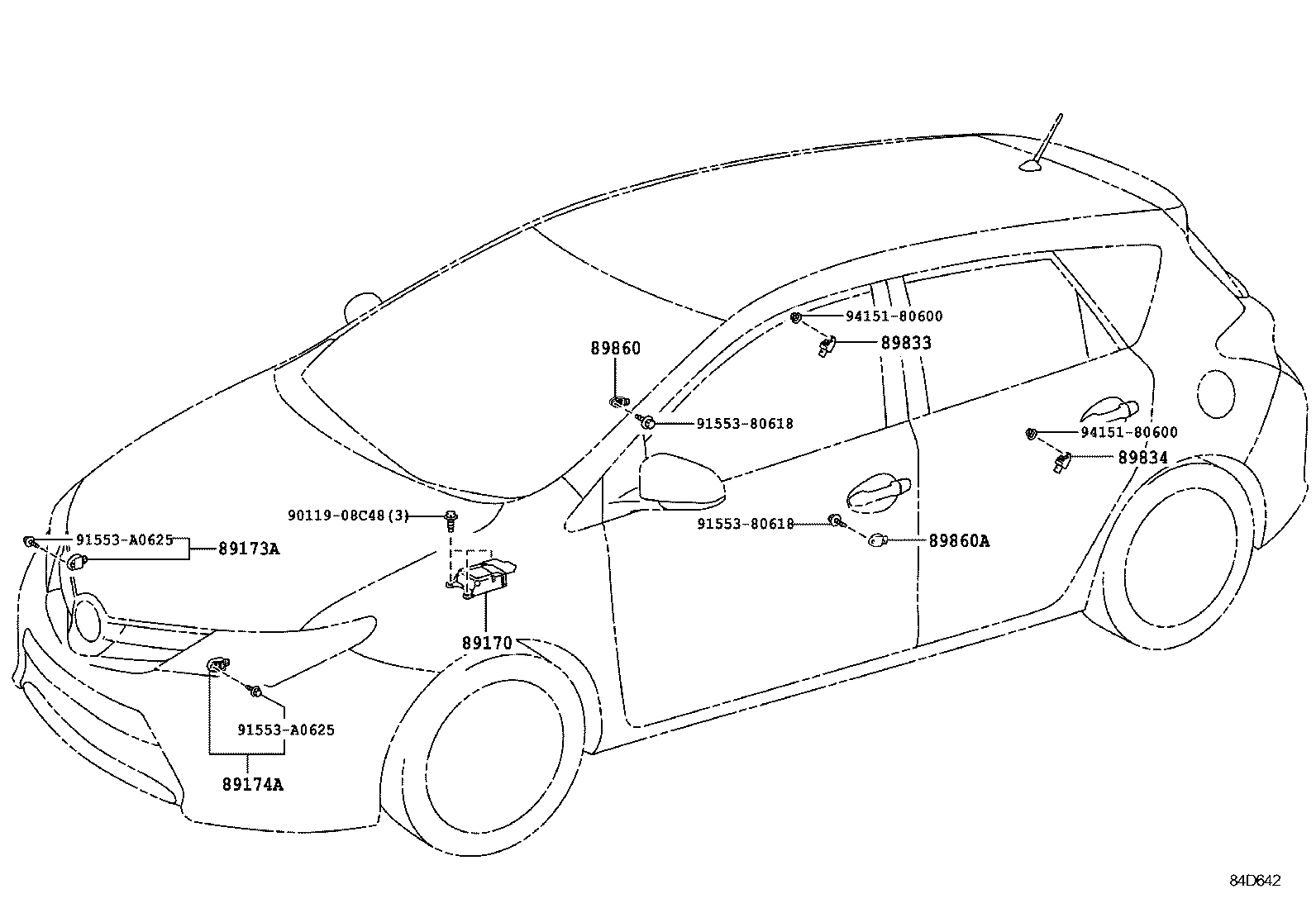

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89860 89860A 9011908C48 9155380618 9155380618 91553A0625 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-12840

NRE180,ZRE181..6F

 1
89170-12830

ZRE181..6F..N

"S PACKAGE"

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19465

NRE180,ZRE18#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-19465

NRE180,ZRE18#

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-12030

ZRE181..6F..N

"S PACKAGE"

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-12030

ZRE181..6F..N

"S PACKAGE"

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-12040

NRE180,ZRE18#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-12040

NRE180,ZRE18#

 1
Common parts
90119-08C48
91553-80618
91553-A0625
94151-80600
