ZRE181R-AHFNPN (2012)

Toyota Corolla/Auris (Jpp)

Production Aug 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )NRE180,ZRE18#

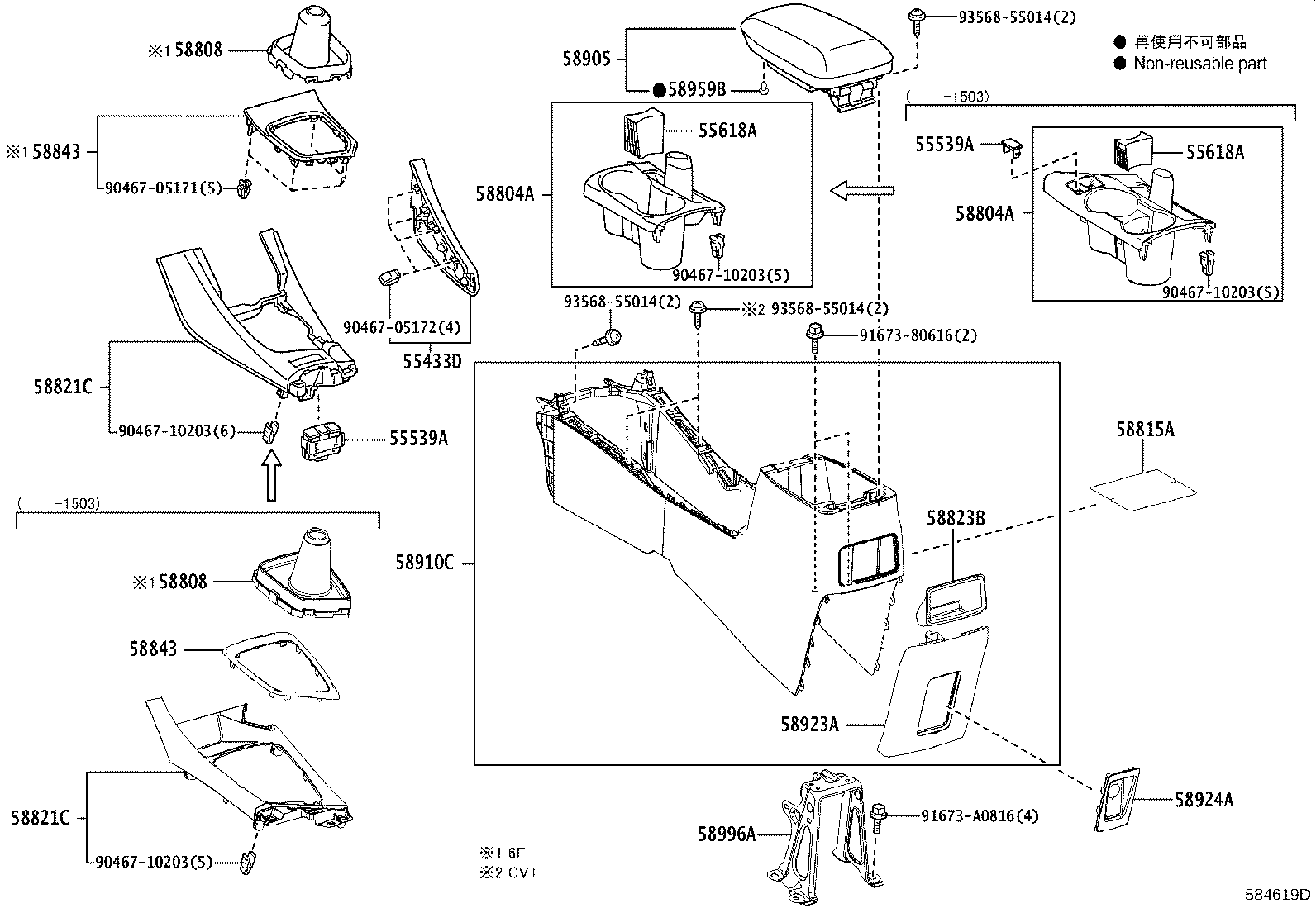

Click highlighted areas on diagram

diagram 55433D 55539A 55539A 55618A 55618A 58804A 58804A 58808 58808 58815A 58821C 58821C 58823B 58843 58843 58905 58910C 58923A 58924A 58959B 58996A 9046705171 9046705172 9046710203 9046710203 9046710203 9046710203 9167380616 91673A0816 9356855014 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

NRE180,ZRE18#

DK.GRAY,TRIM2#

 1
55539-52060C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

NRE180,ZRE18#

DK.GRAY,TRIM2#

 1
55539-52060C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-12090C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-12090C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12130C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12130C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12400

NRE180,ZRE18#..6F

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12400

NRE180,ZRE18#..6F

 1
58815A - CARPET, CONSOLE BOX
58815-12120

NRE180,ZRE18#

 1
58821C - PANEL, CONSOLE, UPPER
58821-12340C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-12340C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-12030C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-12260B0

NRE180,ZRE18#..6F

MD.SILVER,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-12260B0

NRE180,ZRE18#..6F

MD.SILVER,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12750C0

ZRE182..N;ZRE181..6F..N

"S PACKAGE",BLACK/BLACK/GRAY,TRIM2#

 1
58905-12850C4

ZRE182;NRE180,ZRE181..6F

BLACK/BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-12850C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58923A - PANEL, CONSOLE REAR END
58923-12200C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-12020C0

NRE180,ZRE18#

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NRE180,ZRE18#

 3
58959-60060

NRE180,ZRE18#

 3
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12230

NRE180,ZRE18#

 1
Common parts
90467-05171
90467-05172
90467-10203
91673-80616
91673-A0816
93568-55014
