ZRE181R-AHFNPN (2012)

Toyota Corolla/Auris (Jpp)

Production Aug 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208-1503)

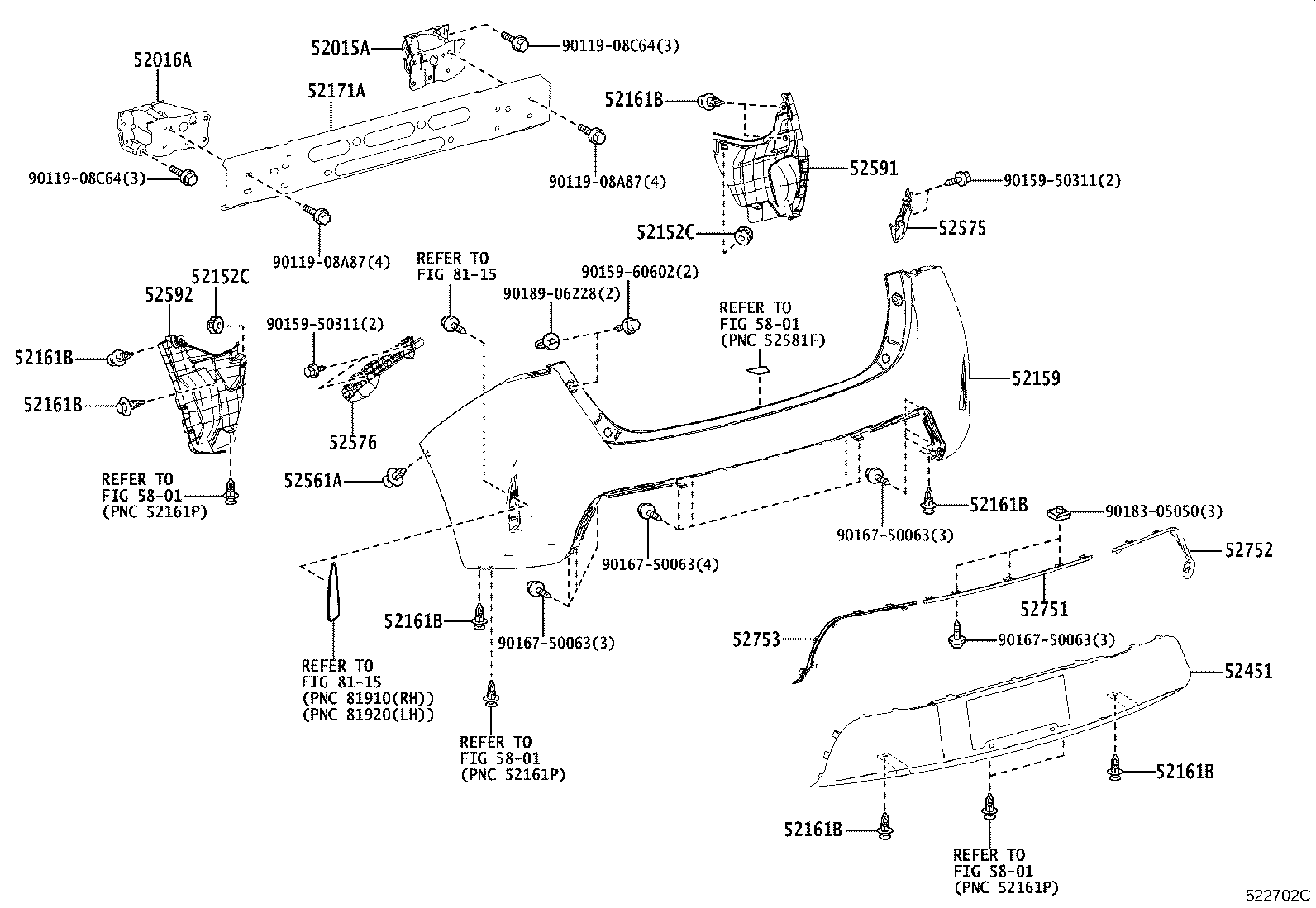

Click highlighted areas on diagram

diagram 52015A 52016A 52152C 52152C 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52171A 52451 52561A 52575 52576 52591 52592 52751 52752 52753 5801 5801 5801 5801 8115 8115 9011908A87 9011908A87 9011908C64 9011908C64 9015950311 9015950311 9015960602 9016750063 9016750063 9016750063 9016750063 9018305050 9018906228
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-12310

NRE180,ZRE18#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-12280

NRE180,ZRE18#

 1
52152C - CLIP, REAR BUMPER SIDE
90467-06206C0

NRE180,ZRE18#

BLACK

 2
52152C - CLIP, REAR BUMPER SIDE
90467-06206C0

NRE180,ZRE18#

BLACK

 2
52159 - COVER, REAR BUMPER
52159-12945

NRE180,ZRE18#

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52161B - PIECE, REAR BUMPER
52161-16010

NRE180,ZRE18#

 8
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-12240

NRE180,ZRE18#

 1
52451 - GUARD, REAR BUMPER
52453-12050

NRE180,ZRE18#..D

 1
52453-12090

ZRE18#..N

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NRE180,ZRE18#

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-12190

NRE180,ZRE18#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-12190

NRE180,ZRE18#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12290

NRE180,ZRE18#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12210

NRE180,ZRE18#

 1
52751 - MOULDING, REAR BUMPER
52751-12260

NRE180,ZRE18#..D

 1
52751-12250

ZRE18#..N

 1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-12040

NRE180,ZRE18#..D

 1
52752-12030

ZRE18#..N

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-12040

ZRE18#..N

 1
52753-12050

NRE180,ZRE18#..D

 1
Common parts
90119-08A87
90119-08C64
90159-50311
90159-60602
90167-50063
90183-05050
90189-06228
Linked diagrams
5801
8115
