ZRE181R-AHFNPN (2012)

Toyota Corolla/Auris (Jpp)

Production Aug 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1208- )NRE180,ZRE181

Click highlighted areas on diagram

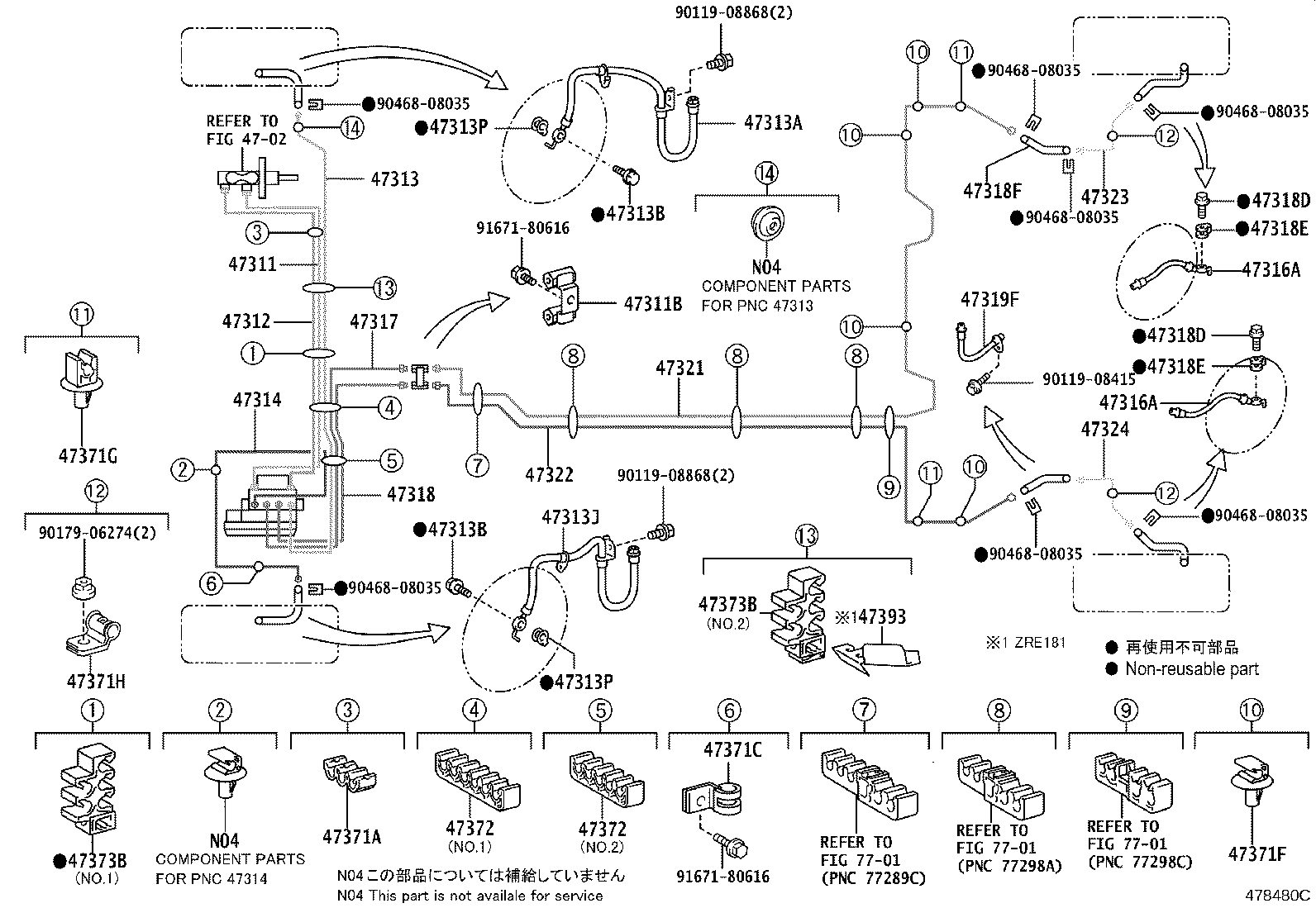

BRAKE TUBE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371C 47371F 47371G 47371H 47372 47372 47373B 47373B 47393 7701 7701 7701 9011908415 9011908868 9011908868 9017906274 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180616 9167180616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-12C10

NRE180,ZRE181

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NRE180,ZRE18#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12740

NRE180,ZRE181

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12730

NRE180,ZRE181

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G30

NRE180,ZRE18#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NRE180,ZRE18#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NRE180,ZRE18#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G31

NRE180,ZRE18#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NRE180,ZRE18#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NRE180,ZRE18#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-12610

NRE180,ZRE181

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F87

NRE180,ZRE18#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F87

NRE180,ZRE18#

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-12460

NRE180,ZRE181

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12600

NRE180,ZRE181

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NRE180,ZRE18#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NRE180,ZRE18#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NRE180,ZRE18#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NRE180,ZRE18#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F85

NRE180,ZRE18#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F86

NRE180,ZRE18#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-12290

NRE180,ZRE18#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12450

NRE180,ZRE18#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12230

NRE180,ZRE18#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12190

NRE180,ZRE18#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NRE180,ZRE181

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781

NRE180,ZRE18#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

NRE180,ZRE18#

 4
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

NRE180,ZRE18#

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10843

NRE180,ZRE18#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

NRE180,ZRE181

NO.2

 1
90464-00890

NRE180,ZRE181

NO.1

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

NRE180,ZRE181

NO.2

 1
90464-00890

NRE180,ZRE181

NO.1

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D68

NRE180,ZRE181

NO.2

 1
90949-01D45

NRE180,ZRE181

NO.1

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D68

NRE180,ZRE181

NO.2

 1
90949-01D45

NRE180,ZRE181

NO.1

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-20030

ZRE18#

 1
Common parts
90119-08415
90119-08868
90179-06274
90468-08035
91671-80616
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1208- )NRE180,ZRE181

Click highlighted areas on diagram

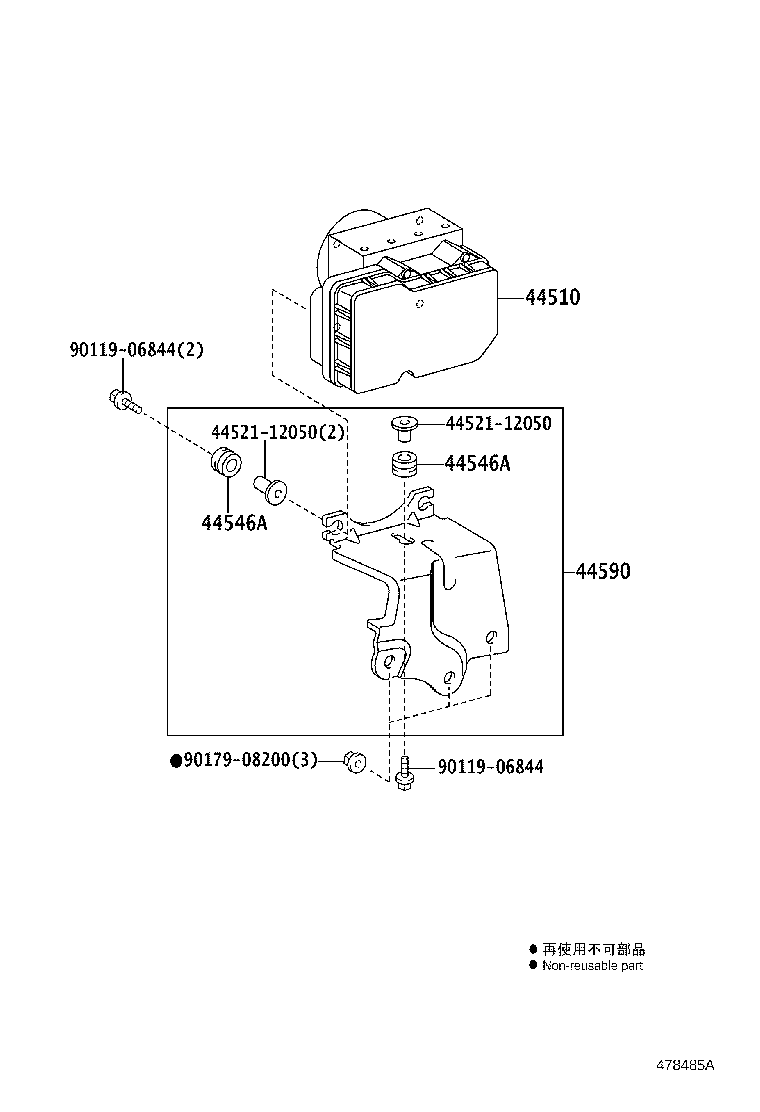

BRAKE ACTUATOR

diagram 44510 4452112050 4452112050 44546A 44546A 44590 9011906844 9011906844 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-12880

NRE180,ZRE181

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NRE180,ZRE18#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NRE180,ZRE18#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-12080

NRE180,ZRE181

 1
Common parts
44521-12050
90119-06844
90179-08200
