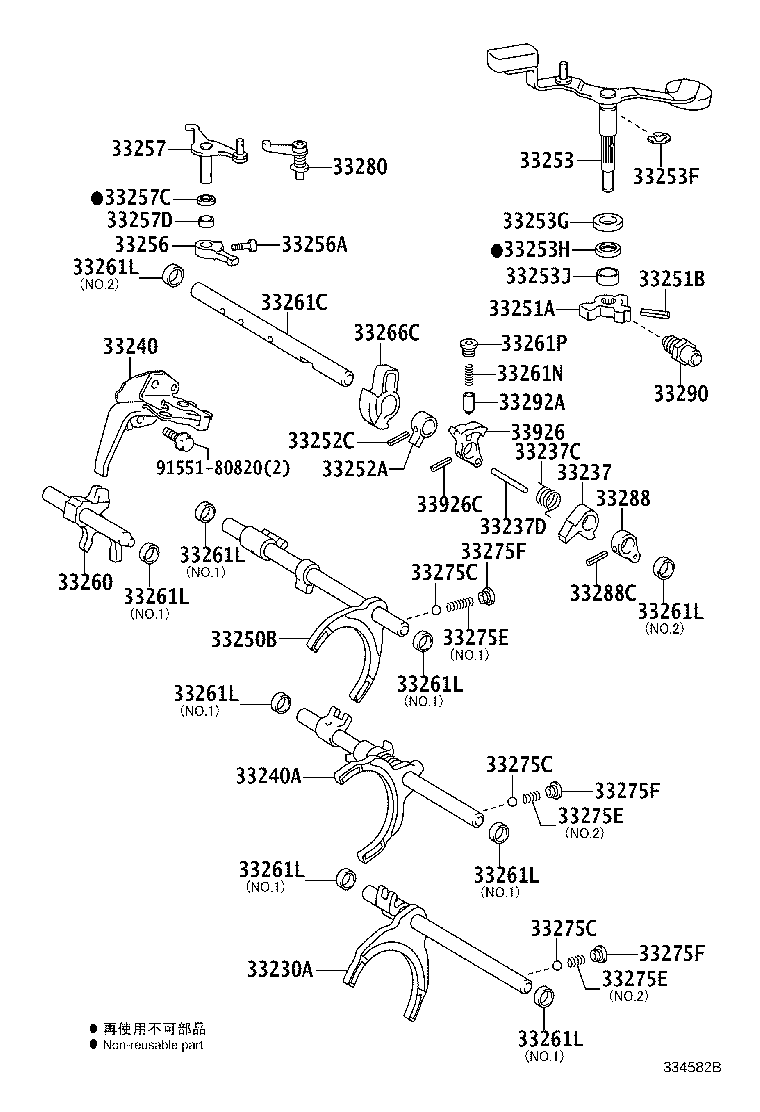

ZRE181R-AHFNPN (2012)
Toyota Corolla/Auris (Jpp)
(1208- )6F
EC60,EC61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33230A - SHAFT ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33230-20051 |
ZRE18#..6F *201 |
1 | ||
| 33230-20051 |
ZRE18#..6F *206 |
1 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-20030 |
ZRE18#..6F *206 |
1 | ||
| 33237-20030 |
ZRE18#..6F *201 |
1 | ||
| 33237C - SPRING, TORSION(FOR RELEASE HEAD) | ||||
| 90508-27001 |
ZRE18#..6F *206 |
1 | ||
| 90508-27001 |
ZRE18#..6F *201 |
1 | ||
| 33237D - PIN, STRAIGHT(FOR RELEASE HEAD) | ||||
| 90250-06042 |
ZRE18#..6F *201 |
1 | ||
| 90250-06042 |
ZRE18#..6F *206 |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-20041 |
ZRE18#..6F *206 |
1 | ||
| 33240-20041 |
ZRE18#..6F *201 |
1 | ||
| 33240A - SHAFT ASSY, GEAR SHIFT FORK, NO.2 | ||||
| 33240-20072 |
ZRE18#..6F *201 |
1 | ||
| 33240-20072 |
ZRE18#..6F *206 |
1 | ||
| 33250B - SHAFT ASSY, GEAR SHIFT FORK, NO.3 | ||||
| 33250-20130 |
ZRE18#..6F *201 |
1 | ||
| 33250-20130 |
ZRE18#..6F *206 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20120 |
ZRE18#..6F *201 |
1 | ||
| 33251-20120 |
ZRE18#..6F *206 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05011 |
ZRE18#..6F L=28.0,*206 |
1 | ||
| 90254-05011 |
ZRE18#..6F L=28.0,*201 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20060 |
ZRE18#..6F *206 |
1 | ||
| 33252-20060 |
ZRE18#..6F *201 |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
ZRE18#..6F *201 |
1 | ||
| 90254-05001 |
ZRE18#..6F *206 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-20070 |
ZRE18#..6F *206 |
1 | ||
| 33253-20070 |
ZRE18#..6F *201 |
1 | ||
| 33253F - RING, E(FOR SHIFT OUTER LEVER) | ||||
| 90523-15003 |
ZRE18#..6F *206 |
1 | ||
| 90523-15003 |
ZRE18#..6F *201 |
1 | ||
| 33253G - SPACER(FOR SHIFT OUTER LEVER) | ||||
| 90560-18017 |
ZRE18#..6F *201 |
1 | ||
| 90560-18017 |
ZRE18#..6F *206 |
1 | ||
| 33253H - SEAL, OIL(FOR SHIFT OUTER LEVER) | ||||
| 90310-18003 |
ZRE18#..6F *201 |
1 | ||
| 90310-18003 |
ZRE18#..6F *206 |
1 | ||
| 33253J - BUSH(FOR SHIFT OUTER LEVER) | ||||
| 90384-18018 |
ZRE18#..6F *201 |
1 | ||
| 90384-18018 |
ZRE18#..6F *206 |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-20030 |
ZRE18#..6F *206 |
1 | ||
| 33256-20030 |
ZRE18#..6F *201 |
1 | ||
| 33256A - BOLT, SET (FOR SELECT INNER LEVER) | ||||
| 90110-08041 |
ZRE18#..6F *201 |
1 | ||
| 90110-08041 |
ZRE18#..6F *206 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-20041 |
ZRE18#..6F *201 |
1 | ||
| 33257-20041 |
ZRE18#..6F *206 |
1 | ||
| 33257C - SEAL, OIL(FOR OUTER SELECT LEVER) | ||||
| 90310-15005 |
ZRE18#..6F *201 |
1 | ||
| 90310-15005 |
ZRE18#..6F *206 |
1 | ||
| 33257D - BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) | ||||
| 90384-15002 |
ZRE18#..6F *206 |
1 | ||
| 90384-15002 |
ZRE18#..6F *201 |
1 | ||
| 33260 - SHAFT ASSY, REVERSE SHIFT FORK(MTM) | ||||
| 33260-20010 |
ZRE18#..6F *201 |
1 | ||
| 33260-20010 |
ZRE18#..6F *206 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20120 |
ZRE18#..6F *201 |
1 | ||
| 33261-20120 |
ZRE18#..6F *206 |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-16005 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90384-14008 |
ZRE18#..6F *201,NO.1 |
7 | ||
| 90384-14008 |
ZRE18#..6F *206,NO.1 |
7 | ||
| 90384-16005 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33261N - SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90501-11108 |
ZRE18#..6F *206 |
1 | ||
| 90501-11108 |
ZRE18#..6F *201 |
1 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
ZRE18#..6F *201 |
1 | ||
| 90341-16013 |
ZRE18#..6F *206 |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20061 |
ZRE18#..6F *201 |
1 | ||
| 33266-20061 |
ZRE18#..6F *206 |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZRE18#..6F *201 |
3 | ||
| 90360-10003 |
ZRE18#..6F *206 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZRE18#..6F *201 |
3 | ||
| 90360-10003 |
ZRE18#..6F *206 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZRE18#..6F *201 |
3 | ||
| 90360-10003 |
ZRE18#..6F *206 |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
ZRE18#..6F *201,NO.1 |
1 | ||
| 90501-13088 |
ZRE18#..6F *206,NO.1 |
1 | ||
| 90501-11110 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90501-11110 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
ZRE18#..6F *201,NO.1 |
1 | ||
| 90501-13088 |
ZRE18#..6F *206,NO.1 |
1 | ||
| 90501-11110 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90501-11110 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13088 |
ZRE18#..6F *201,NO.1 |
1 | ||
| 90501-13088 |
ZRE18#..6F *206,NO.1 |
1 | ||
| 90501-11110 |
ZRE18#..6F *206,NO.2 |
2 | ||
| 90501-11110 |
ZRE18#..6F *201,NO.2 |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZRE18#..6F *201 |
3 | ||
| 90341-12004 |
ZRE18#..6F *206 |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZRE18#..6F *201 |
3 | ||
| 90341-12004 |
ZRE18#..6F *206 |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZRE18#..6F *201 |
3 | ||
| 90341-12004 |
ZRE18#..6F *206 |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20050 |
ZRE18#..6F *206 |
1 | ||
| 33280-20050 |
ZRE18#..6F *201 |
1 | ||
| 33288 - BLOCK, SELECT STOPPER | ||||
| 33288-20020 |
ZRE18#..6F *201 |
1 | ||
| 33288-20020 |
ZRE18#..6F *206 |
1 | ||
| 33288C - PIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK) | ||||
| 90254-05001 |
ZRE18#..6F *201 |
1 | ||
| 90254-05001 |
ZRE181..6F *206 |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-52040 |
ZRE18#..6F *201 |
1 | ||
| 33290-52040 |
ZRE18#..6F *206 |
1 | ||
| 33292A - PIN, LOCK BALL | ||||
| 33292-20010 |
ZRE18#..6F *206 |
1 | ||
| 33292-20010 |
ZRE18#..6F *201 |
1 | ||
| 33926 - LEVER, SHIFT INNER, FRONT | ||||
| 33926-20011 |
ZRE18#..6F *201 |
1 | ||
| 33926-20011 |
ZRE18#..6F *206 |
1 | ||
| 33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER) | ||||
| 90254-05001 |
ZRE181..6F *206 |
1 | ||
| 90254-05001 |
ZRE18#..6F *201 |
1 | ||
| 90254-05001 |
ZRE181..6F *206 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
