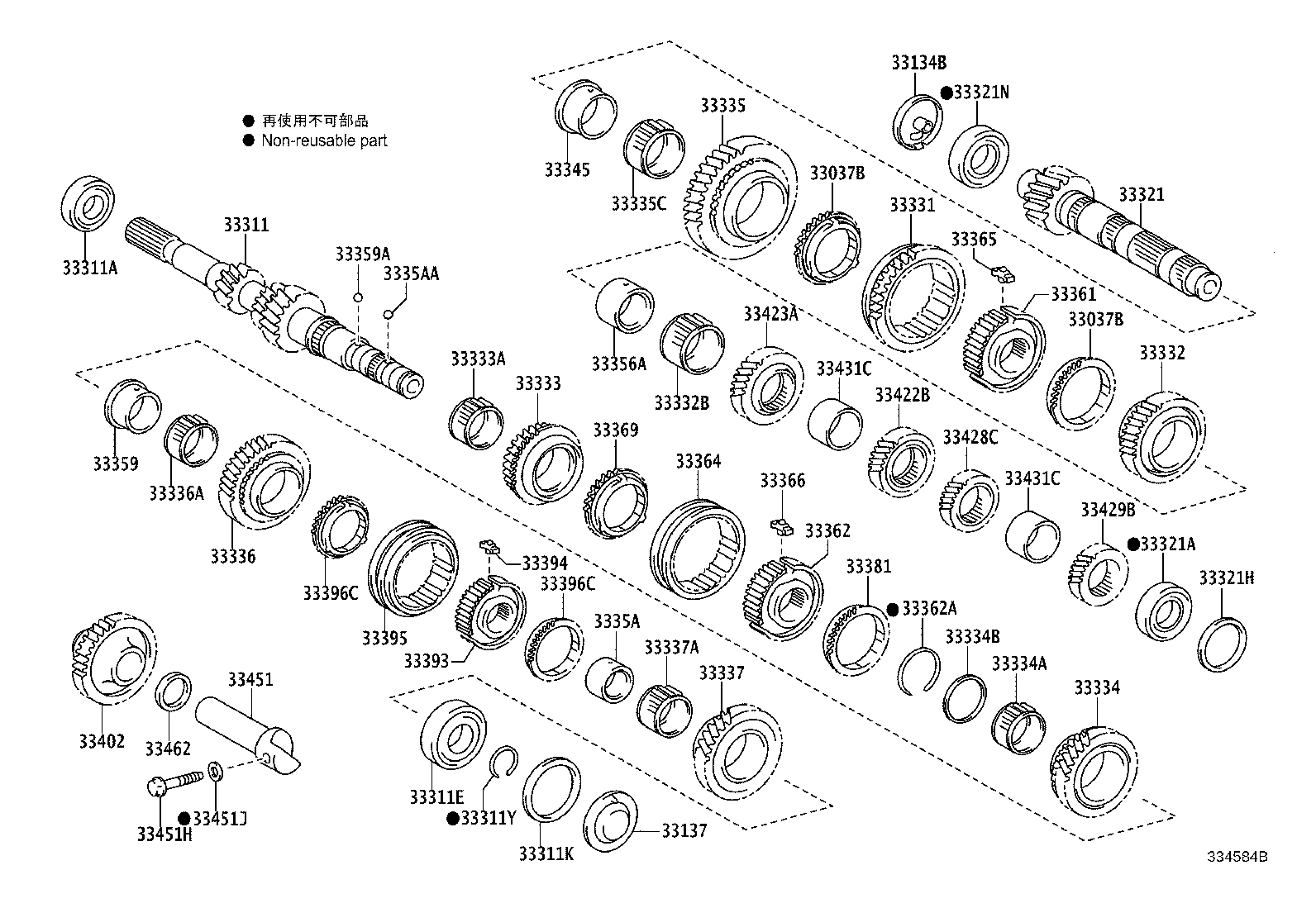

ZRE181R-AHFNPN (2012)
Toyota Corolla/Auris (Jpp)
(1208- )6F
EC60,EC61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-20100 |
ZRE18#..6F |
2 | ||
| 33037-12070 |
NRE180,ZRE18#..6F |
2 | ||
| 33037-20100 |
ZRE18#..6F *201,*206 |
2 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-20100 |
ZRE18#..6F |
2 | ||
| 33037-12070 |
NRE180,ZRE18#..6F |
2 | ||
| 33037-20100 |
ZRE18#..6F *201,*206 |
2 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20040 |
ZRE18#..6F *201,*206 |
1 | ||
| 33134-20040 |
ZRE18#..6F |
1 | ||
| 33137 - COVER, INPUT SHAFT(MTM) | ||||
| 33137-20020 |
ZRE18#..6F |
1 | ||
| 33137-20020 |
ZRE18#..6F *201,*206 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20240 |
ZRE18#..6F *201 |
1 | ||
| 33311-12281 |
NRE180,ZRE18#..6F |
1 | ||
| 33311-12280 |
ZRE18#..6F *206 |
1 | ||
| 33311-12280 |
ZRE18#..6F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-25081 |
ZRE18#..6F |
1 | ||
| 90363-25081 |
ZRE18#..6F *201,*206 |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-28014 |
ZRE18#..6F |
1 | ||
| 90363-28016 |
NRE180,ZRE18#..6F |
1 | ||
| 90363-28014 |
ZRE18#..6F *201,*206 |
1 | ||
| 33311K - SHIM (FOR INPUT SHAFT REAR BEARING) | ||||
| 90564-54105 |
ZRE18#..6F T=1.40,MARK 10,*201,*206 |
1 | ||
| 90564-54108 |
ZRE18#..6F T=1.55,MARK 13,*201,*206 |
1 | ||
| 90564-54111 |
ZRE18#..6F T=1.70,MARK 16,*201,*206 |
1 | ||
| 90564-54104 |
ZRE18#..6F T=1.35,MARK 09,*201,*206 |
1 | ||
| 90564-54106 |
ZRE18#..6F T=1.45,MARK 11,*201,*206 |
1 | ||
| 90564-54110 |
ZRE18#..6F T=1.65,MARK 15,*201,*206 |
1 | ||
| 90564-54103 |
ZRE18#..6F T=1.30,MARK 08,*201,*206 |
1 | ||
| 90564-54107 |
ZRE18#..6F T=1.50,MARK 12,*201,*206 |
1 | ||
| 90564-54112 |
ZRE18#..6F T=1.75,MARK 17,*201,*206 |
1 | ||
| 90564-54109 |
ZRE18#..6F T=1.60,MARK 14,*201,*206 |
1 | ||
| 90564-54113 |
ZRE18#..6F T=1.80,MARK 18,*201,*206 |
1 | ||
| 90564-54106 |
ZRE18#..6F T=1.45,MARK 11 |
1 | ||
| 90564-54109 |
ZRE18#..6F T=1.60,MARK 14 |
1 | ||
| 90564-54105 |
ZRE18#..6F T=1.40,MARK 10 |
1 | ||
| 90564-54113 |
ZRE18#..6F T=1.80,MARK 18 |
1 | ||
| 90564-54110 |
ZRE18#..6F T=1.65,MARK 15 |
1 | ||
| 90564-54108 |
ZRE18#..6F T=1.55,MARK 13 |
1 | ||
| 90564-54114 |
ZRE18#..6F T=1.85,MARK 19 |
1 | ||
| 90564-54107 |
ZRE18#..6F T=1.50,MARK 12 |
1 | ||
| 90564-54103 |
ZRE18#..6F T=1.30,MARK 08 |
1 | ||
| 90564-54104 |
ZRE18#..6F T=1.35,MARK 09 |
1 | ||
| 90564-54114 |
ZRE18#..6F T=1.85,MARK 19,*201,*206 |
1 | ||
| 90564-54111 |
ZRE18#..6F T=1.70,MARK 16 |
1 | ||
| 90564-54112 |
ZRE18#..6F T=1.75,MARK 17 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-25063 |
ZRE18#..6F T=1.75,MARK C,*201,*206 |
1 | ||
| 90520-25059 |
ZRE18#..6F T=1.65,MARK A,*201,*206 |
1 | ||
| 90520-25065 |
ZRE18#..6F T=1.85,MARK E,*201,*206 |
1 | ||
| 90520-25064 |
ZRE18#..6F T=1.80,MARK D,*201,*206 |
1 | ||
| 90520-25066 |
ZRE18#..6F T=1.90,MARK F,*201,*206 |
1 | ||
| 90520-25069 |
ZRE18#..6F T=2.05,MARK J,*201,*206 |
1 | ||
| 90520-25062 |
ZRE18#..6F T=1.70,MARK B,*201,*206 |
1 | ||
| 90520-25068 |
ZRE18#..6F T=2.00,MARK H,*201,*206 |
1 | ||
| 90520-25071 |
ZRE18#..6F T=2.15,MARK L,*201,*206 |
1 | ||
| 90520-25072 |
ZRE18#..6F T=2.20,MARK M,*201,*206 |
1 | ||
| 90520-25075 |
ZRE18#..6F T=2.30,MARK P,*201,*206 |
1 | ||
| 90520-25070 |
ZRE18#..6F T=2.10,MARK K,*201,*206 |
1 | ||
| 90520-25067 |
ZRE18#..6F T=1.95,MARK G,*201,*206 |
1 | ||
| 90520-25074 |
ZRE18#..6F T=2.25,MARK N,*201,*206 |
1 | ||
| 90520-25063 |
ZRE18#..6F T=1.75,MARK C |
1 | ||
| 90520-25065 |
ZRE18#..6F T=1.85,MARK E |
1 | ||
| 90520-25066 |
ZRE18#..6F T=1.90,MARK F |
1 | ||
| 90520-25059 |
ZRE18#..6F T=1.65,MARK A |
1 | ||
| 90520-25064 |
ZRE18#..6F T=1.80,MARK D |
1 | ||
| 90520-25067 |
ZRE18#..6F T=1.95,MARK G |
1 | ||
| 90520-25069 |
ZRE18#..6F T=2.05,MARK J |
1 | ||
| 90520-25070 |
ZRE18#..6F T=2.10,MARK K |
1 | ||
| 90520-25074 |
ZRE18#..6F T=2.25,MARK N |
1 | ||
| 90520-25068 |
ZRE18#..6F T=2.00,MARK H |
1 | ||
| 90520-25075 |
ZRE18#..6F T=2.30,MARK P |
1 | ||
| 90520-25062 |
ZRE18#..6F T=1.70,MARK B |
1 | ||
| 90520-25072 |
ZRE18#..6F T=2.20,MARK M |
1 | ||
| 90520-25071 |
ZRE18#..6F T=2.15,MARK L |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12310 |
ZRE181..6F *206 |
1 | ||
| 33321-12340 |
ZRE181..6F |
1 | ||
| 33321-20220 |
ZRE181..6F *201 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-30096 |
ZRE18#..6F *201,*206 |
1 | ||
| 90366-30096 |
ZRE18#..6F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-45154 |
ZRE18#..6F T=1.755,MARK 51,*201,*206 |
1 | ||
| 90564-45153 |
ZRE18#..6F T=1.750,MARK 50,*201,*206 |
1 | ||
| 90564-45161 |
ZRE18#..6F T=1.950,MARK 58,*201,*206 |
1 | ||
| 90564-45157 |
ZRE18#..6F T=1.850,MARK 54,*201,*206 |
1 | ||
| 90564-45160 |
ZRE18#..6F T=1.925,MARK 57,*201,*206 |
1 | ||
| 90564-45162 |
ZRE18#..6F T=1.975,MARK 59,*201,*206 |
1 | ||
| 90564-45158 |
ZRE18#..6F T=1.875,MARK 55,*201,*206 |
1 | ||
| 90564-45156 |
ZRE18#..6F T=1.825,MARK 53,*201,*206 |
1 | ||
| 90564-45159 |
ZRE18#..6F T=1.900,MARK 56,*201,*206 |
1 | ||
| 90564-45166 |
ZRE18#..6F T=2.075,MARK 63,*201,*206 |
1 | ||
| 90564-45168 |
ZRE18#..6F T=2.125,MARK 65,*201,*206 |
1 | ||
| 90564-45171 |
ZRE18#..6F T=2.200,MARK 68,*201,*206 |
1 | ||
| 90564-45163 |
ZRE18#..6F T=2.000,MARK 60,*201,*206 |
1 | ||
| 90564-45165 |
ZRE18#..6F T=2.050,MARK 62,*201,*206 |
1 | ||
| 90564-45170 |
ZRE18#..6F T=2.175,MARK 67,*201,*206 |
1 | ||
| 90564-45174 |
ZRE18#..6F T=2.275,MARK 71,*201,*206 |
1 | ||
| 90564-45155 |
ZRE18#..6F T=1.800,MARK 52,*201,*206 |
1 | ||
| 90564-45164 |
ZRE18#..6F T=2.025,MARK 61,*201,*206 |
1 | ||
| 90564-45175 |
ZRE18#..6F T=2.300,MARK 72,*201,*206 |
1 | ||
| 90564-45169 |
ZRE18#..6F T=2.150,MARK 66,*201,*206 |
1 | ||
| 90564-45181 |
ZRE18#..6F T=2.450,MARK 78,*201,*206 |
1 | ||
| 90564-45167 |
ZRE18#..6F T=2.100,MARK 64,*201,*206 |
1 | ||
| 90564-45178 |
ZRE18#..6F T=2.375,MARK 75,*201,*206 |
1 | ||
| 90564-45173 |
ZRE18#..6F T=2.250,MARK 70,*201,*206 |
1 | ||
| 90564-45177 |
ZRE18#..6F T=2.350,MARK 74,*201,*206 |
1 | ||
| 90564-45187 |
ZRE18#..6F T=2.600,MARK 84,*201,*206 |
1 | ||
| 90564-45180 |
ZRE18#..6F T=2.425,MARK 77,*206 |
1 | ||
| 90564-45186 |
ZRE18#..6F T=2.575,MARK 83,*201,*206 |
1 | ||
| 90564-45188 |
ZRE18#..6F T=2.625,MARK 85,*201,*206 |
1 | ||
| 90564-45179 |
ZRE18#..6F T=2.400,MARK 76,*201,*206 |
1 | ||
| 90564-45184 |
ZRE18#..6F T=2.525,MARK 81,*201,*206 |
1 | ||
| 90564-45176 |
ZRE18#..6F T=2.325,MARK 73,*201,*206 |
1 | ||
| 90564-45180 |
ZRE181..6F T=2.425,MARK 77,*201 |
1 | ||
| 90564-45189 |
ZRE18#..6F T=2.650,MARK 86,*201,*206 |
1 | ||
| 90564-45194 |
ZRE18#..6F T=2.775,MARK 91,*201,*206 |
1 | ||
| 90564-45185 |
ZRE18#..6F T=2.550,MARK 82,*201,*206 |
1 | ||
| 90564-45192 |
ZRE18#..6F T=2.725,MARK 89,*201,*206 |
1 | ||
| 90564-45182 |
ZRE18#..6F T=2.475,MARK 79,*201,*206 |
1 | ||
| 90564-45195 |
ZRE18#..6F T=2.800,MARK 92,*201,*206 |
1 | ||
| 90564-45172 |
ZRE18#..6F T=2.225,MARK 69,*201,*206 |
1 | ||
| 90564-45183 |
ZRE18#..6F T=2.500,MARK 80,*201,*206 |
1 | ||
| 90564-45190 |
ZRE18#..6F T=2.675,MARK 87,*201,*206 |
1 | ||
| 90564-45193 |
ZRE18#..6F T=2.750,MARK 90,*201,*206 |
1 | ||
| 90564-45191 |
ZRE18#..6F T=2.700,MARK 88,*201,*206 |
1 | ||
| 90564-45153 |
ZRE18#..6F T=1.750,MARK 50 |
1 | ||
| 90564-45155 |
ZRE18#..6F T=1.800,MARK 52 |
1 | ||
| 90564-45164 |
ZRE18#..6F T=2.025,MARK 61 |
1 | ||
| 90564-45154 |
ZRE18#..6F T=1.755,MARK 51 |
1 | ||
| 90564-45158 |
ZRE18#..6F T=1.875,MARK 55 |
1 | ||
| 90564-45161 |
ZRE18#..6F T=1.950,MARK 58 |
1 | ||
| 90564-45163 |
ZRE18#..6F T=2.000,MARK 60 |
1 | ||
| 90564-45165 |
ZRE18#..6F T=2.050,MARK 62 |
1 | ||
| 90564-45156 |
ZRE18#..6F T=1.825,MARK 53 |
1 | ||
| 90564-45167 |
ZRE18#..6F T=2.100,MARK 64 |
1 | ||
| 90564-45159 |
ZRE18#..6F T=1.900,MARK 56 |
1 | ||
| 90564-45162 |
ZRE18#..6F T=1.975,MARK 59 |
1 | ||
| 90564-45160 |
ZRE18#..6F T=1.925,MARK 57 |
1 | ||
| 90564-45171 |
ZRE18#..6F T=2.200,MARK 68 |
1 | ||
| 90564-45157 |
ZRE18#..6F T=1.850,MARK 54 |
1 | ||
| 90564-45166 |
ZRE18#..6F T=2.075,MARK 63 |
1 | ||
| 90564-45175 |
ZRE18#..6F T=2.300,MARK 72 |
1 | ||
| 90564-45180 |
ZRE181..6F T=2.425,MARK 77 |
1 | ||
| 90564-45172 |
ZRE18#..6F T=2.225,MARK 69 |
1 | ||
| 90564-45184 |
ZRE18#..6F T=2.525,MARK 81 |
1 | ||
| 90564-45169 |
ZRE18#..6F T=2.150,MARK 66 |
1 | ||
| 90564-45182 |
ZRE18#..6F T=2.475,MARK 79 |
1 | ||
| 90564-45173 |
ZRE18#..6F T=2.250,MARK 70 |
1 | ||
| 90564-45176 |
ZRE18#..6F T=2.325,MARK 73 |
1 | ||
| 90564-45178 |
ZRE18#..6F T=2.375,MARK 75 |
1 | ||
| 90564-45179 |
ZRE18#..6F T=2.400,MARK 76 |
1 | ||
| 90564-45174 |
ZRE18#..6F T=2.275,MARK 71 |
1 | ||
| 90564-45181 |
ZRE18#..6F T=2.450,MARK 78 |
1 | ||
| 90564-45168 |
ZRE18#..6F T=2.125,MARK 65 |
1 | ||
| 90564-45170 |
ZRE18#..6F T=2.175,MARK 67 |
1 | ||
| 90564-45190 |
ZRE18#..6F T=2.675,MARK 87 |
1 | ||
| 90564-45187 |
ZRE18#..6F T=2.600,MARK 84 |
1 | ||
| 90564-45189 |
ZRE18#..6F T=2.650,MARK 86 |
1 | ||
| 90564-45185 |
ZRE18#..6F T=2.550,MARK 82 |
1 | ||
| 90564-45191 |
ZRE18#..6F T=2.700,MARK 88 |
1 | ||
| 90564-45177 |
ZRE18#..6F T=2.350,MARK 74 |
1 | ||
| 90564-45194 |
ZRE18#..6F T=2.775,MARK 91 |
1 | ||
| 90564-45195 |
ZRE18#..6F T=2.800,MARK 92 |
1 | ||
| 90564-45193 |
ZRE18#..6F T=2.750,MARK 90 |
1 | ||
| 90564-45183 |
ZRE18#..6F T=2.500,MARK 80 |
1 | ||
| 90564-45188 |
ZRE18#..6F T=2.625,MARK 85 |
1 | ||
| 90564-45192 |
ZRE18#..6F T=2.725,MARK 89 |
1 | ||
| 90564-45186 |
ZRE18#..6F T=2.575,MARK 83 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-28016 |
ZRE18#..6F *201,*206 |
1 | ||
| 90366-28019 |
NRE180,ZRE18#..6F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20090 |
ZRE18#..6F |
1 | ||
| 33331-20090 |
ZRE18#..6F *201,*206 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-20160 |
ZRE18#..6F *201 |
1 | ||
| 33332-12170 |
ZRE18#..6F *206 |
1 | ||
| 33332-12130 |
NRE180,ZRE18#..6F |
1 | ||
| 33332-12170 |
ZRE18#..6F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-47011 |
ZRE18#..6F |
1 | ||
| 90364-47011 |
ZRE18#..6F *201,*206 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20120 |
ZRE18#..6F *201 |
1 | ||
| 33034-12220 |
ZRE18#..6F *206 |
1 | ||
| 33034-12220 |
ZRE18#..6F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-37015 |
ZRE18#..6F *201,*206 |
1 | ||
| 90364-37015 |
ZRE18#..6F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-20210 |
ZRE18#..6F *201 |
1 | ||
| 33035-12160 |
ZRE18#..6F *206 |
1 | ||
| 33035-12160 |
ZRE18#..6F |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-37015 |
ZRE18#..6F *201,*206 |
1 | ||
| 90364-37015 |
ZRE18#..6F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-37004 |
ZRE18#..6F *201,*206 |
1 | ||
| 90560-37004 |
ZRE18#..6F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-12190 |
ZRE18#..6F *206 |
1 | ||
| 33335-20160 |
ZRE18#..6F *201 |
1 | ||
| 33335-12170 |
NRE180,ZRE18#..6F |
1 | ||
| 33335-12190 |
ZRE18#..6F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-47010 |
ZRE18#..6F |
1 | ||
| 90364-47010 |
ZRE18#..6F *201,*206 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20110 |
ZRE18#..6F *201 |
1 | ||
| 33036-12210 |
ZRE18#..6F *206 |
1 | ||
| 33036-12210 |
ZRE18#..6F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37015 |
ZRE18#..6F |
1 | ||
| 90364-37015 |
ZRE18#..6F *201,*206 |
1 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| 33037-12050 |
ZRE18#..6F |
1 | ||
| 33037-20050 |
ZRE18#..6F *201 |
1 | ||
| 33037-12050 |
ZRE18#..6F *206 |
1 | ||
| 33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR) | ||||
| 90364-35011 |
ZRE18#..6F *201,*206 |
1 | ||
| 90364-35011 |
ZRE18#..6F |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-20030 |
ZRE18#..6F |
1 | ||
| 33345-20030 |
ZRE18#..6F *201,*206 |
1 | ||
| 33356A - RACE, 2ND GEAR BEARING INNER | ||||
| 33356-20050 |
ZRE18#..6F *201,*206 |
1 | ||
| 33356-20050 |
ZRE18#..6F |
1 | ||
| 33359 - RACE, 5TH GEAR BEARING INNER | ||||
| 33359-20010 |
ZRE18#..6F |
1 | ||
| 33359-20010 |
ZRE18#..6F *201,*206 |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
ZRE181..6F |
1 | ||
| 90360-05012 |
ZRE181..6F *206 |
1 | ||
| 90360-05012 |
ZRE18#..6F *201 |
1 | ||
| 3335A - RACE, 6TH GEAR BEARING, INNER(MTM) | ||||
| 3335A-20010 |
ZRE18#..6F *201,*206 |
1 | ||
| 3335A-20010 |
ZRE18#..6F |
1 | ||
| 3335AA - BALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM) | ||||
| 90360-05012 |
ZRE18#..6F *201 |
1 | ||
| 90360-05012 |
ZRE181..6F |
1 | ||
| 90360-05012 |
ZRE181..6F *206 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-20070 |
ZRE18#..6F |
1 | ||
| 33361-20070 |
ZRE18#..6F *201,*206 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-20040 |
ZRE18#..6F |
1 | ||
| 33362-20040 |
ZRE18#..6F *201,*206 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-35040 |
ZRE18#..6F T=2.57,MARK 6,*201,*206 |
1 | ||
| 90520-35035 |
ZRE18#..6F T=2.32,MARK 1,*201,*206 |
1 | ||
| 90520-35034 |
ZRE18#..6F T=2.27,MARK 0,*201,*206 |
1 | ||
| 90520-35037 |
ZRE18#..6F T=2.42,MARK 3,*201,*206 |
1 | ||
| 90520-35041 |
ZRE18#..6F T=2.62,MARK 7,*201,*206 |
1 | ||
| 90520-35038 |
ZRE18#..6F T=2.47,MARK 4,*201,*206 |
1 | ||
| 90520-35039 |
ZRE18#..6F T=2.52,MARK 5,*201,*206 |
1 | ||
| 90520-35034 |
ZRE18#..6F T=2.27,MARK 0 |
1 | ||
| 90520-35036 |
ZRE18#..6F T=2.37,MARK 2 |
1 | ||
| 90520-35035 |
ZRE18#..6F T=2.32,MARK 1 |
1 | ||
| 90520-35037 |
ZRE18#..6F T=2.42,MARK 3 |
1 | ||
| 90520-35038 |
ZRE18#..6F T=2.47,MARK 4 |
1 | ||
| 90520-35040 |
ZRE18#..6F T=2.57,MARK 6 |
1 | ||
| 90520-35036 |
ZRE18#..6F T=2.37,MARK 2,*201,*206 |
1 | ||
| 90520-35039 |
ZRE18#..6F T=2.52,MARK 5 |
1 | ||
| 90520-35041 |
ZRE18#..6F T=2.62,MARK 7 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12060 |
ZRE18#..6F *206 |
1 | ||
| 33364-12060 |
ZRE18#..6F |
1 | ||
| 33364-20070 |
ZRE18#..6F *201 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20080 |
ZRE18#..6F |
3 | ||
| 33365-20080 |
ZRE18#..6F *201,*206 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-20080 |
ZRE18#..6F |
3 | ||
| 33365-20080 |
ZRE18#..6F *201,*206 |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20050 |
ZRE18#..6F *201,*206 |
1 | ||
| 33369-20050 |
ZRE18#..6F |
1 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-20020 |
ZRE18#..6F |
1 | ||
| 33381-20020 |
ZRE18#..6F *201,*206 |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20040 |
ZRE18#..6F |
1 | ||
| 33393-20040 |
ZRE18#..6F *201,*206 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33365-20080 |
ZRE18#..6F |
3 | ||
| 33365-20080 |
ZRE18#..6F *201,*206 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12040 |
ZRE18#..6F *206 |
1 | ||
| 33395-20060 |
ZRE18#..6F *201 |
1 | ||
| 33395-12040 |
ZRE18#..6F |
1 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-20010 |
ZRE18#..6F *201,*206 |
2 | ||
| 33396-20010 |
ZRE18#..6F |
2 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-20010 |
ZRE18#..6F *201,*206 |
2 | ||
| 33396-20010 |
ZRE18#..6F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20080 |
ZRE18#..6F |
1 | ||
| 33402-20080 |
ZRE18#..6F *201,*206 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12110 |
ZRE18#..6F *206 |
1 | ||
| 33422-20070 |
ZRE18#..6F *201 |
1 | ||
| 33422-12110 |
ZRE18#..6F |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-20080 |
ZRE18#..6F *201 |
1 | ||
| 33423-12070 |
ZRE18#..6F |
1 | ||
| 33423-12070 |
ZRE18#..6F *206 |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-20110 |
ZRE18#..6F *201 |
1 | ||
| 33428-12150 |
ZRE18#..6F |
1 | ||
| 33428-12150 |
ZRE18#..6F *206 |
1 | ||
| 33429B - GEAR, 6TH DRIVEN | ||||
| 33429-20050 |
ZRE18#..6F *201 |
1 | ||
| 33429-12030 |
ZRE18#..6F *206 |
1 | ||
| 33429-12030 |
ZRE18#..6F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20090 |
ZRE18#..6F |
2 | ||
| 33431-20090 |
ZRE18#..6F *201,*206 |
2 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20090 |
ZRE18#..6F |
2 | ||
| 33431-20090 |
ZRE18#..6F *201,*206 |
2 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-20060 |
ZRE18#..6F |
1 | ||
| 33451-20060 |
ZRE18#..6F *201,*206 |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
ZRE18#..6F |
1 | ||
| 90105-08150 |
ZRE18#..6F *201,*206 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
ZRE18#..6F *201,*206 |
1 | ||
| 90430-08010 |
ZRE18#..6F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20070 |
ZRE18#..6F *201,*206 |
1 | ||
| 33462-20070 |
ZRE18#..6F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
