ZZE122R-AWPDKQ (2001)
Toyota Corolla/Altis Sed/Wg
(0110-0301)ARL ; (0202- )PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

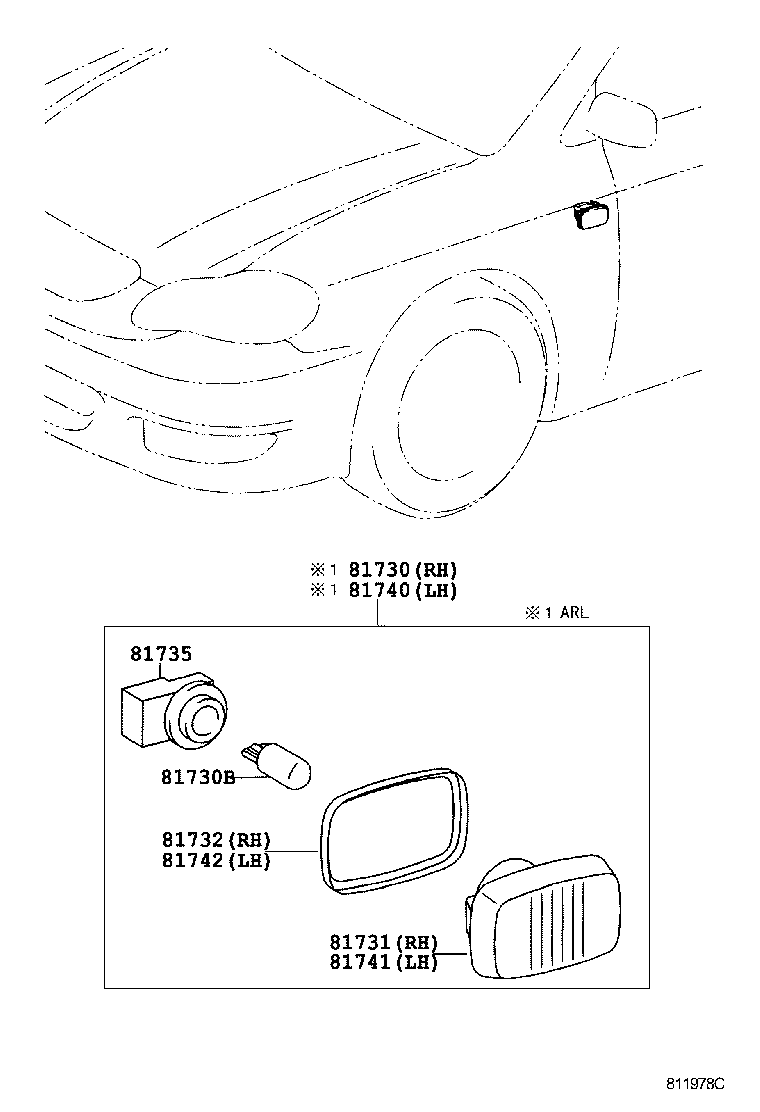

| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90080-81083 |
ZZE122..ARL 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W |
2 | ||
| 90080-81083 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W,TYPE A:REFER ILLUST. |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81732-20220 |
ZZE122..ARL |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
ZZE122..ARL |
2 | ||
| 90075-99012 |
ZZE122..ARL TYPE A:REFER ILLUST. |
2 | ||
| 90069-81005 |
ZZE122..ARL TYPE B:REFER ILLUST. |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81732-20220 |
ZZE122..ARL |
1 | ||
| 81732-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
(0209- )GCC,GEN ; (0301- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90080-81083 |
ZZE122..ARL 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W |
2 | ||
| 90080-81083 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W,TYPE A:REFER ILLUST. |
2 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90080-81083 |
ZZE122..ARL 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W |
2 | ||
| 90080-81083 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W,TYPE B:REFER ILLUST. |
2 | ||
| 90981-15012 |
ZZE122..ARL 12V 5W,TYPE A:REFER ILLUST. |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH | ||||
| 81732-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81732-20220 |
ZZE122..ARL |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
ZZE122..ARL |
2 | ||
| 90075-99012 |
ZZE122..ARL TYPE A:REFER ILLUST. |
2 | ||
| 90069-81005 |
ZZE122..ARL TYPE B:REFER ILLUST. |
2 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 90075-99012 |
ZZE122..ARL |
2 | ||
| 90075-99012 |
ZZE122..ARL TYPE A:REFER ILLUST. |
2 | ||
| 90069-81005 |
ZZE122..ARL TYPE B:REFER ILLUST. |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-20220 |
ZZE122..ARL |
1 | ||
| 81730-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81730-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81730-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81731-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 81731-20220 |
ZZE122..ARL |
1 | ||
| 81731-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
| 81731-02020 |
ZZE122..ARL TYPE B:REFER ILLUST. |
1 | ||
| 81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH | ||||
| 81732-20220 |
ZZE122..ARL |
1 | ||
| 81732-20220 |
ZZE122..ARL TYPE A:REFER ILLUST. |
1 | ||
