ZZE122R-AWPDKQ (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Sep 2006
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0209) ; (0209-0404)ULT ; (0209-0404)WG..ARL

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C 81481
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

 2
81210B - BULB, FOG LAMP
90981-13047

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

12V 51W,HALOGEN

 2
90981-13075

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,HALOGEN,PHILIPS

 2
90981-WD012

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,PHILIPS

 2
90981-13081

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,HALOGEN,OSRAM

 2
90981-WD011

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,OSRAM

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

 1
81481 - BRACKET, FOG LAMP
81481-10030

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

 2

(0404- )ARL

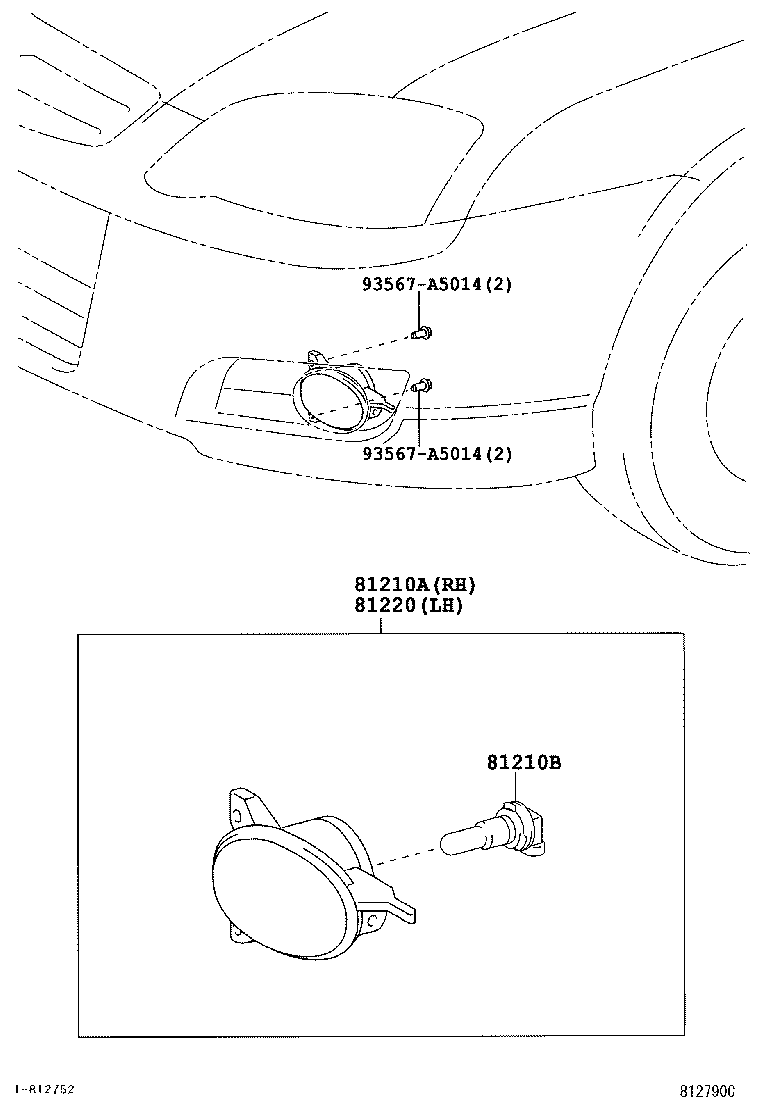

Click highlighted areas on diagram

diagram 81210A 81210B 81220 93567A5014 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02090

ZZE122..ULT;ZZE122..WG..ARL

 1
81210B - BULB, FOG LAMP
90981-13047

ZZE122..ULT;ZZE122..WG..ARL;NZE120..LHD..GLI;ZZE122..LHD..GEN

12V 51W,HALOGEN

 2
90981-13075

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,HALOGEN,PHILIPS

 2
90981-WD012

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,PHILIPS

 2
90981-13081

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,HALOGEN,OSRAM

 2
90981-WD011

ZZE122..ULT;ZZE122..WG..ARL

12V 55W,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-02090

ZZE122..ULT;ZZE122..WG..ARL

 1
Common parts
93567-A5014
