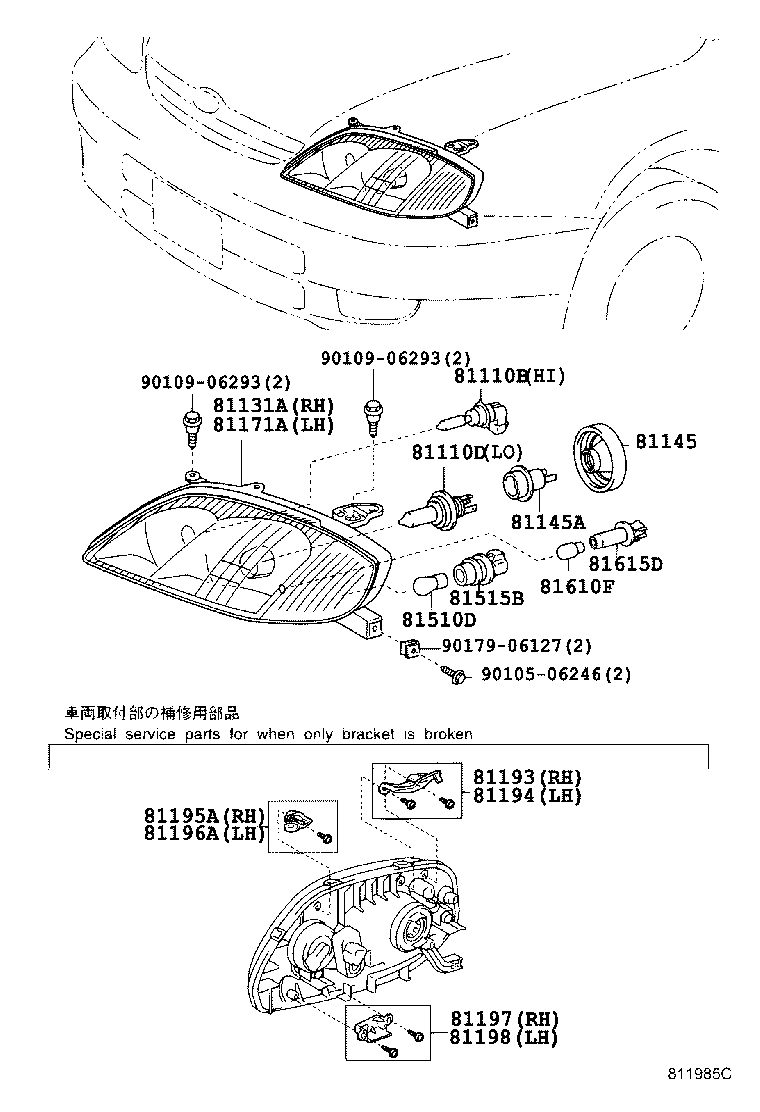

Toyota Corolla/altis sed/wg ZZE122 HEADLAMP

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81041	ZZE122..ARL 12V 65W	10/2001 - 04/2004	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063	ZZE122..ARL 12V 55W,HALOGEN	10/2001 - 04/2004	2
81131A - UNIT, HEADLAMP, RH
81130-1E690	ZZE122..ARL	10/2001 - 04/2004	1
81130-1E690	ZZE122..ARL	04/2004 - 12/2999	1
81145 - COVER, HEADLAMP, NO.2
90075-65002	ZZE122..ARL	10/2001 - 04/2004	2
81145A - ADAPTER ASSY
90075-99140	ZZE122..ARL	04/2004 - 12/2999	2
90075-99140	ZZE122..ARL	10/2001 - 04/2004	2
81171A - UNIT, HEADLAMP, LH
81170-1E560	ZZE122..ARL	10/2001 - 04/2004	1
81170-1E560	ZZE122..ARL	04/2004 - 12/2999	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81193-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 01/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009	CE120,NZE120,ZZE12#..ARL,PKN 12V 21W,AMBER	10/2001 - 07/2005	2
90981-15009	ZZE122..ARL 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE120,ZZE12#..ARL,PKN	10/2001 - 07/2005	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	ZZE122..ARL	04/2004 - 09/2005	2
90075-60077	ZZE122..ARL	10/2005 - 12/2999	2
90075-60046	ZZE122..ARL	10/2001 - 04/2004	2
Common parts
90105-06246
90109-06293
90179-06127

ZZE122R-AWPDKQ (2001)

(0110- )ARL
