ZZE122R-AWPDKQ (2001)
Toyota Corolla/Altis Sed/Wg
Production
Oct 2001
-
Sep 2006
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

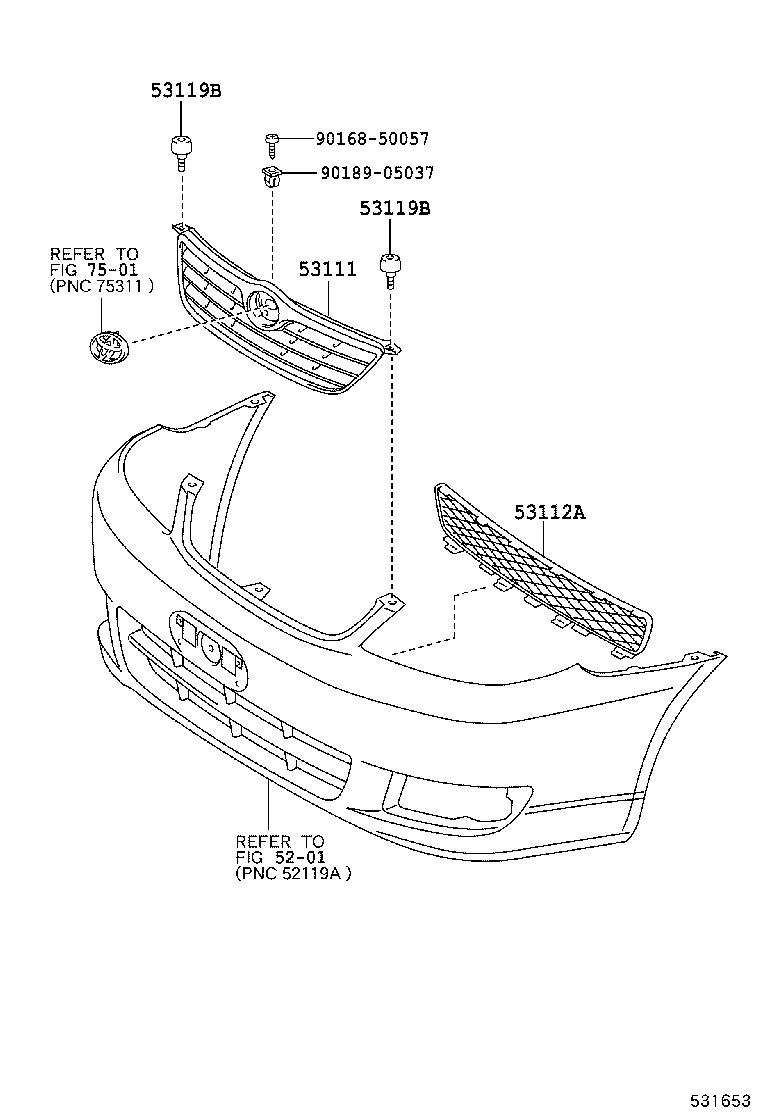

(0110-0404)ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-1A903 |
ZZE122..CONQ BLACK |
1 | ||
| 53111-1A902 |
ZZE122..ARL CHROME PLATED |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 53119-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90189-05037 | ||||
| Linked diagrams | ||||
| 7501 | ||||

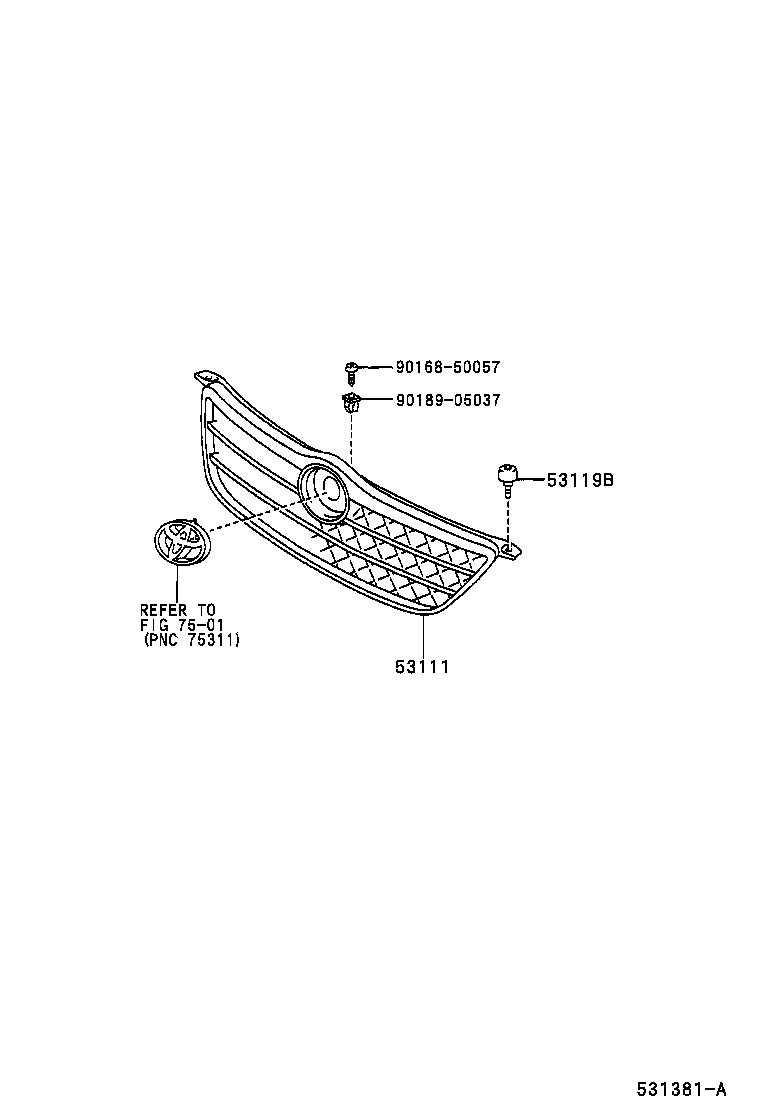

(0404- )ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-1A903 |
ZZE122..CONQ BLACK |
1 | ||
| 53111-1A902 |
ZZE122..ARL CHROME PLATED |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 53119-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 53119-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90189-05037 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
