Toyota Corolla/altis sed/wg ZZE122 FRONT BUMPER & BUMPER STAY

ZZE122R-AWPDKQ (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Sep 2006

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)ARL,GCC,GEN ; (0209-0404)ARL

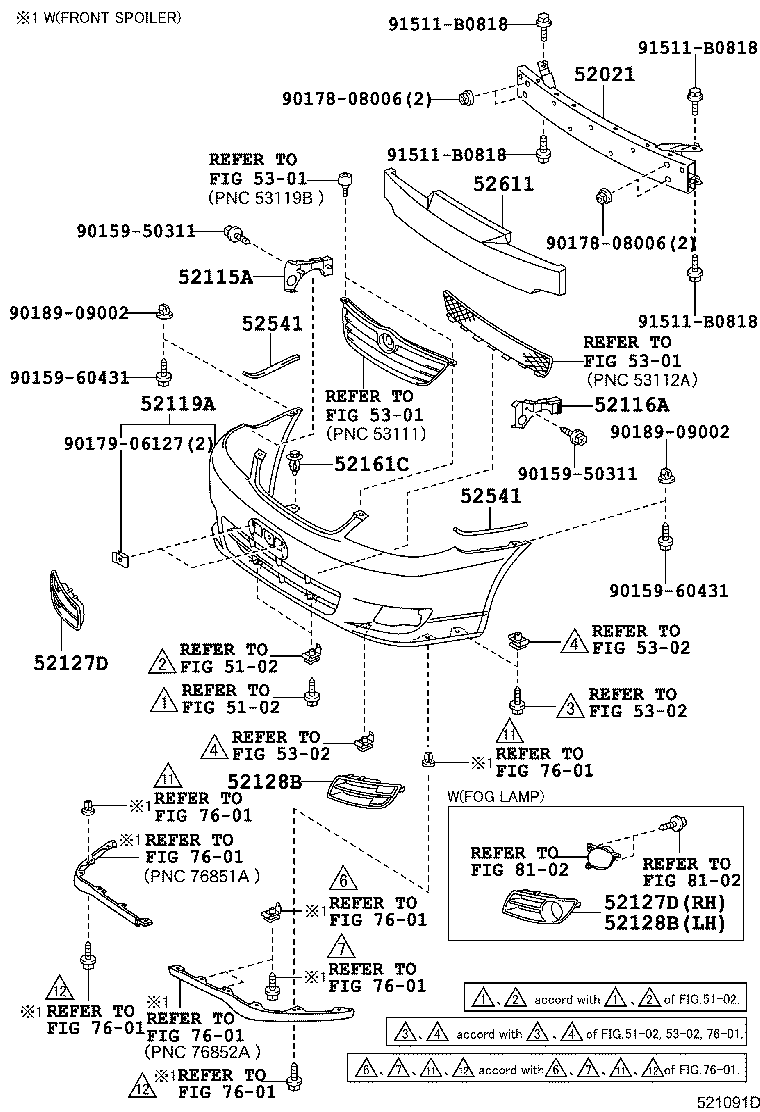

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	ZZE122..ARL	10/2001 - 04/2004	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-12110	ZZE122..ARL	10/2001 - 04/2004	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	ZZE122..ARL	04/2004 - 12/2999	1
52115-12380	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12340	ZZE122..ARL	04/2004 - 12/2999	1
52116-12340	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
52119A - COVER, FRONT BUMPER
52119-1E917	NZE12#,ZZE12#..ARL,GCC,GEN	07/2002 - 09/2002	1
52119-1E920	CE120..GEN;ZZE122..ARL W(FRONT SPOILER = TYPE B:REFER TO FIG. 76-01)	10/2001 - 04/2004	1
52119-1E917	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 07/2002	1
52119-1E917	ZZE122..ARL	09/2002 - 03/2003	1
52119-1E917	ZZE122..ULT;ZZE122..WG..ARL	03/2003 - 04/2004	1
52119-1E921	ZZE122..ARL W(FRONT SPOILER = TYPE A:REFER TO FIG. 76-01)	10/2001 - 04/2004	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52127-12170	ZZE122..ARL	09/2002 - 04/2004	1
52127-12150	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52127-12200	ZZE122..ARL	04/2004 - 12/2999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52128-12100	ZZE122..ARL	04/2004 - 12/2999	1
52128-12070	ZZE122..ARL	09/2002 - 04/2004	1
52128-12090	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	ZZE122..ARL NO.2	09/2002 - 04/2004	3
90467-09093	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1	08/2000 - 09/2002	1
90467-09093	ZZE122..ARL NO.1	09/2002 - 04/2004	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 & NO.2	06/2002 - 09/2002	3
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2	08/2000 - 06/2002	2
52161C - PIECE, FRONT BUMPER
52161-16010	ZZE122..ARL NO.2	09/2002 - 04/2004	3
90467-09093	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1	08/2000 - 09/2002	1
90467-09093	ZZE122..ARL NO.1	09/2002 - 04/2004	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 & NO.2	06/2002 - 09/2002	3
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2	08/2000 - 06/2002	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	2
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	2
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	2
Common parts
90159-50311
90159-60431
90179-06127
90179-08068
90189-09002
91511-B0818
Linked diagrams
5301
5302
7601
8102

(0404- )ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	ZZE122..ARL	10/2001 - 04/2004	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	ZZE122..ARL	04/2004 - 12/2999	1
52115-12380	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12340	ZZE122..ARL	04/2004 - 12/2999	1
52116-12340	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
52119A - COVER, FRONT BUMPER
52119-1E917	NZE12#,ZZE12#..ARL,GCC,GEN	07/2002 - 09/2002	1
52119-1E920	CE120..GEN;ZZE122..ARL W(FRONT SPOILER = TYPE B:REFER TO FIG. 76-01)	10/2001 - 04/2004	1
52119-1E917	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 07/2002	1
52119-1E917	ZZE122..ARL	09/2002 - 03/2003	1
52119-1E917	ZZE122..ULT;ZZE122..WG..ARL	03/2003 - 04/2004	1
52119-1E921	ZZE122..ARL W(FRONT SPOILER = TYPE A:REFER TO FIG. 76-01)	10/2001 - 04/2004	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52127-12170	ZZE122..ARL	09/2002 - 04/2004	1
52127-12150	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52127-12200	ZZE122..ARL	04/2004 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-12170	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52127-12170	ZZE122..ARL	09/2002 - 04/2004	1
52127-12150	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52127-12200	ZZE122..ARL	04/2004 - 12/2999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52128-12100	ZZE122..ARL	04/2004 - 12/2999	1
52128-12070	ZZE122..ARL	09/2002 - 04/2004	1
52128-12090	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 09/2002	1
52128-12100	ZZE122..ARL	04/2004 - 12/2999	1
52128-12070	ZZE122..ARL	09/2002 - 04/2004	1
52128-12090	ZZE122..ULT;ZZE122..WG..ARL W(FOG LAMP)	04/2004 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	ZZE122..ARL NO.2	09/2002 - 04/2004	3
90467-09093	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1	08/2000 - 09/2002	1
90467-09093	ZZE122..ARL NO.1	09/2002 - 04/2004	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 & NO.2	06/2002 - 09/2002	3
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
52161-16010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2	08/2000 - 06/2002	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	2
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	2
52541-12020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12170	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
Common parts
90159-50311
90159-60431
90178-08006
90179-06127
90189-09002
91511-B0818
Linked diagrams
5102
5301
5302
7601
8102
