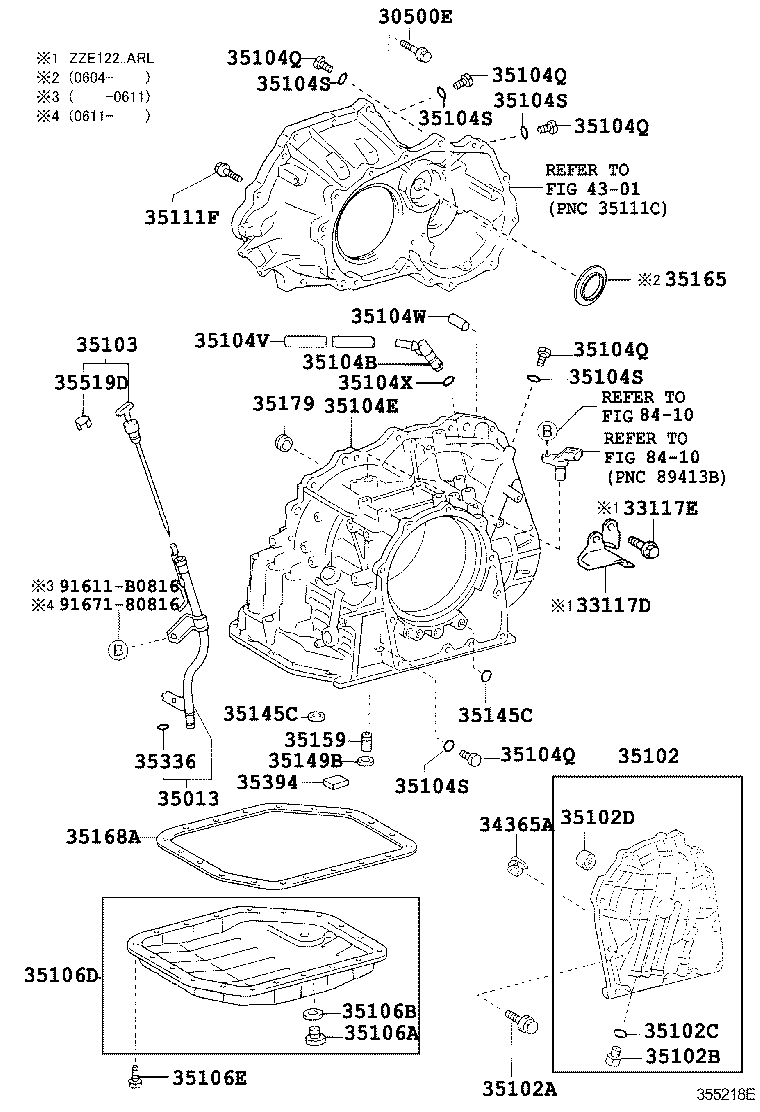

ZZE122R-AWPDKQ (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12050 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33117-12050 |
ZZE122..ATM..ARL |
1 | ||
| 33117-52030 |
ZZE122..WG..ATM..ARL |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 91641-H0820 |
ZZE122..ATM..ARL |
2 | ||
| 91651-B0820 |
ZZE122..WG..ATM..ARL |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12460 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35013-12460 |
ZZE122..ATM..ARL |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-06198 |
ZZE12#..ATM *6-1.00PX32-32 |
2 | ||
| 91511-80625 |
ZZE12#..ATM *6-1.0PX25-25 |
11 | ||
| 91511-80625 |
ZZE122..ATM..ARL *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
ZZE122..ATM..ARL *6-1.00PX32-32 |
2 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-06198 |
ZZE12#..ATM *6-1.00PX32-32 |
2 | ||
| 91511-80625 |
ZZE12#..ATM *6-1.0PX25-25 |
11 | ||
| 91511-80625 |
ZZE122..ATM..ARL *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
ZZE122..ATM..ARL *6-1.00PX32-32 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12330 |
ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| 35103-12330 |
ZZE122..ATM..ARL |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03132 |
ZZE12#..ATM |
1 | ||
| 90930-03132 |
ZZE122..ATM..ARL |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-12270 |
ZZE122..ATM..ARL |
1 | ||
| 35104-12270 |
ZZE12#..ATM |
1 | ||
| 35104-20130 |
ZZE122..ATM..ARL |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11038 |
ZZE122..ATM..ARL |
1 | ||
| 90447-11038 |
ZZE12#..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10021 |
ZZE12#..ATM |
2 | ||
| 90250-10021 |
ZZE122..ATM..ARL |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10021 |
ZZE12#..ATM |
2 | ||
| 90250-10021 |
ZZE122..ATM..ARL |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06010 |
ZZE122..ATM..ARL |
1 | ||
| 90301-06010 |
ZZE12#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
NZE120,ZZE12#..ATM |
1 | ||
| 90341-10011 |
ZZE122..ATM..ARL |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
NZE120,ZZE12#..ATM |
1 | ||
| 35178-30010 |
ZZE122..ATM..ARL |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12100 |
ZZE12#..ATM |
1 | ||
| 35106-12100 |
ZZE122..ATM..ARL |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NZE120,ZZE12#..ATM |
18 | ||
| 90119-06173 |
ZZE122..ATM..ARL |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
NZE121,ZZE12#..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
ZZE12#..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08288 |
ZZE122..ATM..ARL *8-1.28PX30-25 |
3 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
NZE121,ZZE12#..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
ZZE12#..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08288 |
ZZE122..ATM..ARL *8-1.28PX30-25 |
3 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
NZE121,ZZE12#..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
ZZE12#..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08288 |
ZZE122..ATM..ARL *8-1.28PX30-25 |
3 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-12030 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35143-12030 |
ZZE122..ATM..ARL |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN |
1 | ||
| 35148-16010 |
ZZE12#..ATM |
1 | ||
| 35148-16010 |
ZZE122..ATM..ARL |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
ZZE122..ATM..ARL |
1 | ||
| 35148-12010 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
ZZE12#..ATM |
1 | ||
| 35159-20010 |
ZZE122..ATM..ARL |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-12020 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35165-12020 |
ZZE122..ATM..ARL |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
NZE120,ZZE12#..ATM |
1 | ||
| 90105-06049 |
ZZE122..ATM..ARL |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12020 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35166-12020 |
ZZE122..ATM..ARL |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
ZZE12#..ATM |
1 | ||
| 90105-06049 |
ZZE122..ATM..ARL |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12060 |
ZZE122..ATM..ARL |
1 | ||
| 35168-12060 |
ZZE12#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-09173 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35519-20030 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 4301 | ||||
| 4302 | ||||
(0507- )ATM..PKN ; (0510- )ATM..ARL
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 90119-12168 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *12-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX55-30 |
2 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12050 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33117-12050 |
ZZE122..ATM..ARL |
1 | ||
| 33117-52030 |
ZZE122..WG..ATM..ARL |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 91641-H0820 |
ZZE122..ATM..ARL |
2 | ||
| 91651-B0820 |
ZZE122..WG..ATM..ARL |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12460 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35013-12460 |
ZZE122..ATM..ARL |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-06198 |
ZZE12#..ATM *6-1.00PX32-32 |
2 | ||
| 91511-80625 |
ZZE12#..ATM *6-1.0PX25-25 |
11 | ||
| 91511-80625 |
ZZE122..ATM..ARL *6-1.0PX25-25 |
11 | ||
| 90105-06198 |
ZZE122..ATM..ARL *6-1.00PX32-32 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12330 |
ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| 35103-12330 |
ZZE122..ATM..ARL |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03132 |
ZZE12#..ATM |
1 | ||
| 90930-03132 |
ZZE122..ATM..ARL |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-12270 |
ZZE122..ATM..ARL |
1 | ||
| 35104-12270 |
ZZE12#..ATM |
1 | ||
| 35104-20130 |
ZZE122..ATM..ARL |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE122..WG..ATM..ARL;NZE120,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90341-08001 |
ZZE122..ATM..ARL |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE122..ATM..ARL |
2 | ||
| 90301-06196 |
NZE120,ZZE12#..ATM |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11038 |
ZZE122..ATM..ARL |
1 | ||
| 90447-11038 |
ZZE12#..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10021 |
ZZE12#..ATM |
2 | ||
| 90250-10021 |
ZZE122..ATM..ARL |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06010 |
ZZE122..ATM..ARL |
1 | ||
| 90301-06010 |
ZZE12#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
NZE120,ZZE12#..ATM |
1 | ||
| 90341-10011 |
ZZE122..ATM..ARL |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
NZE120,ZZE12#..ATM |
1 | ||
| 35178-30010 |
ZZE122..ATM..ARL |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12100 |
ZZE12#..ATM |
1 | ||
| 35106-12100 |
ZZE122..ATM..ARL |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NZE120,ZZE12#..ATM |
18 | ||
| 90119-06173 |
ZZE122..ATM..ARL |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
NZE121,ZZE12#..ATM *8-1.25PX30-25 |
14 | ||
| 90105-08288 |
ZZE12#..ATM *8-1.28PX30-25 |
3 | ||
| 90105-08288 |
ZZE122..ATM..ARL *8-1.28PX30-25 |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
ZZE12#..ATM |
1 | ||
| 35159-20010 |
ZZE122..ATM..ARL |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-12020 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35165-12020 |
ZZE122..ATM..ARL |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12060 |
ZZE122..ATM..ARL |
1 | ||
| 35168-12060 |
ZZE12#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-09173 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35519-20030 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
