Toyota Corolla/altis sed/wg ZZE122 EXHAUST PIPE

ZZE122R-AWPDKQ (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Sep 2006

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0512)1NZFE..ATM..GLI ; (0008- )1NZFE..LX ; (0008- )3ZZFE..PKN ; (0008-

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22330	1ZZFE..ZZE122..ARL	10/2001 - 05/2003	1
17410-22331	1ZZFE..ZZE122..ARL	05/2003 - 04/2004	1
17410-22331	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17410B - GASKET, EXHAUST PIPE
17451-22070	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 04/2004	1
17451-22070	1ZZFE..ZZE122..WG..ARL;1ZZFE,3ZZFE..ZZE12#..GCC,GEN	04/2004 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22170	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 05/2003	1
17430-22172	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	05/2003 - 04/2004	1
17430-22172	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17451 - GASKET, EXHAUST PIPE
17451-16030	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 04/2004	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565-21040	1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565-21040	1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
Common parts
90109-T0005
90501-35035
90501-35037
90901-05020
90901-05026
90901-05031

(0110- )1ZZFE..ARL

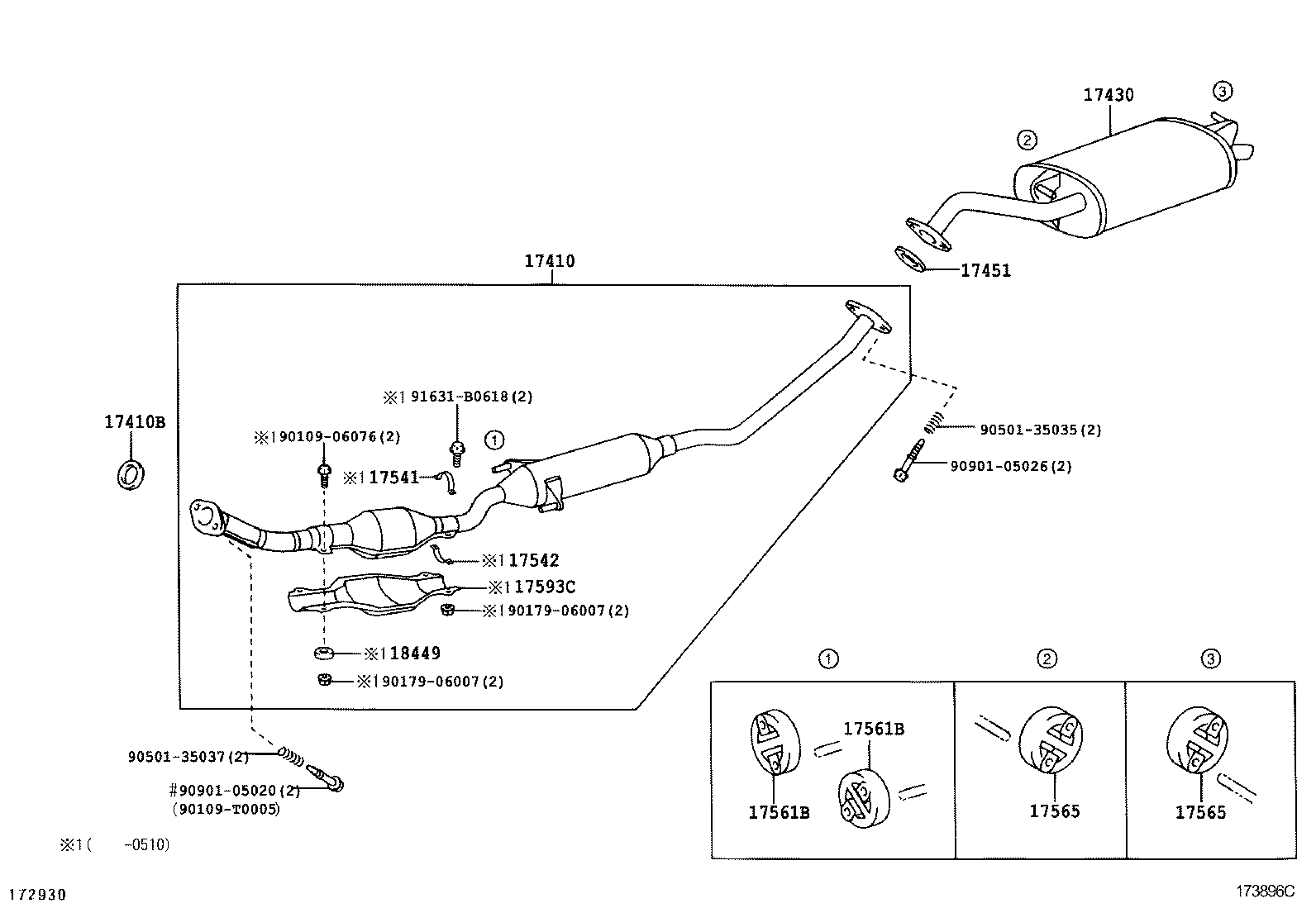

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22330	1ZZFE..ZZE122..ARL	10/2001 - 05/2003	1
17410-22331	1ZZFE..ZZE122..ARL	05/2003 - 04/2004	1
17410-22331	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17410B - GASKET, EXHAUST PIPE
17451-22070	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 04/2004	1
17451-22070	1ZZFE..ZZE122..WG..ARL;1ZZFE,3ZZFE..ZZE12#..GCC,GEN	04/2004 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22170	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 05/2003	1
17430-22172	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	05/2003 - 04/2004	1
17430-22172	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17451 - GASKET, EXHAUST PIPE
17451-16030	1ZZFE..ZZE122..ARL;1ZZFE..ZZE122..LHD..GEN	08/2000 - 04/2004	1
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-42010	1ZZFE..ZZE122..ARL	06/2003 - 04/2004	1
17541-42010	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17542-42010	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
17542-42010	1ZZFE..ZZE122..ARL	06/2003 - 04/2004	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-21030	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565-21040	1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-21040	1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
17565-21040	1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-22020	1ZZFE..ZZE122..ARL	10/2001 - 04/2004	1
17593-22020	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	1
18449 - SPACER, CONVERTER PROTECTOR
18449-74010	1ZZFE..ZZE122..ARL	10/2001 - 04/2004	2
18449-74010	1ZZFE..ZZE122..ARL	04/2004 - 10/2005	2
Common parts
90109-06076
90109-T0005
90179-06007
90501-35035
90501-35037
90901-05020
90901-05026
91631-B0618

ZZE122R-AWPDKQ (2001)

(0008-0512)1NZFE..ATM..GLI ; (0008- )1NZFE..LX ; (0008- )3ZZFE..PKN ; (0008-

(0110- )1ZZFE..ARL
