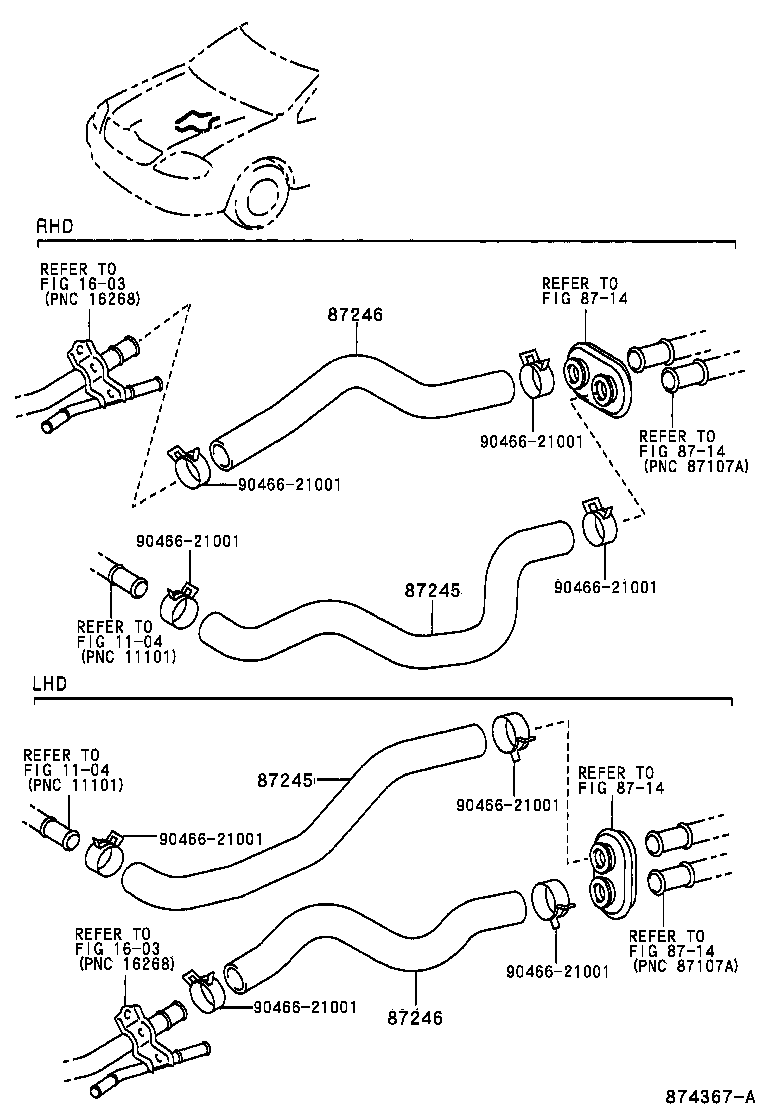

Toyota Corolla/altis sed/wg ZZE122 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87245 - HOSE, HEATER WATER, INLET
87245-1E150	ZZE122	08/2000 - 10/2001	1
87245-1E071	ZZE12#..RHD..GEN	10/2001 - 09/2002	1
87245-1E071	ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87245-1E071	ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2006	1
87245-1E072	ZZE12#..RHD..(ARL,GEN)	09/2006 - 08/2007	1
87245 - HOSE, HEATER WATER, INLET
87245-1E150	ZZE122	08/2000 - 10/2001	1
87245-1E071	ZZE12#..RHD..GEN	10/2001 - 09/2002	1
87245-1E071	ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87245-1E071	ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2006	1
87245-1E072	ZZE12#..RHD..(ARL,GEN)	09/2006 - 08/2007	1
87246 - HOSE, HEATER WATER, OUTLET
87245-1E080	ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87245-1E080	ZZE12#..RHD..GEN	08/2000 - 09/2002	1
87245-1E080	ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2006	1
87245-1E081	ZZE12#..RHD..(ARL,GEN)	09/2006 - 08/2007	1
87246 - HOSE, HEATER WATER, OUTLET
87245-1E080	ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87245-1E080	ZZE12#..RHD..GEN	08/2000 - 09/2002	1
87245-1E080	ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2006	1
87245-1E081	ZZE12#..RHD..(ARL,GEN)	09/2006 - 08/2007	1
Common parts
90466-21001
Linked diagrams
1104
1603
8714

ZZE122R-AEMNK (2001)
