Toyota Corolla/altis sed/wg ZZE122 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA/ALTIS SED/WG
ZZE122R-AEMNK (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

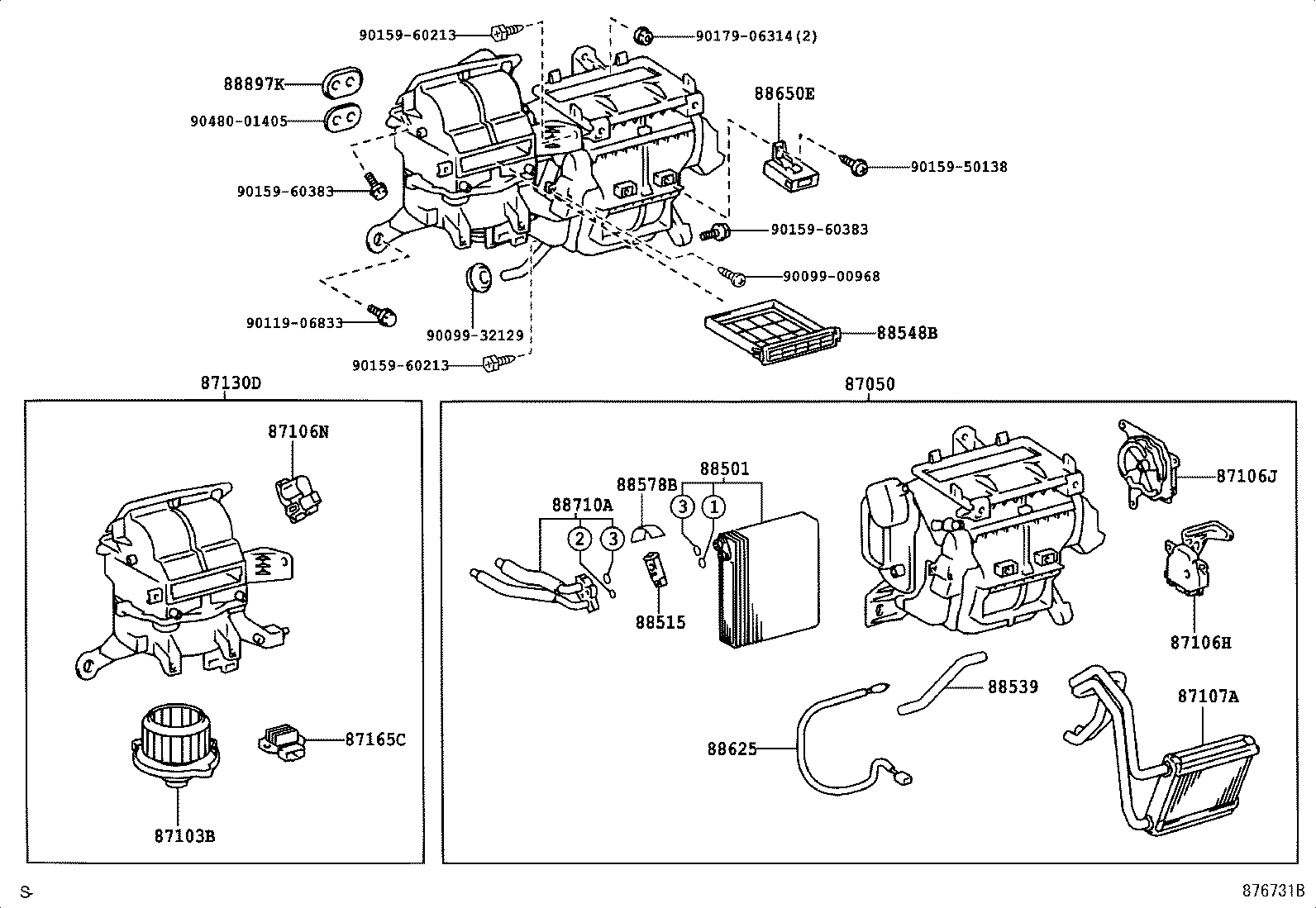

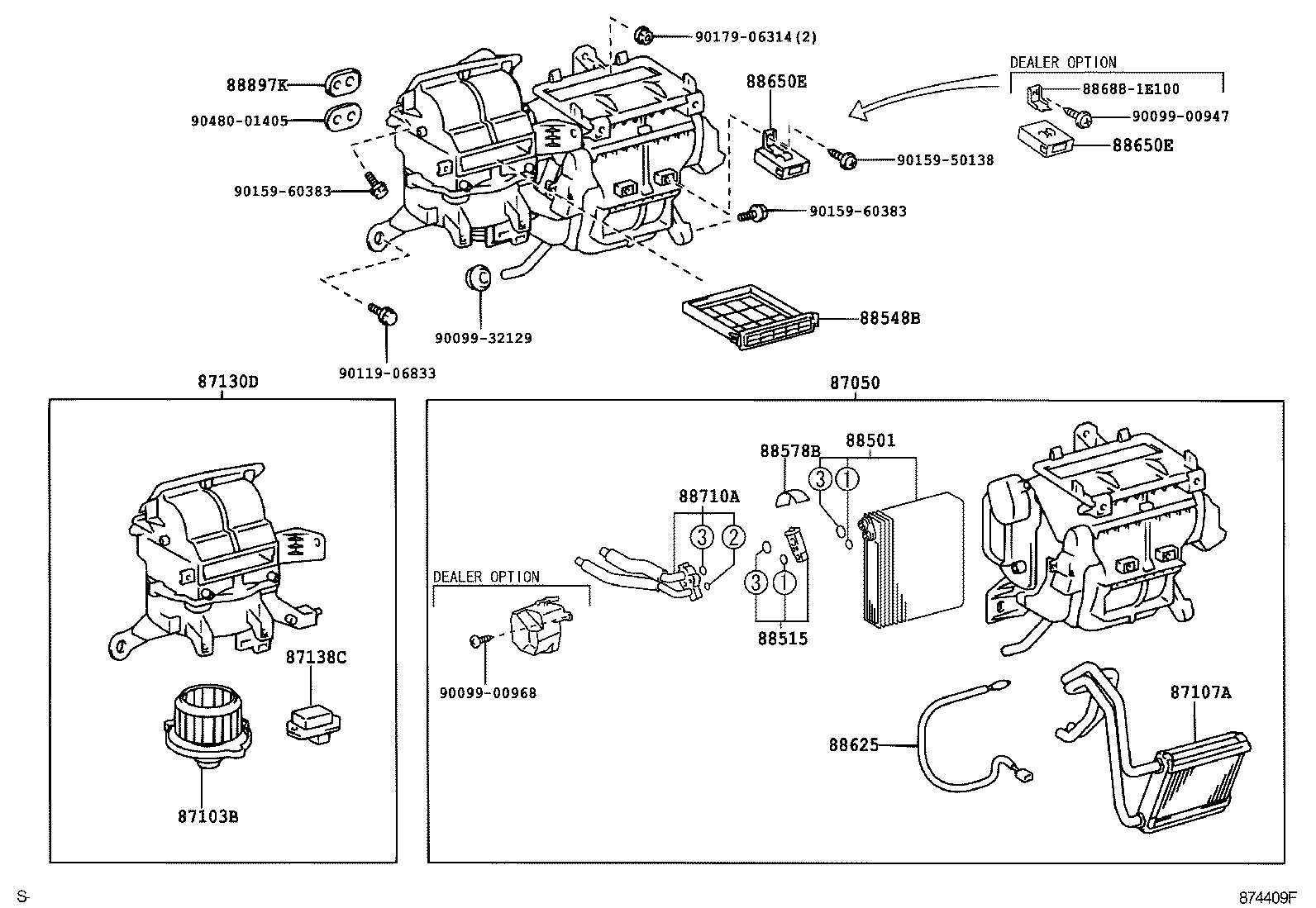

ILLUST NO. 1 OF 2(0008-0404)RHD ; (0404- )PKN

Click highlighted areas on diagram

W(HEATER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..(ARL,GEN) MANUAL AIR CONDITIONER & W/O(COOLER)	10/2001 - 04/2004	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) MANUAL AIR CONDITIONER	08/2000 - 04/2004	1
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	09/2002 - 04/2004	1
87050-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	04/2004 - 12/2999	1
87050-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	04/2004 - 12/2999	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	09/2002 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12540	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87107-12550	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87107-12550	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-20350	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87138-20350	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87138-20350	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88501-12440	ZZE122..RHD..GEN;NZE120,ZZE121..RHD..(GLI,LX)..GEN DEALER OPTION	04/2004 - 12/2999	1
88501-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 01/2003	1
88515-48040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88515-28160	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	08/2003 - 04/2004	1
88515-27020	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	02/2003 - 08/2003	1
88515-28160	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	1
88578-12520	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578-12520	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..(ARL,GEN) DEALER OPTION	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625-21010	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	ZZE122..WG..ARL;NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88710-12730	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88710-12540	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88710-12540	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CE120,NZE12#,ZZE12#..ARL,GCC,GEN MAKER OPTION	08/2000 - 04/2004	1
90480-01434	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88897-12240	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88897-12240	NZE120,ZZE12#..RHD..GEN DEALER OPTION	08/2000 - 09/2002	1
88897-12240	NZE12#,ZZE12#..RHD..GEN DEALER OPTION	09/2002 - 04/2004	1
90480-01434	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
88688-1E100
90099-00947
90099-00968
90099-32129
90119-06833
90159-50138
90159-60383
90179-06314
90480-01405

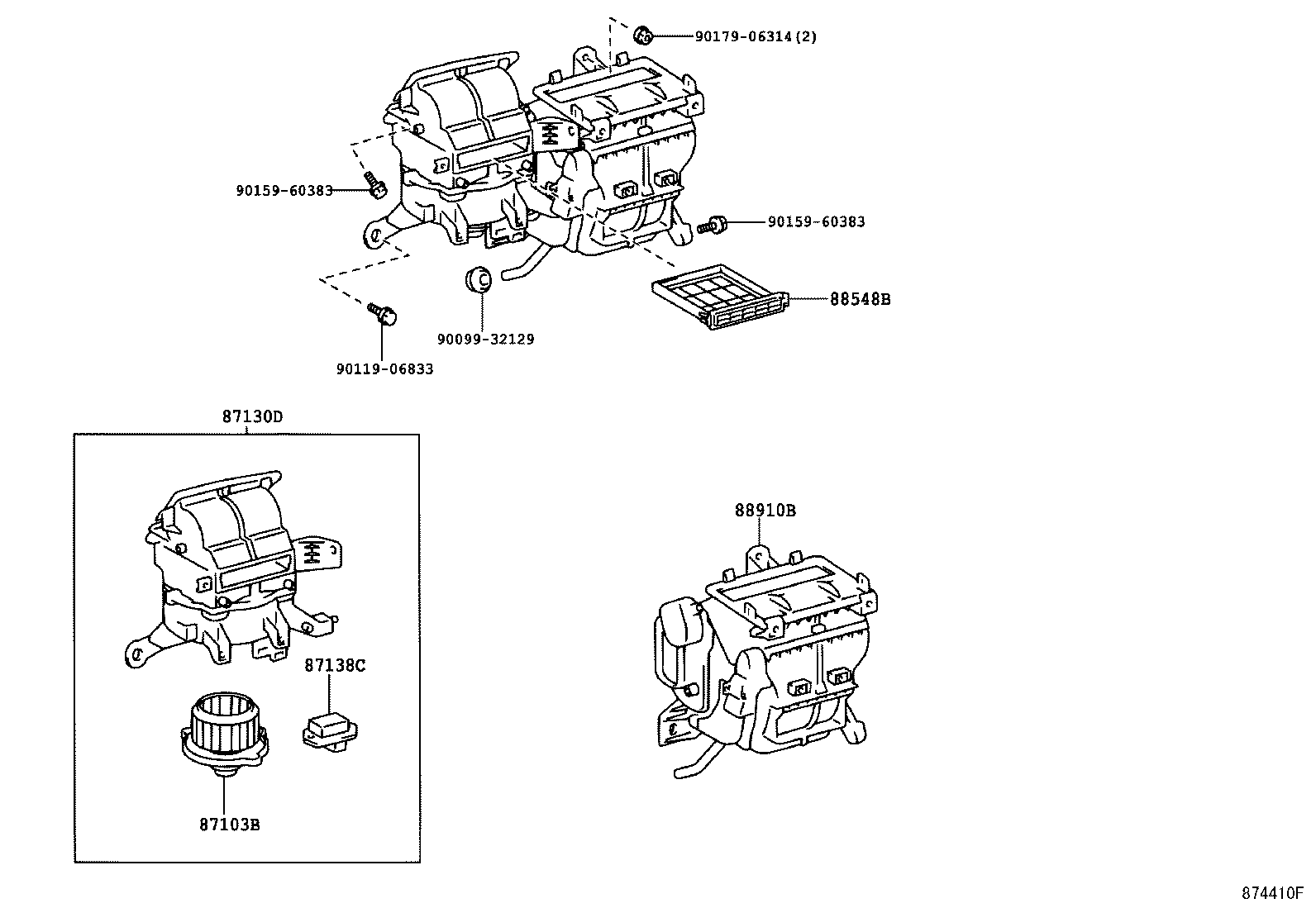

ILLUST NO. 1 OF 2(0008-0404)RHD

Click highlighted areas on diagram

W(BOOST VENTILATOR)

Part #	Description	Period	Qty
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-20350	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87138-20350	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87138-20350	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88910B - VENTILATOR ASSY, BOOST
88910-12230	CE120,NZE12#,ZZE12#..RHD..GEN W/O(COOLER)	08/2000 - 09/2002	1
88910-12230	NZE12#,ZZE12#..RHD..GEN W/O(COOLER)	09/2002 - 04/2004	1
88910-12160	ZZE122..RHD..GEN;NZE120..RHD..GLI..GEN W(COOLER)	04/2004 - 12/2999	1
88910-12130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN W(COOLER)	10/2001 - 09/2002	1
88910-12130	ZZE122..RHD..GEN;NZE120..RHD..GLI..GEN W(COOLER)	09/2002 - 04/2004	1
88910-12170	NZE12#,ZZE12#..RHD..GEN W/O(COOLER)	04/2004 - 12/2999	1
Common parts
90099-32129
90119-06833
90159-60383
90179-06314

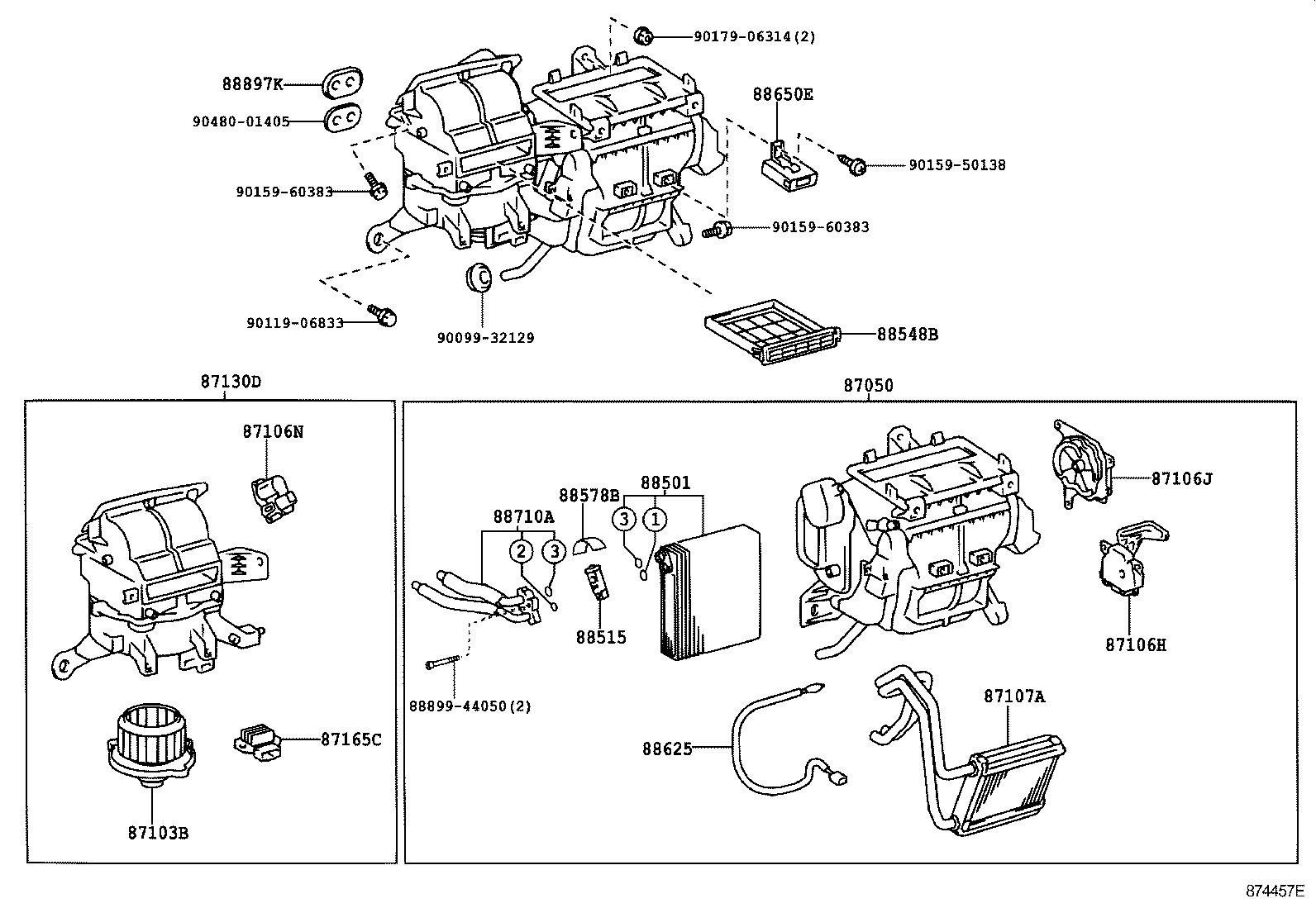

ILLUST NO. 1 OF 2(0008-0404)RHD

Click highlighted areas on diagram

W(HEATER & AUTO AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..(ARL,GEN) MANUAL AIR CONDITIONER & W/O(COOLER)	10/2001 - 04/2004	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) MANUAL AIR CONDITIONER	08/2000 - 04/2004	1
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	09/2002 - 04/2004	1
87050-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	04/2004 - 12/2999	1
87050-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	04/2004 - 12/2999	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	09/2002 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12540	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87107-12550	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87107-12550	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88501-12440	ZZE122..RHD..GEN;NZE120,ZZE121..RHD..(GLI,LX)..GEN DEALER OPTION	04/2004 - 12/2999	1
88501-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 01/2003	1
88515-48040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88515-28160	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	08/2003 - 04/2004	1
88515-27020	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	02/2003 - 08/2003	1
88515-28160	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	1
88578-12520	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578-12520	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..(ARL,GEN) DEALER OPTION	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625-21010	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	ZZE122..WG..ARL;NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88710-12730	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88710-12540	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88710-12540	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CE120,NZE12#,ZZE12#..ARL,GCC,GEN MAKER OPTION	08/2000 - 04/2004	1
90480-01434	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88897-12240	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88897-12240	NZE120,ZZE12#..RHD..GEN DEALER OPTION	08/2000 - 09/2002	1
88897-12240	NZE12#,ZZE12#..RHD..GEN DEALER OPTION	09/2002 - 04/2004	1
90480-01434	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
88899-44050
90099-32129
90119-06833
90159-50138
90159-60383
90179-06314
90480-01405

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

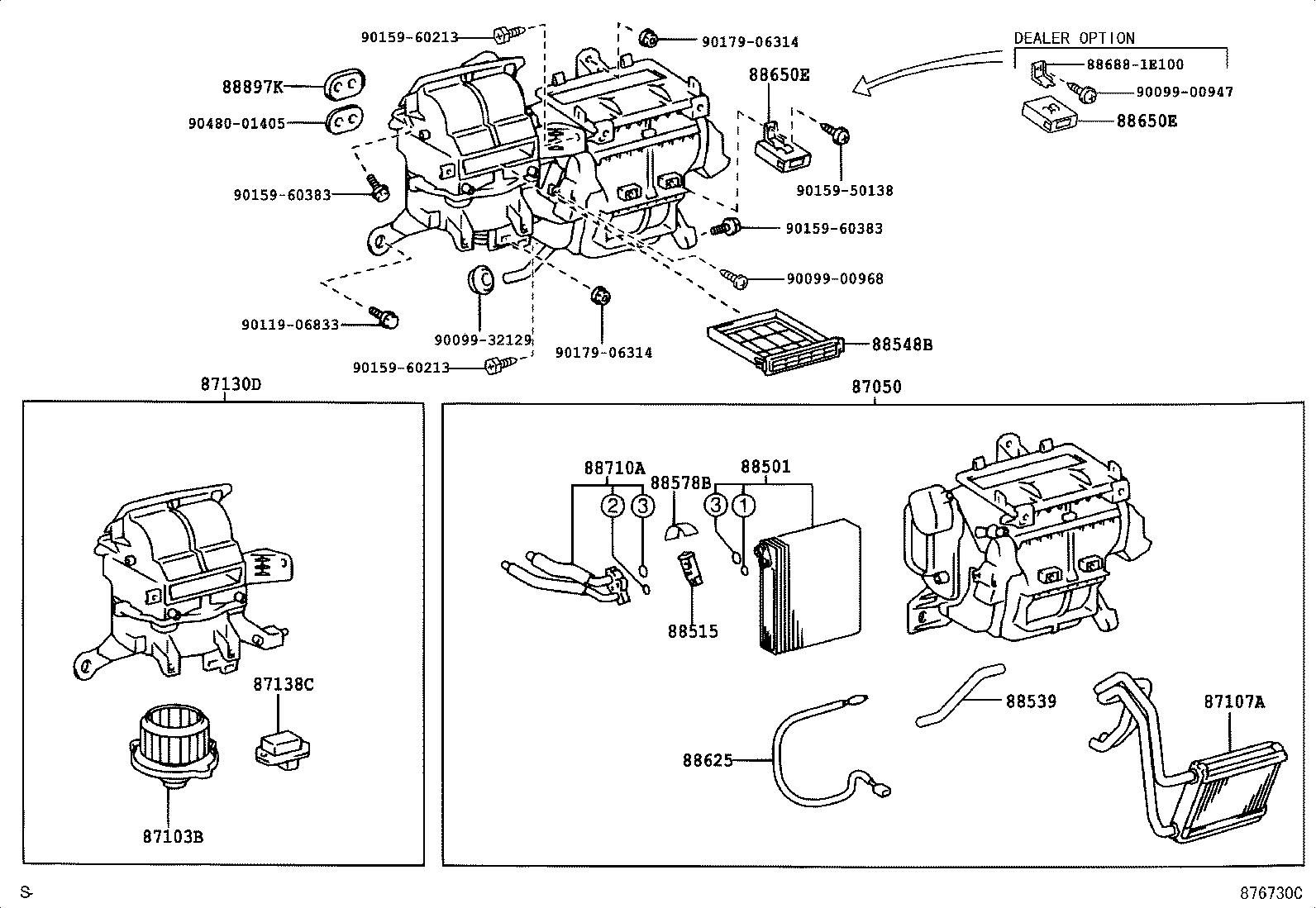

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

Click highlighted areas on diagram

W(HEATER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..(ARL,GEN) MANUAL AIR CONDITIONER & W/O(COOLER)	10/2001 - 04/2004	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) MANUAL AIR CONDITIONER	08/2000 - 04/2004	1
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	09/2002 - 04/2004	1
87050-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	04/2004 - 12/2999	1
87050-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	04/2004 - 12/2999	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	09/2002 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12540	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87107-12550	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87107-12550	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-20350	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87138-20350	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87138-20350	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88501-12440	ZZE122..RHD..GEN;NZE120,ZZE121..RHD..(GLI,LX)..GEN DEALER OPTION	04/2004 - 12/2999	1
88501-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 01/2003	1
88515-48040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88515-28160	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	08/2003 - 04/2004	1
88515-27020	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	02/2003 - 08/2003	1
88515-28160	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	1
88578-12520	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578-12520	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..(ARL,GEN) DEALER OPTION	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625-21010	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	ZZE122..WG..ARL;NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88710-12730	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88710-12540	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88710-12540	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CE120,NZE12#,ZZE12#..ARL,GCC,GEN MAKER OPTION	08/2000 - 04/2004	1
90480-01434	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88897-12240	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88897-12240	NZE120,ZZE12#..RHD..GEN DEALER OPTION	08/2000 - 09/2002	1
88897-12240	NZE12#,ZZE12#..RHD..GEN DEALER OPTION	09/2002 - 04/2004	1
90480-01434	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
88688-1E100
90099-00947
90099-00968
90099-32129
90119-06833
90159-50138
90159-60213
90159-60383
90179-06314
90480-01405

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

Click highlighted areas on diagram

W(HEATER & AUTO AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..(ARL,GEN) MANUAL AIR CONDITIONER & W/O(COOLER)	10/2001 - 04/2004	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) MANUAL AIR CONDITIONER	08/2000 - 04/2004	1
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	09/2002 - 04/2004	1
87050-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	04/2004 - 12/2999	1
87050-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	04/2004 - 12/2999	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	09/2002 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12540	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87107-12550	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87107-12550	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88501-12440	ZZE122..RHD..GEN;NZE120,ZZE121..RHD..(GLI,LX)..GEN DEALER OPTION	04/2004 - 12/2999	1
88501-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 01/2003	1
88515-48040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88515-28160	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	08/2003 - 04/2004	1
88515-27020	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	02/2003 - 08/2003	1
88515-28160	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	1
88578-12520	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578-12520	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..(ARL,GEN) DEALER OPTION	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625-21010	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E420	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN W(HEATER)	08/2000 - 09/2002	1
88650-1E420	ZZE12#..ARL,GCC,GEN W(HEATER)	04/2004 - 08/2007	1
88650-1E450	ZZE121..GEN;ZZE122..RHD..GEN	08/2000 - 09/2002	1
88650-1E450	ZZE12#..GEN	04/2004 - 08/2007	1
88650-1E390	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 08/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	ZZE122..WG..ARL;NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88710-12730	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88710-12540	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88710-12540	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CE120,NZE12#,ZZE12#..ARL,GCC,GEN MAKER OPTION	08/2000 - 04/2004	1
90480-01434	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88897-12240	ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88897-12240	NZE120,ZZE12#..RHD..GEN DEALER OPTION	08/2000 - 09/2002	1
88897-12240	NZE12#,ZZE12#..RHD..GEN DEALER OPTION	09/2002 - 04/2004	1
90480-01434	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
90099-00968
90099-32129
90119-06833
90159-50138
90159-60213
90159-60383
90179-06314
90480-01405

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

Click highlighted areas on diagram

W(BOOST VENTILATOR)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..(ARL,GEN) MANUAL AIR CONDITIONER & W/O(COOLER)	10/2001 - 04/2004	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) MANUAL AIR CONDITIONER	08/2000 - 04/2004	1
87050-13130	NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	09/2002 - 04/2004	1
87050-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER & W/O(COOLER)	04/2004 - 12/2999	1
87050-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	04/2004 - 12/2999	1
87050-12220	CE120,NZE12#,ZZE12#..RHD..GEN MANUAL AIR CONDITIONER	09/2002 - 04/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87103-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87103-12050	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130D - BLOWER ASSY
87130-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87130-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87130-12440	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-20350	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
87138-20350	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
87138-20350	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
88501-12440	ZZE122..RHD..GEN;NZE120,ZZE121..RHD..(GLI,LX)..GEN DEALER OPTION	04/2004 - 12/2999	1
88501-12440	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 01/2003	1
88515-48040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88515-28160	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	08/2003 - 04/2004	1
88515-27020	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	02/2003 - 08/2003	1
88515-28160	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88548B - CASE, AIR FILTER
88548-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88548-52010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	1
88578-12520	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
88578-12520	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..(ARL,GEN) DEALER OPTION	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
88625-21010	CE120,NZE12#,ZZE12#..RHD..(ARL,GEN)	04/2004 - 08/2007	1
88625-60140	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	ZZE122..WG..ARL;NZE120..RHD..GLI..GEN;CE120,ZZE12#..RHD..GEN DEALER OPTION	04/2004 - 12/2999	1
88710-12730	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
88710-12540	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
88710-12540	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
Common parts
90099-00968
90099-32129
90119-06833
90159-60213
90159-60383
90179-06314

ZZE122R-AEMNK (2001)

ILLUST NO. 1 OF 2(0008-0404)RHD ; (0404- )PKN

ILLUST NO. 1 OF 2(0008-0404)RHD

ILLUST NO. 1 OF 2(0008-0404)RHD

ILLUST NO. 2 OF 2(0008- )

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

ILLUST NO. 1 OF 2(0404- )RHD..ARL,GEN

Part Price Details
