Toyota Corolla/altis sed/wg ZZE122 WIRELESS DOOR LOCK

ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

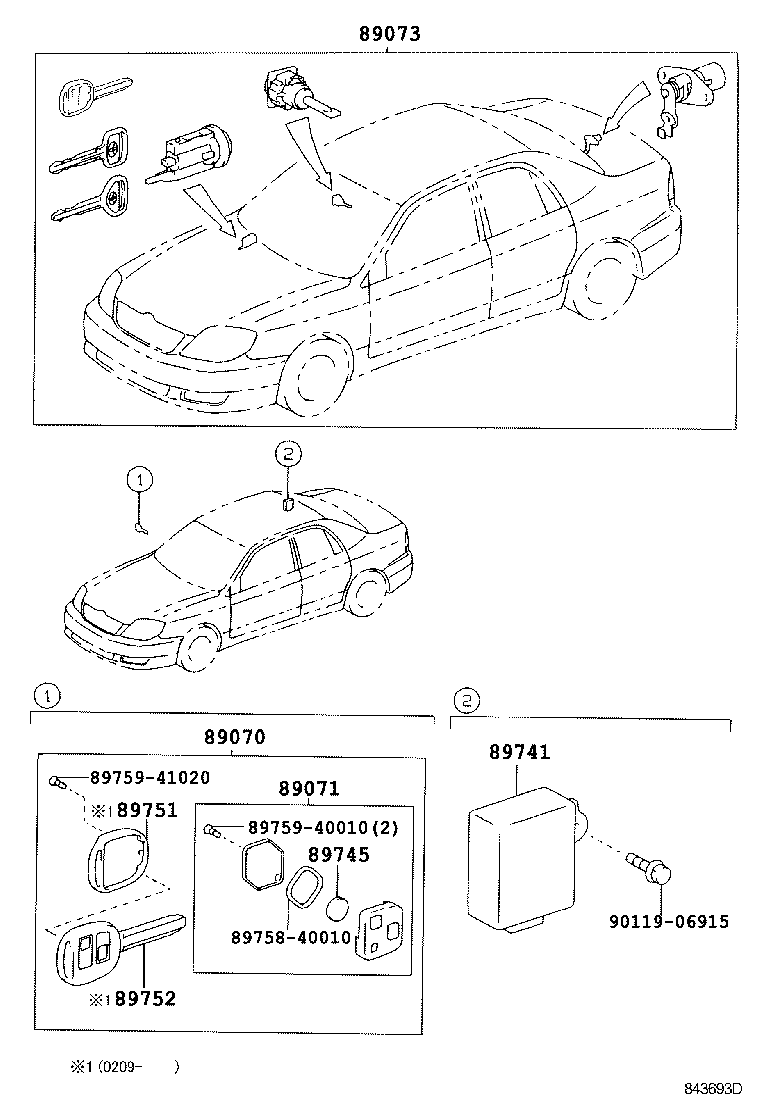

(0008- )

Click highlighted areas on diagram

W/O(IMMOBILIZER)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN	10/2001 - 09/2002	1
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	09/2002 - 04/2004	1
89070-12050	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN W/O(IMMOBILIZER)	08/2000 - 04/2004	1
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	04/2004 - 04/2006	1
89070-13031	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	05/2006 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33080	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN W/O(IMMOBILIZER)	08/2000 - 09/2002	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN	10/2001 - 09/2002	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	09/2002 - 04/2004	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	05/2006 - 12/2999	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	04/2004 - 04/2006	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-12260	CE120,NZE12#,ZZE12#..RHD..SED..GEN W/O(IMMOBILIZER)	08/2000 - 09/2002	1
89073-12450	NZE120,ZZE122..RHD..SED..GEN	10/2001 - 09/2002	1
69005-1E740	NZE120,ZZE122..RHD..SED..GEN	09/2002 - 04/2004	1
69005-12A20	NZE120,ZZE122..RHD..SED..GEN W(LUGGAGE DOOR GARNISH = COLOR & PLATING)	04/2004 - 04/2006	1
69005-1E740	NZE120,ZZE122..RHD..SED..GEN	04/2004 - 04/2006	1
69005-1E741	NZE120,ZZE122..RHD..SED..GEN	05/2006 - 12/2999	1
69005-12A21	NZE120,ZZE122..RHD..SED..GEN W(LUGGAGE DOOR GARNISH = COLOR & PLATING)	05/2006 - 12/2999	1
89741 - RECEIVER, DOOR CONTROL
89741-12230	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
89741-12230	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
89741-12230	CE120,NZE12#,ZZE12#..GEN	05/2006 - 12/2999	1
89741-12230	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..GEN	04/2004 - 04/2006	1
89745 - BATTERY, TRANSMITTER
89745-40010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
89745-40010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89745-40010	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
89751 - COVER, TRANSMITTER HOUSING
89751-44040	CE120,NZE12#,ZZE12#..GEN	04/2004 - 04/2006	1
89751-44040	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
89751-44041	CE120,NZE12#,ZZE12#..GEN	05/2006 - 12/2999	1
89752 - CASE, TRANSMITTER HOUSING
89752-13020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89752-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
Common parts
89758-40010
89759-40010
89759-41020
90119-06915

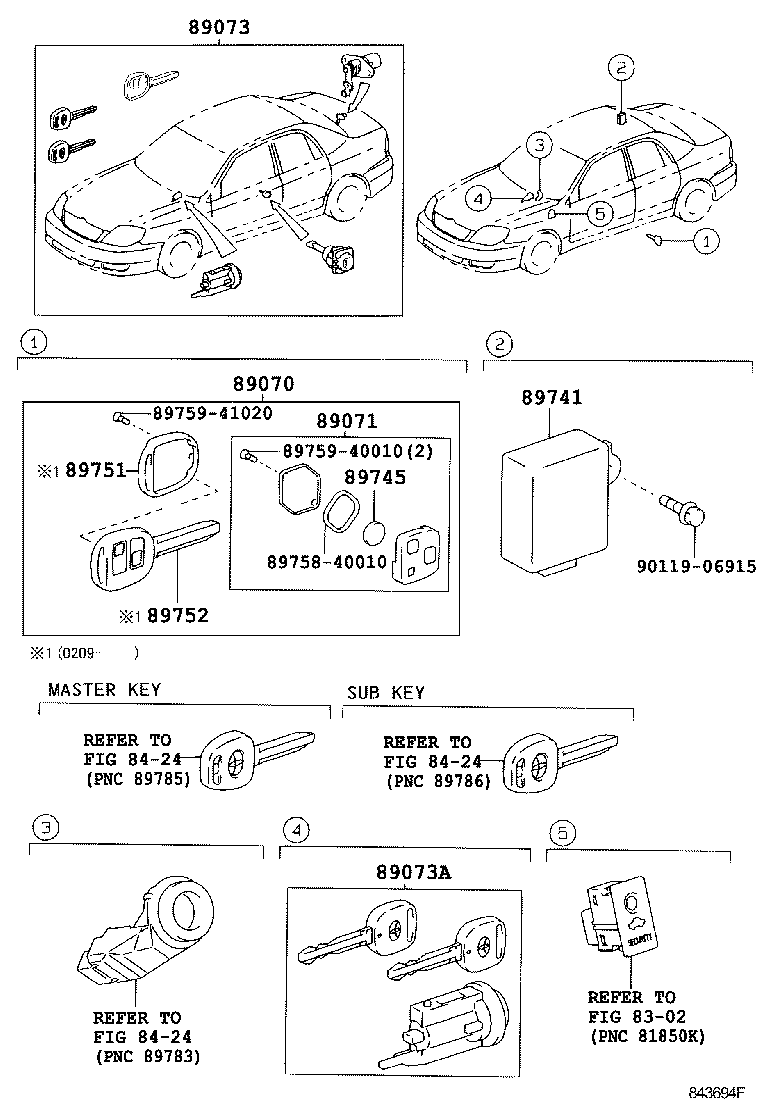

(0008- )

Click highlighted areas on diagram

W(IMMOBILIZER)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN	10/2001 - 09/2002	1
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	09/2002 - 04/2004	1
89070-12050	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN W/O(IMMOBILIZER)	08/2000 - 04/2004	1
89070-13030	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	04/2004 - 04/2006	1
89070-13031	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	05/2006 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33080	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN W/O(IMMOBILIZER)	08/2000 - 09/2002	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN	10/2001 - 09/2002	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	09/2002 - 04/2004	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	05/2006 - 12/2999	1
89071-33070	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN W(IMMOBILIZER)	04/2004 - 04/2006	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-12260	CE120,NZE12#,ZZE12#..RHD..SED..GEN W/O(IMMOBILIZER)	08/2000 - 09/2002	1
89073-12450	NZE120,ZZE122..RHD..SED..GEN	10/2001 - 09/2002	1
69005-1E740	NZE120,ZZE122..RHD..SED..GEN	09/2002 - 04/2004	1
69005-12A20	NZE120,ZZE122..RHD..SED..GEN W(LUGGAGE DOOR GARNISH = COLOR & PLATING)	04/2004 - 04/2006	1
69005-1E740	NZE120,ZZE122..RHD..SED..GEN	04/2004 - 04/2006	1
69005-1E741	NZE120,ZZE122..RHD..SED..GEN	05/2006 - 12/2999	1
69005-12A21	NZE120,ZZE122..RHD..SED..GEN W(LUGGAGE DOOR GARNISH = COLOR & PLATING)	05/2006 - 12/2999	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-12350	ZZE121..LHD..ATM..LX;NZE120,ZZE122..RHD..GEN	10/2001 - 09/2002	1
89741 - RECEIVER, DOOR CONTROL
89741-12230	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
89741-12230	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
89741-12230	CE120,NZE12#,ZZE12#..GEN	05/2006 - 12/2999	1
89741-12230	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..GEN	04/2004 - 04/2006	1
89745 - BATTERY, TRANSMITTER
89745-40010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
89745-40010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89745-40010	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
89751 - COVER, TRANSMITTER HOUSING
89751-44040	CE120,NZE12#,ZZE12#..GEN	04/2004 - 04/2006	1
89751-44040	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
89751-44041	CE120,NZE12#,ZZE12#..GEN	05/2006 - 12/2999	1
89752 - CASE, TRANSMITTER HOUSING
89752-13020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89752-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
Common parts
89758-40010
89759-40010
89759-41020
90119-06915
